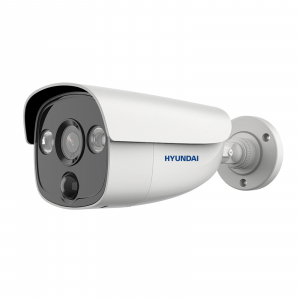

HYU-776 Hyundai PRO 4 in 1 bullet video surveillance camera with 40m smart IR illuminator for outdoors, 2MP CMOS sensor, 2MP 1080P resolution and 2.8mm fixed lens. 4 Technologies in 1 HDTVI / HDCVI / AHD / ANALOG CVBS , ICR, Incorporates PIR sensor, IP67 protection. Hyundai Security HYU-776



Reference: HYU-776

Brand: Hyundai Security

EAN: 2123456790047

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

Hyundai Security

4 IN1 HYUNDAI 2 MEGAPIXEL 2.8MM BULLET CAMERA - HDTVI / HDCVI / AHD / CVBS - PIR - HYUNDAI

Hyundai Security HYU-776 Hyundai 4 in 1 Bullet Outdoor Camera
Quadrabrida "HDTVI / HDCVI / AHD / ANALOG CVBS" - Resolution 2 MP - 2.8mm Optic - PIR
Smart IR 40 M Illuminator with EXIR 2.0 Technology - ICR Filter - Movement on 3 axes
Extended Warranty 3 Years Hyundai! - IP67 protection (rain / dust)

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our site?

Don't worry, we can supply ALL Hyundai products: consult the CATALOG or contact us by email.

4 tecnologie in 1

4 TECHNOLOGIES IN 1:

This camera features 4 technologies in 1 : interchangeable HDTVI / HDCVI / AHD / 960H (ANALOG).

Tecnologia HDTVITecnologia HDCVITecnologia AHD

Risoluzione 2Mpx

This camera has a resolution of 2Megapixel 1080P

2 Megapixel CMOS sensor

Ottica fissa This camera is equipped with a 2.8mm fixed lens

Illuminatore IR 20 MT

Tecnologia EXIR

Smart IR illuminator with EXIR 2.0 Technology.

Maximum range 40 meters



EXIR 2.0 TECHNOLOGY

This technology remedies the classic ailments of the traditional IR illuminator .



In detail:

1) NO IR REFLECTION OR BLEEDING:

Having the IR LEDs positioned separately from the camera lens, the possible internal reflections of IR and IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome, are completely eliminated.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDs around the lens.

This often resulted in a circular area overexposed to the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) LESS PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the warmer IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with flat-faced EXIR cameras, on which the contact surfaces are clearly smaller.



Tecnologia EXIR 2.0

Audio bidirezionale

This camera features bidirectional audio

Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter

Protezione IP66 contro polvere e getti d'acqua IP66: Guarantees protection from dust and water jets (rain)
Movimento su 3 assi

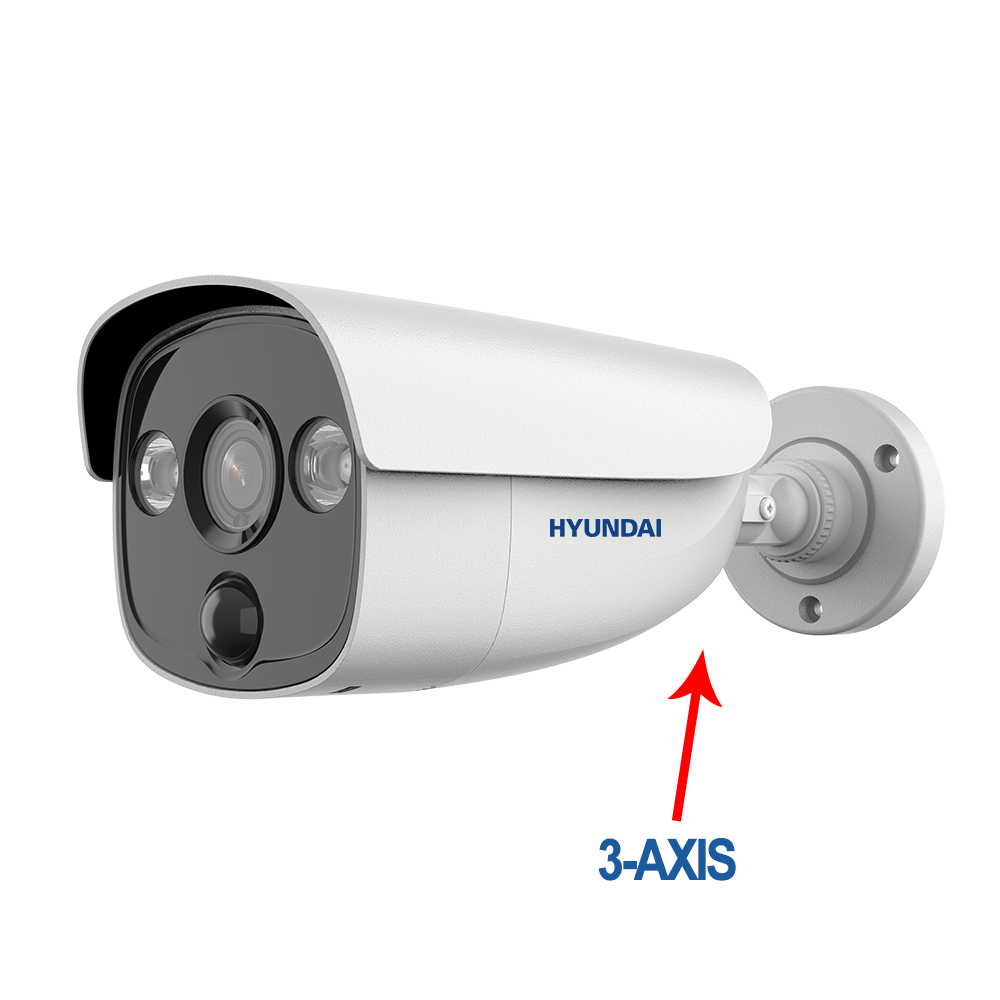

Arm with movement on 3 axes


Alimentazione 12V DC A 12VDC power supply is required to operate this camera (not included)
Alimentazione 12V DC
Garanzia 3 anni This product is covered by a 3 year warranty!

Data sheet

Model HYU-776
Room
Image Sensor 2 Megapixel CMOS
Effective Pixel 1920x1080
Video Frame Rate 1080P (1920x1080) @ 25 Fps
Video Output HDCVI / HDTVI / AHD / 960H
Minimum Illumination 0.01 lux F1.2 (color, AGC On) / 0 lux IR On
Illuminator Smart IR: 20 meters
Lens 2.8mm (92 °)
RIP Yes
IR CUT FILTER Yes
Power Input 12V DC (± 15%)
Waterproof Level IP66
Operation Temperature -40 ° C ~ + 60 ° C
Humidity ≤90% (no condensed)
Power Consumption Max.6.6W
Dimensions Ø82.6 (Lar) x 77.1 (Al) x 208.9 mm
Weight 439 g
Bracket 3AXIS movement

Further details

Famiglia di prodotti hyundai

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
