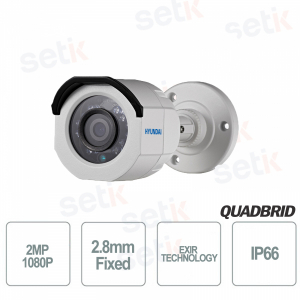

Hyundai 2MP 4 in 1 bullet 2.8mm IR video surveillance camera

Hyundai 2MP 4 in 1 bullet 2.8mm IR video surveillance camera

HYU-761 Equivalent SF-B022-2E4N1 / SF-B029-2E4N1 - Hyundai LITE series 4 in 1 bullet video surveillance camera with 20m Smart IR illuminator for outdoor use, 2mp CMOS sensor, 2MP 1080P resolution and 2.8mm fixed lens. 4 Technologies in 1 HDTVI / HDCVI / AHD / ANALOG CVBS , ICR, IP66 protection. Hyundai Security HYU-761

Reference: HYU-761

Brand: Hyundai Security

EAN: 2123456790085

Manufacturer Object ( [id] => 30 [name] => Hyundai Security [description] =>

Born in Corea, Hyundai Corporation is a leader in the creation of digital products and distinguishes itself for the wide range of industrial, electrical and electronic products. Hyundai Corporation has entered the CCTV field by developing and projecting security devices such as high level recorders and cameras, both for their technology and for their design. The main aim of the Corean company is to guarantee the protection and safety of people inside their houses, offices or means of transport.

All Hyundai video surveillance systems are appreciated and recommended by industry professionals especially because the majority of the range is based on Hikvision technology, which is why they are fully compatible.

The official distributors of Hyundai Security are few because there are few realities, like Setik, authorized to distribute it. At the basis of this policy is the will to protect and safeguard the brand, thus avoiding aggressive channel choices.

Hyundai Security

[short_description] =>

Videosorveglianza Hyundai

Hyundai Security products for the protection and safety, to be installed in your home, office or means of transport.

[id_address] => [date_add] => 2018-10-29 15:00:38 [date_upd] => 2021-06-18 12:43:04 [link_rewrite] => hyundai-security [meta_title] => Hyundai Security [meta_keywords] => Hyundai Recorder,Hyundai Security CCTV ,Hyundai Security,Hyundai CCTV Cameras [meta_description] => Hyundai Corporation projects and develops seucrity CCTV systems by offering innovative and advanced devices, both for their technology and their design [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 1 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
FIND INSTALLER


CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

4 IN1 BULLET CAMERA HYUNDAI 1 MEGAPIXEL 2.8MM - HDTVI / HDCVI / AHD / CVBS - IR - HYUNDAI

Hyundai Security HYU-761 Hyundai 4 in 1 Bullet Outdoor Camera
Quad-hybrid "HDTVI / HDCVI / AHD / ANALOG CVBS" - 2 MP resolution - 2.8mm lens
Smart IR 20 M Illuminator with EXIR 2.0 Technology - ICR Filter - 3-axis movement
Extended 3 Year Hyundai Warranty! - IP66 protection (Rain/Dust)

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

4 tecnologie in 1

4 TECHNOLOGIES IN 1:

This camera features 4 technologies in 1 : HDTVI / HDCVI / AHD / 960H ( ANALOG ) interchangeable.

Tecnologia HDTVITecnologia HDCVITecnologia AHD

Risoluzione 2Mpx

This camera features a resolution of 2 Megapixels 1080P

2 Megapixel CMOS sensor

Ottica fissa This camera is equipped with a 2.8mm fixed lens

Illuminatore IR 20 MT

Tecnologia EXIR

Smart IR Illuminator with EXIR 2.0 Technology.

Maximum range 20 meters

EXIR 2.0 TECHNOLOGY

This technology remedy the classic annoyances of the traditional IR illuminator .

In detail:

1) NO IR REFLECTION OR BLEEDING:

Having the IR LEDs positioned separately from the camera lens completely eliminates possible internal IR reflections and IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated in a circular array with various LEDS around the lens.

This most often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) LESS ISSUES WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hotter IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with flat-faced EXIR cameras, on which the contact surfaces are much smaller.

Tecnologia EXIR 2.0

Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter

Protezione IP66 contro polvere e getti d'acqua IP66: Guarantees protection from dust and water jets (rain)
Movimento su 3 assi

Arm with movement on 3 axes


Alimentazione 12V DC A 12VDC power supply is required for the operation of this camera (not included)
Alimentazione 12V DC
Garanzia 3 anni This product is covered by a 3 Year Warranty!

Data sheet

model HYU-761
Room
Image Sensor CMOS 2 Megapixels
Effective Pixels 1920x1080
Video Frame Rate 1080P (1920x1080) @ 25fps
Video Output HDCVI / HDTVI / AHD / 960H
Minimum Illumination 0.01 lux F1.2 (color, AGC On) / 0 lux IR On
Illuminator Smart IR: 20m
lens 2.8mm (92°)
IR CUT FILTER Yes
power input 12V DC (±15%)
waterproof level IP66
Operation Temperature -40°C~+60°C
humidity ≤90% (not condensed)
power consumption Max. 4W
Dimensions Ø70 x 154.5mm
Weight 400g
Bracket 3AXIS movement

Further details

Famiglia di prodotti hyundai

Downloads

Leaflet not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
