HYU-436 Hyundai PRO series HDTVI fixed dome video surveillance camera with Smart IR 80M illuminator for outdoor use, 8 Megapixel CMOS sensor, 8 MP resolution and 2.8mm ~ 12mm Varifocal lens. WDR 120dB , OSD, ATW, MWB, AGC, BLC, 3D-DNR, Privacy Mask, mirror, IP67
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

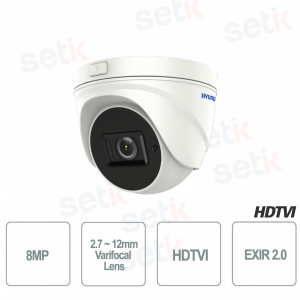

HYUNDAI 8 MEGAPIXEL VARIFOCAL HDTVI DOME CAMERA - IR 80M - WDR 120dB
![Hyundai Hyundai Security](https://www.setik.biz/storage/images/Articoli/Hyundai_logo_blu.jpg)
8 Megapixel resolution - 2.8 ~ 12 Varifocal lens - 8 Megapixel CMOS sensor
Smart IR 80 M EXIR 2.0 Illuminator - Day / Night (ICR) - WDR 120dB
Hyundai 3 Year Extended Warranty! - IP67
Product details
![Hyundai products Gamma di prodotti Hyundai](https://www.setik.biz/storage/images/Articoli/hyundai_banner_2.jpg)
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
![]() |
HD-TVI is one of the technologies present in the world of video surveillance. |
![]() |
This camera features a resolution of 8 Megapixel 8 MP! |
![]() |
Varifocal lens from 2.8 ~ 12mm |
|
Smart IR illuminator with EXIR 2.0 technology. Maximum range 80 meters EXIR 2.0 TECHNOLOGY This technology remedies the classic disturbances of the traditional IR illuminator . In detail: 1) NO IR REFLEX OR BLEEDING: By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR bleeding are completely eliminated, a serious problem on dome cameras due to the presence of the glass dome. 2) BEST IR COVERAGE: This very often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue. 3) FEWER PROBLEMS WITH SPIDERS / INSECTS: |
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR, etc. |
![]() |
D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast. ![]() |
![]() |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. ![]() |
![]() |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
![]() |
ATW (Auto Tracing White Balance) refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature . ATW is a more advanced feature than AWB (Auto White Balance), and is very important as without it, images could be completely unusable. Possibility to adjust the color balance also manually (MWB) |
![]() |
AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
![]() |
Protection level IP67 (Dust / Diving) |
![]() |
A 12VDC power supply is required for the operation of this camera (not included) ![]() |
![]() |
This product is covered by a 3 Year Warranty! |
Data sheet
Model | HYU-436 |
Room | |
Image Sensor | 8.3 MP CMOS sensor |
Digital Resolution | 3840 x 2160 |
Minimum Illumination | 0.003 lux F1.2 (AGC ON) / 0 lux IR ON |
Lens |
2.8 ~ 12mm |
Day & Night |
IR cut filter |
IR Illuminator |
Smart IR: 80 meters EXIR 2.0 |
OSD menu |
via coaxial |
White Balance |
ATW / MWB, AGC |
Backlight compensation |
BLC, HLC |
Day & Night |
Yes |
Gain Control |
2D-DNR,, Digital WDR |
Other |
Mirror mode, sharpness and brightness adjustment |
Working temperature |
-40 ° C ~ + 60 ° C |
RH: |
≤90% (without condensation) |
Material |
Metal |
Power supply |
12V DC (± 25%) |
Consumption |
Max.14W |
Dimensions |
134.3 x 123.9 x 111.4 mm |
Weight |
630 g |
