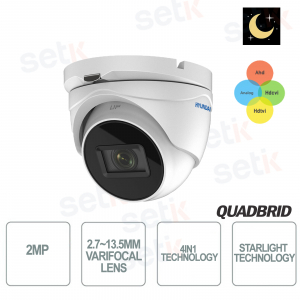

Fixed Dome STARLIGHT 4 in 1 2MP IR 70 METERS EXIR 2.0

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

Low light,0.005 lux visibility , color vision even in night mode

With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixel

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)

With the Sony CMOS sensor it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision becomes black/white.

With the SENSOR present, night shots will be clear and in colour

4 TECHNOLOGIES IN 1:

This camera features 4 technologies in 1 : HDTVI / HDCVI / AHD / CVBS interchangeable .

This camera features a resolution of 1920x1080 FULL-HD

CMOS sensor of high performance of 2 megapixels

Smart IR Illuminator with EXIR 2.0 Technology.

Maximum range 70 meters

EXIR 2.0 TECHNOLOGY

This technology remedy the classic annoyances of the traditional IR illuminator .

In detail:

1) NO IR REFLECTION OR BLEEDING:

Having the IR LEDs positioned separately from the camera lens completely eliminates possible internal IR reflections and IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome.

2) BEST IR COVERAGE:
Usually, the IR is integrated in a circular array with various LEDS around the lens.

This most often resulted in an overexposed circular area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) LESS ISSUES WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the hotter IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with flat-faced EXIR cameras, on which the supporting surfaces are much smaller.

The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: AWB, AGC, 3D-DNR, etc.
OSD menu control via coaxial cable (UTC)

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
