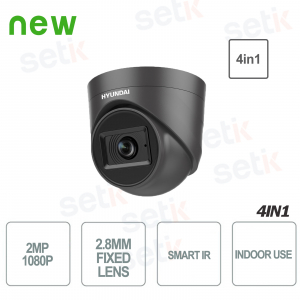

HYU-808 Hyundai PRO 4 in 1 video surveillance camera (HDTVI - HDCVI - AHD - CVBS) dome with 20M Smart IR illuminator for outdoor use, 2 Megapixel CMOS sensor , 2 MP resolution and 2.8 fixed lens. Motion Detection, incorporates microphone, Digital WDR. coloring: BLACK
FIXED HDTVI HYUNDAI 2 MEGAPIXEL DOME CAMERA - IR 20M - DIGITAL WDR - COLOR: BLACK
Resolution 2 Megapixel - Optical 2.8 - Starlight CMOS sensor
Smart IR Illuminator 20 M - Day / Night (ICR) - Digital WDR - Incorporates Microphone
Extended Warranty 3 Years Hyundai! - COLORING: BLACK
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply ALL Hyundai products: consult the CATALOG or contact us by email. |
4 TECHNOLOGIES IN 1: This camera features 4 technologies in 1 : interchangeable HDTVI / HDCVI / AHD / 960H (ANALOG). |
|
This camera has a resolution of 2Megapixel 2 MP! |
|
|
CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With this CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, the night shots will be clear and in color
|
2.8mm fixed optic |
|
Smart IR illuminator Maximum flow 20 meters
This camera is also equipped with SMART IR technology . |
|
The camera has an OSD menu , through which it is possible to manage and adjust some functions such as: WB, AGC, AE, DNR etc.
|
|
D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as it is for digital zoom compared to Optical Zoom, it is a software simulation emulation of WDR technology, however extremely useful in circumstances of strong contrast. |
|
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
|
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
|
ATW (Auto Tracing White Balance), refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature . The ATW is a more advanced function than the AWB (Auto White Balance), and it is very important since in the absence of it, the images could be completely unusable. |
|
AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. | |
A 12VDC power supply is required to operate this camera (not included) |
|
This product is covered by a 3 year warranty! |
Data sheet
Model | HYU-808 |
Room | |
Image Sensor | 2MP (1920x1080) |
Digital Resolution | 1080P (1920x1080) @ 25 fps |
Minimum Illumination | 0.01 lux F1.2 colors / 0 lux IR On |
Lens |
2.8 mm |
Day & Night |
IR cut filter |
IR Illuminator |
Smart IR: 20 meters |
OSD menu |
via coaxial |
Audio |
Includes microphone Coaxial audio |
White Balance |
Automatic |
Backlight compensation |
BLC, HLC |
Gain Control |
2D-DNR,, D-WDR |
Other |
Mirror mode |
Working temperature |
-40 ° C ~ + 60 ° C |
RH: |
≤90% (without condensation) |
Material |
Plastic case |
Power supply |
12V DC (± 25%) |
consumption |
Max.2.7W |
Dimensions |
84.6 x 78.9 mm |
Weight |
140.5 g |
