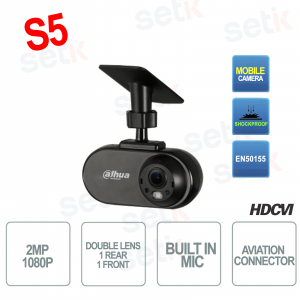

HD CVI 2MP Mobile Double Optical Audio Video Surveillance Camera S5 Dahua Version

HD CVI 2MP Mobile Double Optical Audio Video Surveillance Camera S5 Dahua Version
IN PROMOTION -63%

Dahua HAC-HMW3200L-FR 4-in-1 mobile chamber Special S5 version for vehicles. To be installed inside the front windshield. CMOS 1 / 2.7 "of 2MP. 2 4-in-1 video outputs with M12 aviation connectors. 2.8 mm (116 °) fixed front lens. Fixed rear lens of 2.1 mm (139 °). 0.02 lux F2.0. OSD, AWB, AGC, BLC, HLC, WDR digital, 2D-DNR, horizontal mirror mode. Incorporates microphone . 3AXIS. 12V DC.

Reference: HAC-HMW3200L-FR-S5

Brand: Dahua

EAN: 6939554995088

FIND INSTALLER

€76.29

€206.18 -63%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


HD CVI 2 MEGAPIXEL 2.8MM VEHICLE CAMERA - DOUBLE LENS - S5 VERSION - DAHUA MOBILE

Prodotto Dahua S5 Version Camera for HD CVI Mobile Dahua vehicles
Resolution 1080P 2MP FULL HD - Rear lens 2.1 mm ~ Front lens 2.8 mm - 1 / 2.7 "CMOS sensor
Day / Night (ICR) - Incorporates Microphone
Ideal for installation on moving vehicles - Power supply NOT included - 24 month warranty

Product details

Telecamera Dahua Mobile 2MP 3.6mm Aviation Connector, Microfono integrato EN50155 Shockproof
- Dahua HD CVI vehicle camera
- S5 version
- Mobile Camera : Ideal for installation on moving vehicles
- FULL HD 1080P 2MP resolution
- Rear lens 2.1mm ~ Front lens 2.8mm
- 1 / 2.7 "2Megapixel CMOS image sensor
- Multi Language OSD Menu
- Day / Night (ICR), BLC, HLC, DWDR
- Integrated microphone
- Video output: 1 HDCVI high definition BNC channel with Aviation connector
- IP67 protection (dust / immersion)
- Shock-proof : vibration resistant and EN50155 certified
- Material: Aluminum
- Dimensions: 115..8 × 99.5 × 50.2mm (4.56 "× 3.92" × 1.98 ")
- 12V DC power supply not included
- Suitable for indoor and outdoor environments
- 24 months warranty

Data sheet

Model HAC-HMW3200L-FR-S5
Room
Image Sensor 1 / 2.7 "CMOS
Effective Pixels 1920 (H) × 1080 (V), 2MP
Scanning System Progressive
Electronic Shutter Speed

PAL: 1/25 ~ 1 / 100000s
NTSC: 1/30 ~ 1 / 100000s

Min. Illumination 0.02Lux / F2.0,30IRE, 0Lux IR on
S / N Ratio

More than 65dB

IR Distance Up to 3m (9.8feet)
IR On / Off Control Auto / Color / B / W
IR Leds 1
Lens
Lens Type Fixed lens / Fixed iris
Mount Type Board-in
Focal Length
Telecamera Videosorveglianza Mobile

MOBILE ROOM

The " Mobile Camera " is a camera particularly suitable for installation on moving vehicles, thanks to its shock-proof and compact case.

Smart Design
To make it suitable for vehicles, the mobile camera has been designed with a compact case of very small dimensions, able to reduce interference. Meeting the needs, the body and front of the camera are completely black.

Resistenza alle vibrazioni

certifica en50155

Connettore aviation

SHOCKPROOF - EN50155

Vibration is unavoidable in mobile installations.

In order to avoid image or connection errors, the hardware structure of the mobile camera is shock resistant with the certification of EN50155 . In addition, the mobile camera adopts M12 aviation connector for stable connection with MCVR.

Dettaglio Connettore aviation
ONVIF® HD-CVI is the new technology in the world of video surveillance. By simply replacing the equipment (Cameras and DVRs) in the analog infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way it is possible to obtain the same results as in the IP world but with a high cost containment.
1080P HDCVI Bullet Camera HAC-HDW1200M

This camera features a resolution of 2Megapixel 2 MP 1080P FULL HD
1 / 2.7 "CMOS sensor

Dual Lnes

This camera features dual optics

Rear lens: 2.1mm

Front Optics: 2.8mm

OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day / Night sensitivity, Shutter speed, White balance, light compensation and much more ...

The OSD menu is multi-language

Questa telecamera presenta microfono a bordo This camera is equipped with an on-board microphone
Allows you to adapt the lens to Night / Day vision

BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC_Camera AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range) is the Software solution of the most powerful WDR integrated in the DSP, exactly as it happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

12VDC_Aliment DC12V power supply NOT included in the package.
Materiale con cui è stato creato il dispositivo This camera was made of PLASTIC.
Questo prodotto è coperto da garanzia 24 mesi italiana

This product is covered by a 24 month warranty.

Download

Download the English brochure
Schema con le dimensioni della telecamera dome hdcvi HAC-HMW3200L-FR

Immagine esempio risoluzioni a confronto
