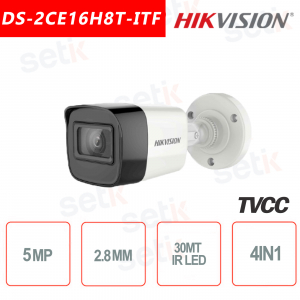

Hikvision DS-2CE16H8T-ITF 5MP CMOS Turbo HD TVI 4in1 (TVI / AHD / CVI / CVBS) outdoor bullet camera 5Megapixel camera, 2.8mm fixed lens, 5MP CMOS sensor, Illuminator up to 30M with EXIR 2.0 Technology, Supports 3D Digital noise reduction, BLC, Smart IR, WDR 130dB, Up to Coax data with HIKVISON-C. 12Vdc power supply, operating temperature from -40 ° C to + 60 ° C. OSD. IP67
HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!
€122.12
€187.88 -35%
discover the available quantity
|
VERSION WITH 3.6MM OPTICS ALSO AVAILABLE ON REQUEST!
|
|
4IN1 TECHNOLOGY: This camera is a QUADRIBRIDA (4 integrated technologies) |
| Turbo HD - Hikvision: TURBO HD THE HIGH DEFINITION ANALOG With the Turbo HD line you can watch and record in high definition using traditional wiring on coaxial cable. In fact, Turbo HD cameras take advantage of the existing coaxial infrastructure.  |
| Resolution: This camera has a resolution of 2560 × 1944 5 megapixels high performance CMOS sensor |
| Optics: This camera has 2.8mm fixed lens |
|
Infrared IR illuminator: This camera is also equipped with SMART IR technology.
EXIR 2.0 TECHNOLOGY This technology remedies the classic ailments of the traditional IR illuminator. 1) NO IR REFLECTION OR BLEEDING: 2) BEST IR COVERAGE:
|
| Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex as possible, the BLC function allows a discreet adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
| WDR 130dB: WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high contrast light / shadow. Fundamental in the case of shooting from the inside to the outside, plates, shaded points or all situations where there is no homogeneity of light. The greater the value in db and the greater the camera's ability to manage the strong difference of the backlight present. The common WDR usually reaches 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
|
IP67 protection - outdoor: |
|
Supply: |
| DS-2CE16H8T-ITF | |
| Room | |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Signal System | PAL / NTSC |
| Resolution | 2560 (H) × 1944 (V) |
| Min. Illumination | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Frame Rate | TVI: 2 MP @ 25fps, 2 MP @ 30fps, 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps AHD: 4 MP @ 25fps, 4 MP @ 30fps, 5 MP @ 20fps CVI: 4 MP @ 25fps, 4 MP @ 30fps CVBS: PAL, NTSC |
| Shutter Time | PAL: 1/25 s to 1 / 50,000 s NTSC: 1/30 s to 1 / 50,000 s |
| Lens | 2.8 mm |
| Horizontal Field of View | 98th |
| Lens Mount | M12 |
| Day & Night | IR cut filter |
| Angle Adjustment (Bracket) | Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, Rotate: 0 ° to 360 ° |
| Synchronization | Internal synchronization |
| WDR (Wide Dynamic Range) | ≥ 130 dB |
| Menu | |
| AGC | Yes |
| Day / Night Mode | Auto / Color / BW (Black and White) |
| White Balance | Auto / Manual |
| BLC (Backlight Compensation) | Yes |
| WDR | Yes |
| 3D DNR | Level 1 to 9 |
| Privacy Mask | 4 programmable privacy masks |
| Motion Detection | 4 programmable areas |
| Language | Inglese |
| Functions | Brightness, Sharpness, 3D DNR, Mirror, Smart IR |
| Interface | |
| Video Output |
1 HD analog output |
| Switch Budon |
TVI / AHD / CVI / CVBS |
| General | |
| Operating Conditions |
-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing) |
| Power Supply | 12 VDC ± 25% * You are recommended to use one power adapter to supply the power for one camera. |
| Power Consumption | Max. 5.8 W |
| Protection level | IP67 |
| Material | Metal |
| IR Range | Up to 30 m |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Dimensions | 58mm × 61mm × 158.6mm (2.28 "× 2.40" × 6.42 ") |
| Weight | Approx. 320 g (0.71 lb.) |
