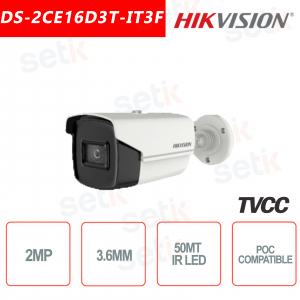

Hikvision 2MP Bullet Camera HD Turbo HD-TVI 4in1 3.6mm IR 50

Hikvision 2MP Bullet Camera HD Turbo HD-TVI 4in1 3.6mm IR 50
BEST PRICE -50%

HikvisionDS-2CE16D3T-IT3F 2MP CMOS Turbo HD TVI 4in1 (TVI / AHD / CVI / CVBS) bullet camera outdoor 2Megapixel camera, 3.6mm fixed lens, 5MP CMOS sensor, POC compatible . EXIR 2.0 illuminator up to 50M with EXIR 2.0 Technology, Supports 3D Digital noise reduction, BLC, Smart IR, WDR 120dB, Up to Coax data with HIKVISON-C. HD-TVI video output, 12Vdc 4.6W power supply, operating temperature from -40 ° C to + 60 ° C. OSD. IP67

Reference: DS-2CE16D3T-IT3F

Brand: Hikvision

EAN: 6954273682231

FIND INSTALLER

€62.22

€124.44 -50%
taxes included
Tax included
  Available
discover the available quantity



DS-2CE16D3T-IT3F | HIKVISION 2MP BULLET CAMERA HD TVI 4IN1 TURBO HD 3.6MM COMPATIBLE POC - EXIR 50 M

Made by Hikvision

DS-2CE16D3T-IT3F


ON REQUEST, ALSO AVAILABLE WITH 6MM OPTICS!


Outdoor Hikvision DS-2CE16D3T-IT3F Turbo HD TVI 4IN1 (TVI / AHD / CVI / ANALOG) camera
Resolution: 2 MP 2Megapixel - 3.6mm fixed lens - CMOS sensor
50M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - SMART IR - WDR 120dB - IP67 Protection
Power supply NOT included - POC compatible (Power on coaxial) - 24 months warranty

POC - POWER OVER COAX:

Power Over Coaxial "PoC" , means providing direct power to the cameras from a PoC DVR , operating through a single point; eliminating the need to connect the camera to a power supply.

This technology allows the high definition video signal and the energy required by the device to be routed through a single coaxial cable.

This property saves time and resources in the installation of the camera, as PoC can directly connect the device, eliminating the electrical preparation processes

This innovation will mean time savings and investment in projects , making installation much easier and more profitable.

DS-2CE16D3T-IT3F

4IN1 TECHNOLOGY:

This camera is a QUADRIBRIDA (4 integrated technologies)
These cameras are at the same time, Analog , Ahd , Hdcvi and Hdtvi .

Turbo HD - Hikvision:

TURBO HD THE HIGH DEFINITION ANALOG With the Turbo HD line you can watch and record in high definition using traditional wiring on coaxial cable. Indeed, Turbo HD cameras take advantage of the existing coaxial infrastructure.



Resolution:
This camera has a resolution of 1920x1080 FULL-HD
High performance 2 megapixels CMOS sensor

Optics:
This camera has 3.6mm fixed lens

Infrared IR illuminator:
Infrared IR illuminator for better night vision. Range up to 50M

This camera is also equipped with SMART IR technology.
Through this technology, the light emitted by LEDs is adapted according to the object being viewed.

Smart IR technology

EXIR 2.0 TECHNOLOGY

This technology remedies the classic ailments of the traditional IR illuminator.

In detail:

1) NO IR REFLECTION OR BLEEDING:
Having the IR LEDs positioned separately from the camera lens, the possible internal reflections of the IR and the IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome, are completely eliminated.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular apparatus with various LEDs around the lens.
This often resulted in a circular area overexposed to the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.


3) LESS PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat of the warmer IR LEDS in non-EXIR cameras. This problem decreases with EXIR cameras, even more so with flat-faced EXIR cameras, on which the contact surfaces are clearly smaller.

Day / Night:
It allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER
BLC (Back Light Compensation):
is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex as possible, the BLC function allows a discreet adaptation to these situations


Click to enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

D-WDR (Digital Wide Dynamic Range):
Software solution of the most powerful WDR integrated in the DSP, exactly as it is for digital zoom compared to Optical Zoom, is a software simulation emulation of WDR technology, however extremely useful in circumstances of strong contrast.

IP67 protection - outdoor:
This camera is equipped with IP67 protection (dust / diving). Suitable for outdoor environments.

Supply:
A 12V DC power supply is required to operate this camera (not included)

Data sheet

DS-2CE16D3T-IT3F
Room
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL / NTSC
Video Frame Rate PAL: 1080p @ 25fps
NTSC: 1080p @ 30fps
Resolution 1920 (H) × 1080 (V)
Min. Illumination 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shuder Time PAL: 1/25 s to 1/50, 000 s
NTSC: 1/30 s to 1/50, 000 s
Slow Shuder Max. 16 times
Lens 3.6 mm
Horizontal Field of View 82 °
Lens Mount M12
Day & Night IR cut filter
Angle Adjustment Pan: 0 ° to 360 °, Tilt: 0 ° to 180 °, RotaAon: 0 ° to 360 °
SynchronizaAon Internal synchronization
WDR (Wide Dynamic Range) ≥ 120 dB
Menu
AGC High / Medium / Low
D / N Mode Auto / Color / BW (Black and White)
Image Mode STD / HIGH-SAT
BLC (Backlight Compensation) Yes
WDR Yes
3D DNR Level 1 to 9
Language Inglese
Functions Brightness, Sharpness, 3D DNR, Mirror, Smart IR
Interface
Video Output

1 HD analog output

Switch Budon

TVI / AHD / CVI / CVBS

General
Operating Conditions

-40 ° C to 60 ° C (-40 ° F to 140 ° F), Humidity: 90% or less (non-condensation)

Power Supply 12 VDC ± 25%
Power Consumption Max. 5.6 W
Protection level IP67
Material Front cover: Metal
Main body: Plastic
Bracket: Plastic
IR Range Up to 50 m
Communication 81.9mm × 86.7mm × 217.9mm (3.22 "× 3.41" × 8.58 ")
Weight Approx. 411 g (0.91 lb.)

Further details

DS-2CE16D3T-ITF

Download

Download the English Brochure
