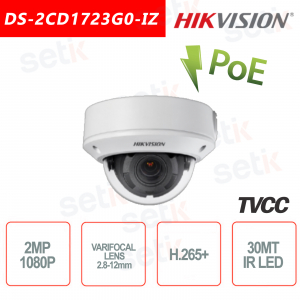

Hikvision DS-2CD1723G0-IZ IP PoE ONVIF outdoor camera 2MP FULL-HD 1080P dome, 2.8mm - 12mm Varifocal lens, 1 / 2.8 "CMOS sensor, H.265 + . Day & Night (ICR), AutoFocus, 30M IR illuminator, Slot Micro SD ( FINO128GB - NOT INCLUDED ) Dual Stream, ROI, DWDR, BLC, 3D DNR, AGC, Motion Detection, reset button, Protection IP67 / IK10 and TVS 2000V, metal.
FIND INSTALLER
€314.03
€483.12 -35%
discover the available quantity
DS-2CD1723G0-IZ | HIKVISION IP POE 2.0 MP 2.8MM-12MM OUTDOOR CAMERA ONVIF® H.265 IR 30 METERS DOME
Outdoor Hikvision IP PoE dome camera Resolution: 2.0 MP 2MP 1080P FULL-HD 2Megapixel - 2.8 mm - 12 mm Varifocal lens - 1 / 2.8 "CMOS sensor - H.265 +
30M IR Illuminator - Day / Night (ICR) - Digital WDR - AGC -BLC - 3D DNR - Motion Detection - Dual Stream
Power supply NOT included - MicroSD slot (not included) - 24 month warranty
|
The DS-2CD1623G0-IZ camera has EASY IP 1.0+ version |
| ONVIF®: Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. DO NOT be Onvif, it means having a camera in itself which can never be used together with recording systems. |
| POE (Power Over Ethernet): The advantage of a PoE camera is evident, it allows to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
| Resolution: This camera features 2.0 MP 2MP 1080P FULL-HD resolution in real time! (1920x1080pixel) at 25fps Image sensor 1 / 2.8 "2Megapixel progressive scan CMOS |
| Optics: This camera has 2.8 - 12 mm Varifocal optics |
Compression H.265 +
An intelligent algorithm self-developed by Hikvision that can significantly reduce the video bitrate based on a standard H.265 codec. Hikvision's H.265 + reduces the transmission bandwidth and storage capacity required without impacting its video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bit rate control. Optimized for multiple surveillance scenarios, it allows greater use of ultra HD surveillance cameras, such as 8 MP and 12 MP cameras. |
|
Infrared IR illuminator: |
| ROI (Region Of Interest): The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a low bandwidth occupation and to record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus ensuring a better definition of the image.  |
| Day / Night: It allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
|
MICRO SD SLOT: 128GB Micro SD slot ( NOT INCLUDED ) |
| BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex as possible, the BLC function allows a discreet adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
|
D-WDR (Digital Wide Dynamic Range):  |
|
3D- DNR: |
| Supply: A 12V DC power supply is required to operate this camera (not included)  |
| IP67 protection: Protection from dust and temporary immersions. Suitable for outdoor environments. Also equipped with TVS 2000V lightning protection |
|
IK10: IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there are vandalism risks |
|
TVS 2000V protection: The TVS2000V protection protects against lightning, protects against voltage overloads |
Data sheet
| DS-2CD1723G0-IZ | |||
| Room | |||
| Image Sensor | 1 / 2.8 "progressive scan CMOS | ||
| Min Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) | ||
| Shutter Speed | 1/3 s to 1/100, 000 s, support slow shuber | ||
| Slow Shutter |
Yes |
||
| Auto-Iris |
No |
||
| Day & Night |
IR cut filter |
||
| Digital Noise Reduction |
3D DNR |
||
| WDR |
Digital WDR |
||
| Angle Adjustment |
Pan: 0 ° to 355 °, Alt: 0 ° to 70 °, rotaAon: 0 ° to 360 ° |
||
| Lens | |||
| Focal Length | 2.8 to 12 mm | ||
| Openings | F1.6 | ||
| Focus | Car | ||
| FOV | Horizontal field of view: 98 ° to 34 ° Vertical field of view: 52 ° to 19 ° Diagonal field of view: 116 ° to 40 ° |
||
| Lens Mount | Φ14 | ||
| IR | |||
| IR Range |
Up to 30 m |
||
| Wavelength |
850 nm |
||
| Standard Compression | |||
| Video Compression |
Main stream: H.265 / H.264 |
||
| H.264 Type | Baseline Profile / Main Profile / High Profile | ||
| H.264 + | Main stream supports | ||
| H.265 Type | Main Profile | ||
| H.265 + | Main stream supports | ||
| Video Bit Rate | 32 Kbps to 8 Mbps | ||
| Smart Feature-set | |||
| Region of Interest: | 1 fixed region for main stream and sub-stream | ||
| Image | |||
| Max. Resolution | 1920x1080 | ||
| Main Stream Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
||
| Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
||
| Image Enhancement | BLC, 3D DNR | ||
| Image Senngs | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by |
client software or web browser | |
| Day / Night Switch | Auto, scheduled | ||
| Network | |||
| Network Storage | Support Micro SD / SDHC / SDXC card (128G), local storage and NAS (NFS, SMB / CIFS), ANR | ||
| Alarm Trigger | Motion detecAon, video tampering alarm, network disconnected, IP addressconflicted, illegal login | ||
| Protocols | TCP / IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | ||
| General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark | ||
| Firmware Version | 5.5.2 | ||
| API | ONVIF® (PROFILE S, PROFILE G), ISAPI | ||
| Simultaneous Live View | Up to 6 channels | ||
| User / Host | Up to 32 users 3 levels: Administrator, Operator and User | ||
| Client | iVMS-4200, iVMS-4500, iVMS-5200 | ||
| Web browser | IIE7 +, Chrome18-42, Firefox5.0 +, Safari5.02 + | ||
| Interface | |||
| Communication Interface | 1 RJ45 10M / 100M self-adapAve Ethernet por | ||
| Video Output (Without -Z) | 1Vp-p composite output (75 Ω / BNC) | ||
| General | |||
| Operatng Conditions | -30 ° C to 50 ° C (-22 ° F to 122 ° F), humidity: 95% or less (non-condensing) | ||
| Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
||
| Power Consumption and Current | 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W | ||
| Protection Level | IP67, IK10 TVS 2000V lightning protection, surge protection and voltage transient protection |
||
| Material | Metal & Plastic | ||
| Dimensions | Chamber: Φ 141mm × 99.9mm (5.6 "× 3.9") With package: 140mm × 140mm × 154mm (5.5 "× 5.5" × 6.1 ") |
||
| Weight | Camera: Approx. 830 g (1.8 lb.) With package: Approx. 1070 g (2.4 lb.) |
||
