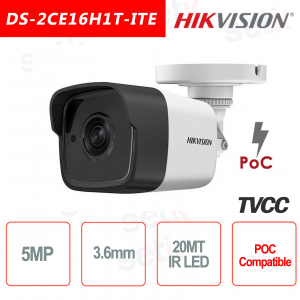

Hikvision DS-2CE16H1T-ITE 5MP Turbo HD TVI outdoor bullet camera 5Megapixel, 3.6mm fixed lens, 5MP CMOS sensor, POC compatible . Smart IR illuminator up to 20M with EXIR 2.0 Technology, OSD menu, DNR, DWDR, Day / Night (ICR), AGC, analog HD video output, Communication via coaxial, Hikvision-c protocol (tvi output), IP67 protection.
HIKVISION 4K TURBO HD IN PROMO! DISCOVER NOW!
€55.29
€125.66 -56%CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
DS-2CE16H1T-ITE | HIKVISION 5MP BULLET CAMERA HD TVI TURBO HD 3.6MM COMPATIBLE POC
Outdoor Hikvision Turbo HD TVI camera
Resolution: 5 MP 5Megapixel - 3.6mm fixed lens - CMOS sensor
20M Smart IR Illuminator with EXIR 2.0 Technology - Day / Night (ICR) - AGC - BLC - DWDR - IP67 Protection
Power supply NOT included - POC compatible (Power on coaxial) - 24 months warranty
POC - POWER OVER COAX: Power Over Coaxial "PoC" , means providing direct power to the cameras from a PoC DVR , operating through a single point; eliminating the need to connect the camera to a power supply.
This technology allows the high definition video signal and the energy required by the device to be routed through a single coaxial cable. This property saves time and resources in the installation of the camera, since PoC can directly connect the device, eliminating the electrical preparation processes This innovation will mean time savings and investment in projects , making installation much easier and more profitable. |
Turbo HD - Hikvision: TURBO HD THE HIGH DEFINITION ANALOG With the Turbo HD line you can watch and record in high definition using traditional wiring on coaxial cable. In fact, Turbo HD cameras take advantage of the existing coaxial infrastructure. |
Resolution: This camera has a resolution of 5 MP 5Megapixel 5 MP CMOS image sensor |
Optics: This camera has 3.6mm fixed lens |
Infrared IR illuminator: This camera is also equipped with SMART IR technology. EXIR 2.0 TECHNOLOGY This technology remedies the classic ailments of the traditional IR illuminator. 1) NO IR REFLECTION OR BLEEDING: 2) BEST IR COVERAGE:
|
Day / Night: Allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are (entrances or exits from car parks, plates, special lights, entrances with shots from inside to outside, etc.) light compensation is one of the most complex as possible, the BLC function allows a discreet adaptation to these situations |
AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
D-WDR (Digital Wide Dynamic Range): |
IP67 protection - outdoor: |
Supply: |
Data sheet
DS-2CE16H1T-ITE | |
Room | |
Image Sensor | 5 MP CMOS image sensor |
Resolution | 2560 (H) × 1944 (V) |
Min Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
Lens | 3.6 mm |
Horizontal Field of view | 72.4 ° |
Lens Mount | M12 |
Day & Night | IR Cut Filter |
Angle Adjustment | Pan: 0 ° to 360 °; Tilt: 0 ° to 180 °; Rotate: 0 ° to 360 ° |
Synchronization | Internal synchroniza @ on |
Frame Rate | 2560 × 1944 @ 20fps, 2560 × 1944@12.5fps 2560 × 1440 @ 30fps, 2560 × 1440 @ 25fps (default) 1920 × 1080 @ 30fps, 1920 × 1080 @ 25fps * Under the PoC mode, 2560 × 1944@12.5fps is not available |
Menu | |
AGC | Support |
D / N Mode | Auto / Color / BW (Black and White) |
White Balance | ATW / MWB |
BLC | Support |
DWDR (Digital Wide Dynamic Range) | Support |
Language | English, Chinese |
Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
Interface | |
Video Output |
1 HD analog output |
General | |
Operating Conditions |
-40 ° C to 60 ° C (-40 ° F to 140 ° F), humidity: 90% or less (non-condensing @ on) |
Power Supply | 12 VDC ± 25% / PoC.af |
Power Consumption | Max. 4.5 W |
Protection level | IP67 |
Material | Metal |
IR Range | Up to 20 m |
Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
Weight | Approx. 350 g (0.77 lb.) |
