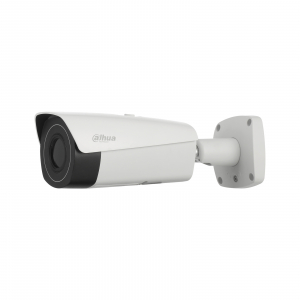

IP CAMERA DAHUA THERMAL CAMERA ONVIF® POE 25MM - VIDEO ANALYSIS AND FIRE ALARM

Made by Setik Thermal Bullet IP Camera - Lite Dahua
Resolution 400 (H) x300 (V) - Uncooled VOx Microbolometer sensor - Fixed lens 25mm - Compression H.265
Motion Detection - ROI - Video Analysis - Fire Alarm - MicroSD Slot - Video Out - RS485 - Audio / Alarm
People and Vehicles Detection - IP67 protection - 24 month warranty

THERMAL DETECTION



Product details

Telecamera Videosorveglianza IP Bullet Termica 25mm
  • ONVIF® PoE Thermal Bullet IP Camera - Pro Dahua Series
  • Resolution 400 (H) x300 (V)
  • Uncooled VOx Microbolometer sensor
  • Fixed lens 25mm
  • Visual spectrum from 8 to 14μm
  • Thermal Sensitivity: 40mK
  • Compression up to H.265
  • People Detection (from 95 to 735m) and Mobile Vehicles (from 210 to 1634m)
  • Integrated Video Analysis ( Crossing, Intrusion)
  • Advanced Smart Features (Fire Detection & Alarm, Cold / Hot Spot Track, Human / Vehicle Classification)
  • ROI, Motion Detection
  • 1 CVBS / BNC video output
  • Audio: 1 input and 1 output
  • Alarm: 2 inputs and 2 outputs
  • RS485 port
  • MicroSD slot (Max 256GB - not included)
  • 12V DC / PoE / ePoE power supply
  • Power supply NOT included
  • Dimensions 291mm × 103mm × 97mm (11.46 "x 4.06" x 3.82 ")
  • Material: Metal
  • 24 months warranty

Data sheet

Model TPC-BF5401-B25
Room
Sensor Type Uncooled VOx Microbolometer
Effective Pixels 400 (H) x300 (V)
Pixel Size 17um
Thermal Sensitivity 40mK
Spectral Range 8 ~ 14um
Image Setting Brightness / Sharpness / ROI / AGC / FFC / 3D DNR
Color Palettes 18 (Whitehot / Blackhot / Ironrow / Icefire / Fusion / Rainbow / Globow / Iconbow1 / Iconbow2 .etc)
Thermal Lens
Lens Type Fixed
Focus Control Athermalized, Focus-free
Focus Length 25mm
Angle Of View H: 15.5 ° V: 11.6 °

Effective Distance

Man (1.8m * 0.5m):

Detection: 735m
Recognition: 189m
Identification: 95m

Vehicle (4m * 1.4m):

Detection: 1634m
Recognition: 420m
Identification: 210m

Video
Compression H.265 / H.264 / MJPEG
Frame Rate

Main Stream: Thermal: 1280x1024 / 720P / 400x300 @ 25 / 30fps
Sub Stream: Thermal: 640x512 / 400x300 @ 25 / 30fps

Bit Rate Control CBR / VBR
Bit Rate H.264: 640 ~ 8192Kbps
Motion Detection Off / On (4 zones, Rectangle)
Region Of Interest off / On (4 zones)
Digital Zoom 4x (19 levels)
Flip 180 °
Mirror Off / On
Privacy Masking Off / On (4 area, Rectangle)
Audio
Compression G.711A / G.711Mu / AAC / PCM
Intelligence
IVS Tripwire, Intrusion
Advanced Intelligent Functions Fire detection & alarm, Cold / Hot spot trace, Human / Vehicle classification
Network
Ethernet RJ-45
Protocol

IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1 x

Interoperability ONVIF® Profile S & G, API
Streaming Method Unicast / Multicast
Max. User Access 10 Users / 20 Users
Edge Storage Micro SD (256GB) Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording
Web Viewer > IE8,
Management Software Smart PSS, DSS
Smart Phone Android, IOS
Interface
Video Interface

1 Port (CVBS / BNC)

Audio Interface

1/1 In / Out

RS485

Support

Alarm

2/2 In / Out

General
Power Supply

DC 12V / PoE / ePoE

Power Consumption

Max.13W

Operating Conditions

-30 ° C ~ + 55 ° C (-22 ° F ~ + 131 ° F) / Less than 95% RH * Start up should be done at above -30 ° C (-22 ° F)

Storage Conditions

-40 ° C ~ + 70 ° C (-40 ° F ~ + 158 ° F) / Less than 95% RH

Ingress Protection

IP67

Material

Metal

Dimensions

291mm × 103mm × 97mm (11.46 "x 4.06" x 3.82 ")

Net Weight

1.5Kg (3.31 lb)

Gross Weight

1.9Kg (4.19 lb)

Further details

Thermal Camera ... what is it? and how to choose it?

Read our article!

Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, it means having a camera for its own sake that can never be used together with recording systems
PoE power supply

The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation

This camera is a THERMAL CAMERA .


Sensitivity 40mK

Visual spectrum from 8 to 14µm





Thermal sensor:
Uncooled VOx Microbolometer



Ottica fissa 3.6mm

This camera has a fixed 25mm lens
People Detection: From 95 to 735mt
Mobile Vehicle Detection: From 210 to 1634m

This camera provides VIDEO ANALYSIS:
- Line crossing
- Intrusion




This camera has advanced smart features:
- Fire detection and alarm

Funzione ROI This camera is equipped with the ROI function .

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and to record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Funzione Motion Detection This camera features the Motion function by connecting it to a recording device having alarm inputs.

This camera has 1 Video Output (CVBS / BNC)



Full HD It is extremely useful to have Inputs / Outputs in a CCTV system to be able to control relays or activate a recording following an event.
This camera with 2 inputs and 2 outputs
Ingresso Audio This camera has 1 input + 1 audio output
Dual Encoding RS 485 for PTZ controls (remotely controllable cameras)
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

MicroSD Recording

Possibility to insert Micro SD up to maximum 256GB - not included

This camera was made of metal

Dual Encoding This product is covered by a 24 month warranty.

Download

Download the English brochure
Telecamera IP Termica 25mm Rilevamento Persone e mezzi
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
