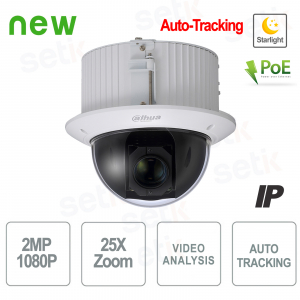

SD52C225U-HNI camera Dahua Speed Dome IP PTZ ONVIF PoE Indoor 2Megapixel 2MP 1080P FULL HD, 25X optical zoom (4.8-120mm) and CMOS sensor 1 / 2.8 "Starvis ™ Technology with Starlight. H.265 +, triple-stream, Day / Night (ICR), WDR 120dB , Video Analysis, Face Detection, Heat Map, Auto-Tracking, Motion, ROI, EIS, Defog, MicroSD Slot, Audio, Alarm, IK10 Protection
FIND INSTALLER
€611.95
€1,529.88 -60%
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
DAHUA SPEED DOME PTZ IP ONVIF® POE 2MEGAPIXEL CAMERA - VIDEO ANALYSIS & AUTO-TRACKING - INDOOR
Dahua IP ONVIF® PoE PTZ Speed Dome Camera2Megapixel 2MP 1080P FULL-HD - 25X Optical Zoom ( 4.8 ~ 120mm) - 1 / 2.8 "STARVIS ™ CMOS Sensor with Starlight Technology
Without IR illuminator and IP66 protection - IK10 protection (Vandalism) - MicroSD slot - 24 month warranty
Product details
- Dahua IP ONVIF® PoE PTZ Speed Dome indoor camera
- 2MP 2Megapixel 1080P FULL-HD resolution
- 25X Optical Zoom (4.8mm ~ 120mm)
- 1 / 2.8 "STARVIS ™ CMOS sensor with Starlight Technology
- Starlight technology: Color night vision!
- Video Compression up to H.265 +
- Triple Stream
- Day / Night (ICR), WDR (120db), Motion Detection, ROI, EIS, Defog
- Video Analysis (Line crossing, intrusion, abandoned / lost objects)
- Advanced Smart Features: Face Detection, Heat Map
- Auto Tracking
- Alarm: 2 inputs and 1 output
- Audio: 1 audio input and 1 audio output
- MicroSD slot (Max 256GB - not included)
- Without IR illuminator
- Without IP66 protection (indoor)
- IK10 protection (vandalism)
- PoE + protocol
- Metal
- Dimensions: Φ198 (mm) x 177 (mm)
- 24 months warranty
Data sheet
| Model | SD52C225U-HNI |
| Room | |
| Image Sensor | 1 / 2.8 ”STARVIS ™ CMOS |
| Effective Pixel | 1920 (H) x 1080 (V), 2 Megapixels |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1 / 1s ~ 1 / 30,000s |
| Min. Illumination | Color: 0.005Lux@F1.6; B / W: 0.0005Lux@F1.6 |
| S / N Ratio | More than 55dB |
| IR Distance | N / A |
| IR On / Off Control | N / A |
| IR LEDs | N / A |
| Lens | |
| Focal Length | 4.8mm ~ 120mm |
| Max Aperture | F1.6 ~ F4.4 |
| Angle Of View | H: 62.8 ° ~ 2.6 ° |
| Compression | G.711a / G.711Mu / AAC / G.722 / G.726 / G.729 / MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10Base-T / 100Base-TX) |
| Protocol |
IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, |
| Interoperability | ONVIF® Profile S&G, API |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications |
CE: EN55032 / EN55024 / EN50130-4 |
| Interface | |
| Video Interface |
N / A |
| Audio Interface |
1/1 |
| RS485 |
N / A |
| Alarm |
2/1 |
| Electrical | |
| Power Supply |
AC24V / 1.5A (± 10%), PoE + (802.3at) |
| Power Consumption |
13W |
| Environmental | |
| Operating Conditions |
-30 ° C ~ 60 ° C (-22 ° F ~ + 140 ° F) / Less than 90% RH |
| Ingress Protection |
N / A |
| Vandal Resistance |
IK10 |
| Casing |
Metal |
| Dimensions |
Φ198 (mm) x 177 (mm) |
| Net Weight |
2.2kg (4.85lb) |
| Gross Weight |
3.7kg (8.16lb) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, it means having a camera for its own sake that can never be used together with recording systems This camera supports the ONVIF® standard |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation This camera has PoE + 802.3at protocol |
 |
This camera is suitable for indoor environments. Without IR illuminator and IP66 protection |
 |
2 Megapixel FULL HD 1080P resolution ! |
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
|
|
1 / 2.8 " STARVIS ™ CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (WDR multiple exposure, DOL-WDR) - Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white.
With the SENSOR present, night shots will be sharp and in color
|
 |
Main Stream: 1080P / 1.3M / 720P (1 ~ 50 / 60fps) Secondary Stream: D1 / CIF (1 ~ 25 / 30fps) Sub Stream2: 1080P / 1.3M / 720P / D1 / CIF (1 ~ 25 / 30fps) |
 |
25x Optical Zoom (4.8mm ~ 120mm) + 16x Digital Zoom |
 |
This camera provides VIDEO ANALYSIS / SMART DETECTION functions: - Line crossing recognition
|
 |
This camera also features ADVANCED INTELLIGENT FUNCTIONS: - Heat Map
|
 |
This camera features the AUTO TRACKING function .
|
 |
Supports Intelligent 3D Positioning with DH-SD protocol. This system allows in addition to the movement on the camera axis also the positioning in terms of depth, and the same can be stored in the Presets General PTZ Functions: Pan / Tilt Range: Pan: 0 ° ~ 360 ° endless; Tilt: 0 ° ~ 90 °, auto flip 180 ° Manual Control Speed: Pan: 0.1 ° ~ 350 ° / s; Tilt: 0.1 ° ~ 250 ° / s Preset Speed: Pan: 500 ° / s; Tilt: 500 ° / s Presets: 300 PTZ Mode: 5 Pattern, 8 Tour, Auto Pan, Auto Scan Speed Setup: Human-oriented focal Length / speed adaptation Power up Action: Auto restore to previous PTZ and lens status after power failure Idle Motion: Activate Preset / Scan / Tour / Pattern if there is no command in the specified period Protocol: DH-SD |
 |
It is extremely useful to have Inputs / Outputs in a CCTV system to be able to control relays or activate a recording following an event. This camera with 2 inputs and 1 output |
 |
This camera has 1 Audio In + 1 Audio Out |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
 |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
 |
This camera is equipped with the ROI function . The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and to record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
This camera features the EIS function . The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable  |
 |
This camera has automatic or manual focus |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
Possibility to insert Micro SD up to maximum 256GB - not included |
 |
This camera features metal body |
 |
This product is covered by a 24 month warranty. |
