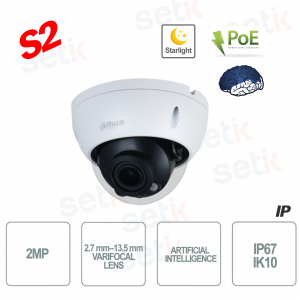

IPC-HDBW3241R-ZS-S2 Dahua AI Lite Outdoor IP Camera Onvif PoE , with Artificial Intelligence (AI SSA) , 2 Megapixel 2MP , 1/2.8" Starlight CMOS sensor, 2.7 mm–13.5 mm Varifocal lens with motorized zoom, compression up to H.265+ . Smart IR illuminator 3 LED 4 0MT , Day/Night (ICR), WDR 120dB, Perimeter protection, Video Analysis Intrusion , 256gb MicroSD slot, IP67/IK10 - S2 VERSION
FIND INSTALLER
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
ONVIF® POE OUTDOOR IP CAMERA - 2 MEGAPIXEL WITH AI SSA ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - S2 VERSION - DAHUA
2Megapixel Resolution - 2.7mm–13.5mm Varifocal Lens with Motorized Zoom - 1/2.8" Starlight CMOS - Compression up to H.265+
3 LED IR Illuminator 40M - Day/Night (ICR) - WDR 120dB - MicroSD Slot (Not Included)
Artificial Intelligence (AI SSA): Perimeter Protection, Intrusion (Vehicle Classification), AI SSA, Quick Choice and Intelligent Search
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Onvif PoE Outdoor IP AI Camera - Dahua
- S2 Version
- Resolution 2Megapixel 2MP
- 2.7mm–13.5mm Varifocal Lens with Motorized Zoom
- 1/2.8” Sensor with Starlight Technology
- Starlight Technology: Color Night Vision
- Video compression up to H.265+
- Triple Stream
- WDR 120dB - Day/Night (ICR) - 3DNR,AWB,AGC,BLC
- Smart IR illuminator 3 LEDs 40MT
- Artificial Intelligence : Perimeter Protection, Intrusion, AI SSA, Quick Pick and Smart Search
- Remote viewing with Smart PSS, DSS, DMSS
- Micro SD memory slot (Up to 256GB - not included )
- IP67 / IK10 protection (indoor/outdoor)
- SMD4.0
- Material: Metal
- Dimensions: 94mm × Φ122mm
- Power supply NOT included
- 24 month warranty
Technical data sheet
| Model | IPC-HDBW3241R-ZS-S2 |
| Room | |
| Image Sensor | 1/2.8”CMOS |
| Effective Pixel | 1920 (H) ×1080 (V) |
| ROM/RAM | 128MB/512MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.002 lux@F1.5 (Color, 30 IRE) |
| Y/N Ratio | >56dB |
| IR Distance | 40 m (131.23 ft) |
| IR On/Off Control | Auto/Manual |
| IR LEDs | 3 (IR LEDs) |
| Pan/Tilt/Rotation Range | Pan: 0°–355°; Tilt: 0°–80°; Rotation: 0°–355° |
| Lens | |
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7mm–13.5mm |
| Max. Openings | F1.5 |
| Field of View | Horizontal: 109°–30° Vertical: 56° –17° Diagonal: 137° –35° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.62 ft) |
| Intelligent | |
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| TO THE SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| SmartSearch | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
| Video | |
| Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ Smart H.264+ |
| AI Coding | AI H.265 AI H.264 |
| Video Frame Rate | Main stream: 1920 × 1080 @ (1–25/30) fps Sub stream 1: 704 × 576 @ (1–20 fps)/704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1 –25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity |
| Stream Capability | 3 streams |
| Resolution | 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640×480) |
| Bitrate Control | CBR/VBR |
| Video Bitrate | H.264: 3kbps–8192kbps H.265: 3kbps–8192kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120dB |
| Scene Self-Adaption (SSA) | Yes |
| White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Car |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Image Stabilization | Electronic Image Stabilization (EIS) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 1920 × 1080 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrades |
| Interoperability | ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestones; Genetec |
| User/Host | 20 (Total bandwidth: 64M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256G); NAS |
| Browser | IE: IE11 Chrome Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Smartphone | iOS; Android |
| Certifications | |
| Certifications | CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC:47 CFR FCC Part 15, Subpart B; UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
| Power | |
| Power Supply | 12VDC/PoE (802.3af) |
| Power Consumption | Basic: 2.3W (12VDC); 2.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 6.6 W (12 VDC); 7.7W (PoE) |
| Environment | |
| Operating Conditions | –30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH |
| Storage conditions | –40°C to +60°C (–40°F to 140°F) |
| Ingress Protection | IP67; IK10 |
| Structure | |
| Casing | Metal |
| Dimensions | 94mm × Φ122mm (3.7" × Φ4.8") |
| Net Weight | 713g (1.57lb) |
| Gross Weight | 986g (2.02 lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
| AI | Artificial Intelligence - Perimeter protection: Intrusion, Line crossing (support for classification and |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | This camera features a resolution of 2Megapixel 1080P FULL HD |
 | This camera features a 2.7-13.5mm varifocal lens |
| 1/2.8" CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color |
 | Main stream: 1920 × 1080 @ (1–25/30) fps Stream 1: 704 × 576 @ (1–20 fps)/704 × 480 @ (1–30 fps) Stream 2: 1920 × 1080 @ (1–25/30 fps) |
 | Quality IR illuminator for better night vision. This camera also features SMART IR technology. |
 | Remote visibility on mobile using Dahua DMSS application. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 | Possibility to insert Micro SD up to a maximum of 256Gb - not included |
 | Power supply NOT included  |
 | This product is covered by a 24 month warranty. |
