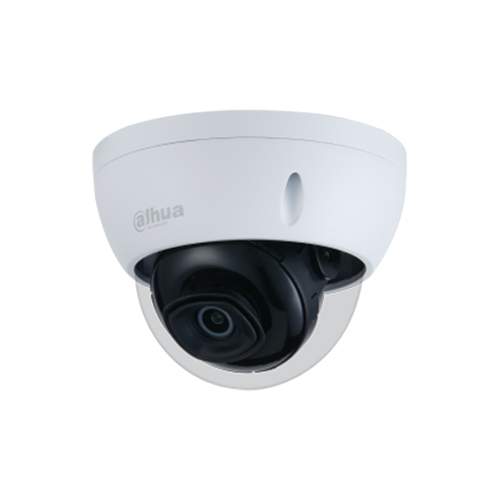

AI IP Camera ONVIF® PoE 2MP 2.8mm Starlight Artificial Intelligence - S2

AI IP Camera ONVIF® PoE 2MP 2.8mm Starlight Artificial Intelligence - S2
IN PROMOTION -61%

IPC-HDBW3241E-S-S2 Dahua AI Lite Onvif PoE external IP camera , with Artificial Intelligence , 2 Megapixel 2MP , CMOS sensor 1 / 2.8 " Starlight , 2.8mm optics, compression up to H.265 + . 3 LED 5 0MT Smart IR illuminator , Day / Night (ICR), WDR 120dB, Perimeter protection, Video Analysis Intrusion , MicroSD Slot, IP67 / IK10. S2 version

Reference: IPC-HDBW3241E-S-S2

Brand: Dahua

EAN: 6923172541635

FIND INSTALLER

€135.60

€347.70 -61%
taxes included
Tax included
  Available
 Available
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


ONVIF® POE OUTDOOR IP CAMERA - 2 MEGAPIXELS WITH ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - S2 VERSION - DAHUA

Dahua ONVIF® PoE outdoor IP camera - S2 VERSION - AI Lite Dahua Series
2Megapixel resolution - 2.8mm lens - CMOS 1 / 2.8 " Starlight - Compression up to H.265 +
IR Illuminator 3 LED 50M - Day / Night (ICR) - WDR 120dB - MicroSD Slot (Not Included)
Artificial Intelligence: Perimeter Protection, Intrusion, Accurate Detection of people and vehicles

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, on the other hand, the artificial intelligence used is the one that allows the creation of advanced devices for environmental analysis.

Product details

IPC-HDBW3241E Telecamera AI IP ONVIF® PoE 2MP

  • AI external IP camera Onvif PoE - Dahua
  • S2 version
  • 2Megapixel 2MP resolution
  • 2.8mm fixed lens
  • 1 / 2.8 ”sensor with Starlight Technology
  • Starlight technology: Color night vision
  • Video compression up to H.265 +
  • Triple Stream
  • WDR 120dB - Day / Night (ICR) - 3DNR, AWB, AGC, BLC
  • Smart IR 3 LED 50MT illuminator
  • Artificial Intelligence : Perimeter Protection, Intrusion, Accurate Detection of Vehicles and People
  • Remote viewing with Smart PSS, DSS, DMSS
  • Micro SD memory slot (Up to 256GB - not included)
  • IP67 / IK10 protection (indoor / outdoor)
  • Material: Metal
  • Power supply NOT included
  • 24 months warranty

Data sheet

Model IPC-HDBW3241E-S-S2
Room
Image Sensor 1 / 2.8 ”2Megapixel progressive CMOS
Effective Pixel 1920 (H) × 1080 (V)
ROM / RAM 128MB / 512MB
Scanning System Progressive
Electronic Shutter speed Auto / Manual 1/3 s – 1 / 100,000 s
Min. Illumination

0.002 lux@F1.4 (Color, 30 IRE) 0.0002 lux@F1.4 (B / W, 30 IRE) 0 lux (Illuminator on)

S / N Ratio

> 56 dB

IR Distance 50 m (164.04 ft)
IR On / Off Control Auto / Manual
IR LEDs 3 (IR LEDs)
Pan / Tilt / Rotation Range Pan: 0 ° -355 °; Tilt: 0 ° –80 °; Rotation: 0 ° –355 °
Lens
Lens Type Fixed focal
Mount Type M12
Focal Length 2.8 mm
Max. Aperture F1.4
Field of View Horizontal: 107 °; vertical: 56 °; diagonal: 127 °
Iris Type Fixed
Close Focus Distance 0.7 m (2.3 ft)
Intelligent
IVS (Perimeter Protection) Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA Yes
Quick Pick With AI NVR, quickly pick up the human / vehicle targets that users are interested in from SMD events
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265 + Smart H.264 +
AI Coding AI H.265
AI H.264
Video Frame Rate

Main stream: 1920 × 1080 @ (1–25 / 30) fps Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps) Sub stream 2: 1920 × 1080 @ (1 –25/30 fps) * The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

3 streams

Resolution 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control

CBR / VBR

Video Bit Rate H.264: 3 kbps – 8192 kbps H.265: 3 kbps – 8192 kbps
Day / Night Auto (ICR) / Color / B / W
BLC Yes
HLC Yes
WDR 120 dB
Scene Self-adaptation (SSA) Yes
White Balance Car; natural; street lamp; outdoor; manual; regional custom
Gain Control Car
Noise Reduction 3D DNR
Motion Detection OFF / ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Defog Yes
AFSA Yes
Image Rotation 0 ° / 90 ° / 180 ° / 270 ° (support 90 ° / 270 ° with 1920 × 1080 resolution and lower)
Mirror Yes
Privacy Masking 4 Areas
Audio
Built-in MIC Yes
Audio Compression G.711a; G.711Mu; PCM; G.726; G.723
Alarm Event No SD card; Full SD card; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
Ethernet RJ-45 (10/100 Base-T)
SDK and API Yes
Network Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP / MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability ONVIF® (Profile S / Profile G / Profile T); CGI; P2P; Milestone; Genetec
User / Host 20 (Total bandwidth: 64M)
Edge Storage

FTP; SFTP; Micro SD card (support max. 256 G); NAS

Browser IE: IE11
Chrome
Firefox
Management Software Smart PSS; DSS; DMSS
Smartphone IOS; Android
Certifications
Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30 / EU; FCC: 47 CFR FCC Part 15, Subpart B; UL / CUL: UL62368-1 & CAN / CSA C22.2 No. 62368-1-14

Power
Power Supply 12 VDC / PoE (802.3af)
Power Consumption

Basic: 2.3 W (12 VDC); 2.9 W (PoE) Max. (WDR + IR intensity + Intelligence): 6.6 W (12 VDC); 7.7 W (PoE)

Environment
Operating Conditions –40 ° C to +60 ° C (–40 ° F to 140 ° F) / Less than 95% RH
Storage Conditions –40 ° C to +60 ° C (–40 ° F to 140 ° F)
Ingress Protection IP67; IK10
Structure
Casing Metal
Dimensions 89.1 mm × Φ111.7 mm (3.51 "× Φ4.40")
Net Weight 516 g (1.14 lb)
Gross Weight 670 g (1.48 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE power supply The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation.

AI | Artificial intelligence
This camera features Artificial Intelligence on board

- Perimeter protection: Intrusion, Line crossing (classification of people & vehicles)

AI Camera - Cattura del volto

Codifica video Smart H.265+

Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Video compressione Smart H.265+

Questa telecamera ha una risoluzione FULL HD di 1920x1080

This camera features a resolution of 2Megapixel 1080P FULL HD

Ottica fissa

This camera features a 2.8mm fixed lens

1 / 2.8 "CMOS sensor STARLIGHT technology.

Low brightness, color vision even in night mode

Normally, when entering night mode, the color vision becomes black / white.

With the SENSOR present, night shots will be sharp and in color

Main stream: 1920 × 1080 @ (1–25 / 30) fps

Sub stream 1: 704 × 576 @ (1–25 fps) / 704 × 480 @ (1–30 fps)

Sub stream 2: 1920 × 1080 @ (1–25 / 30 fps)

Illuminatore IR LED

Quality IR illuminator for better night vision.
Maximum range 50 meters

This camera is also equipped with SMART IR technology.
Through this technology , the light emitted by the LEDs is adapted according to the framed object.

Full HD

Remote visibility on mobile using the Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.
Day / Night Function Icon Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
Example Day / Night function
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera is equipped with the ROI function.

The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.
Ultra Smart Funzione ROI
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Diving)

IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

12V 3A power supply Power supply NOT included
12V DC power supply
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English brochure
Schema dimensioni telecamera IPC-HDBW3241E-S
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
