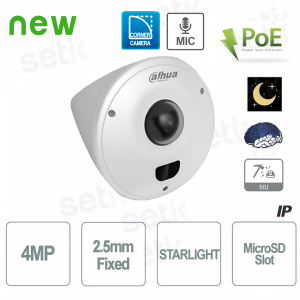

ONVIF PoE outdoor IP camera for Dahua video surveillance IPC-HCBW8442 4 Megapixel corner dome with Artificial Intelligence , 2.5mm fixed lens with distortion control, 1 / 1.8 "CMOS with Starlight Technology , H.265 +, IR Illuminator 2 LED 10M, WDR 140dB, Perimeter Protection, Perimeter Counting, Video Analysis, Heat Map, Day / Night (ICR), ROI, EIS, Defog, Audio, Alarm, MicroSD slot , Microphone, IP67 protection, IK10 + 50J, RS485. Suitable for corner installations
https://www.setik.biz/en/cameras/4074-dahua-ipc-hcbw8442-camera-ai-ip-4mp-starlight-25mm-wdr-ir-audio-poe-corner-dahua.html
€579.52
€1,379.82 -58%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 5%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
ONVIF® POE OUTDOOR IP CAMERA - 4 MEGAPIXEL 2.5MM - ARTIFICIAL INTELLIGENCE - DAHUA CORNER
ONVIF® PoE AI Corner Dahua IP Camera4Megapixel resolution - 2.5mm lens with distortion control - CMOS 1 / 1.8 " Starlight - H.265 +
Smart IR 2 LED 10MT Illuminator - Day / Night (ICR) - WDR 140dB - Built-in microphone
Artificial Intelligence: Perimeter Protection & People Counting - Video Analysis - Heat Map
|
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- Dahua PoE Dome Outdoor AI IP Camera
- Suitable for corner installations
- 4Megapixel 4 MP resolution
- 2.5mm fixed lens, with distortion control
- 1 / 1.8 ” CMOS sensor with Starlight Technology !
Starlight technology: Color vision even at night! - Video compression up to H.265 +
- Triple Stream
- WDR 140dB - Day / Night (ICR) - ROI, EIS, Defog
- Smart IR 2 LED 10MT illuminator
- Artificial Intelligence: Perimeter Protection, People Counting, Smart Search
- Standard Video Analysis: Abandoned objects, moving objects
- Special functions: Heat map
- Audio : 1 input + 1 output / built-in microphone
- Alarm: 1 input + 1 output
- Micro SD memory slot (Up to 256GB - not included)
- RS485
- IP67 protection (indoor / outdoor)
- IK10 + 50J protection
- Material: Metal
- Power supply NOT included
- Dimensions 209.4 mm × 212.0 mm × 103.1 mm (8.2 "× 8.3" × 4.1 ") (L × W × H)
- 24 months warranty
Data sheet
| Model | IPC-HCBW8442 |
| Room | |
| Image Sensor | 1 / 1.8 ”4Megapixel progressive CMOS |
| Effective Pixel | 2688 (H) × 1520 (V) |
| Scanning System | Progressive |
| Electronic Shutter speed | Auto / Manual 1/3 s – 1/100000 s |
| Min. Illumination |
0.004 Lux@F2.0 (Color, 1/3 s, 30 IRE) |
| IR Distance | 10 m (32.8 ft) (monitoring distance) |
| IR On / Off Control | Car |
| IR LEDs | 2 |
| Pan / Tilt / Rotation Range | Vertical: -10 ° to + 10 ° Rotation: 0 ° to 355 ° |
| Lens | |
| Lens Type | Fixed |
| Mount Type | M12 |
| Focal Length | 2.5 mm |
| Max. Aperture | F2.0 |
| Angle Of View | Horizontal: 135 ° Vertical: 90 ° |
| Iris Type | Fixed aperture |
| Close Focus Distance | 0.4 m (1.3 ft) |
| Smart Event | |
| General IVS Analytics | Abandoned object; moving object |
| Heat map | Yes |
| Professional, intelligent | |
| Perimeter Protection | Tripwire; intrusion; loitering detection; people gathering. |
| People counting | Entry number and exit number counting: Support configuring 4 rules, and display and output daily / monthly / annual report People counting in area: Support configuring 4 rules Queue management: Support configuring 4 rules, and count the number of people and strand time, and link alarm |
| Intelligent search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos. |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| Smart Codec | H.264: Yes H.265: Yes |
| Video Frame Rate |
50 Hz: Main Stream: 2688 × 1520 @ 25 fps; sub stream: 704 × 576 @ 25 fps; third stream: 704 × 576 @ 25 fps Main Stream: 2688 × 1520 @ 25 fps; sub stream: 704 × 576 @ 25 fps; third stream: 1920 × 1080 @ 11 fps 60 Hz: Main Stream: 2688 × 1520 @ 30 fps; sub stream: 704 × 480 @ 30 fps; third stream: 704 × 480 @ 12 fps Main Stream: 2688 × 1520 @ 30 fps; sub stream: 704 × 480 @ 30 fps; third stream: 1920 × 1080 @ 1 fps |
| Stream Capability |
3 streams |
| Resolution |
2688 × 1520; 2560 × 1440; 2304 × 1296; 2016 × 1512; 1080p (1920 × 1080); UXGA (1600 × 1200); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR / VBR |
| Video Bit Rate |
H.264: 32 Kbps – 8192 Kbps |
| Day / Night | ICR switch |
| BLC | Yes |
| WDR | 140 dB |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Manual / Auto |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF / ON (4 areas, rectangular) |
| Region Of interest | Yes (4 areas) |
| Electronic Image Stabilization (EIS) | Yes |
| Smart IR | Yes (Adjust by user) |
| Defog | Yes |
| Image Rotation | 0 ° / 90 ° / 180 ° / 270 ° |
| Flip | 0 ° / 90 ° / 180 ° / 270 ° (Support 90 ° / 270 ° with 1920 × 1080 resolution.) |
| Mirror | yes |
| Privacy Masking | 4 areas |
| Audio | |
| Built-in MIC | Yes |
| Compression | G.711a; G.711Mu; G726; AAC |
| Network | |
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol |
HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPoE; IPv4 / v6; SNMP; QoS; UPnP; NTP |
| Compatibility | ONVIF® (Profile S / Profile G); CGI; Milstone; Genetec; P2P |
| Scene Self-adaptation | Yes |
| User / Host | 20 (Total bandwidth: 80 M.) |
| Edge Storage | FTP; NAS; Micro SD card (support max. 256 G) |
| Browser | IE: Versions later than IE 8 Google Firefox Apple: versions later than Safari 12 |
| Management Software | Smart PSS; DSS; P2P |
| Smart Phone | IOS, Android |
| Port | |
| RS-485 | 1 (Baud rate range: 1200 bps – 115200 bps) |
| Audio Input | 1 channel (Terminal) |
| Audio Output | 1 channel (Terminal) |
| Alarm Input | 1 channel in: 5mA 3V – 5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
| General | |
| Power Supply | 12V DC / PoE |
| Power Consumption |
Basic power consumption: 3W (12V DC); 3.6W (PoE) Max. Power consumption (ICR + IR full intensity): 9.5W (12V DC); 11.5W (PoE) |
| Operating Conditions | -30 ° C to + 60 ° C (-22 ° F to + 140 ° F) |
| Operating Humidity | ≤95% |
| Storage Conditions | -30 ° C to + 60 ° C (-22 ° F to + 140 ° F) |
| Ingress Protection | IP67; IK10 + 50J |
| Casing | Metal |
| Dimensions | 209.4 mm × 212.0 mm × 103.1 mm (8.2 "× 8.3" × 4.1 ") (L × W × H) |
| Net Weight | 1365 g (3.0 lb) |
| Gross Weight | 1465 g (3.2 lb) |
Further details
 |
This camera is a CORNER CAMERA.
|
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, it means having a camera for its own sake that can never be used together with recording systems This camera is ONVIF® compatible |
 |
The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
|
|
AI | Artificial intelligence - Perimeter protection : Line crossing, intrusion, loitering, wandering
|
|
|
Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 |
This camera features 4MP 4MP resolution ! |
|
|
1 / 1.8 "CMOS sensor with STARLIGHT technology. With this CMOS sensor it is possible to have color shots even in night mode.
With the SENSOR present, night shots will be sharp and in color
|
 |
This camera is equipped with a fixed 2.5mm lens |
 |
Infrared illuminator with 2 LEDs with an approximate maximum range of 10Mt |
 |
This camera provides VIDEO ANALYSIS (SMART DETECTION): - Abandoned items |
 |
This camera has advanced smart features: - Heat Map Example image:
|
 |
ULTRA WDR up to 140dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light.  |
 |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
 |
The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
This camera is equipped with the ROI function . The images deriving from IP cameras are “compressed”, consequently the quality is set during the recording phase. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and to record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the plate usually passes, an exit, etc.). In that area I can set a higher quality thus guaranteeing a greater definition of the image.  |
 |
This camera features the EIS function . The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable  |
 |
DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
|
|
1 Input + 1 Audio Output. |
 |
This camera has 1 input + 1 alarm output |
 |
|
 |
Protection level IP67 (Dust / Diving) |
 |
IK 10 is the highest level of protection from direct damage. This allows the use of the camera even if there is a risk of vandalism
|
 |
Impact protection up to 50 joules |
 |
Possibility to insert Micro SD up to maximum 256Gb - not included |
 |
Power supply NOT included |
 |
This product is covered by a 24 month warranty. |
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
fill out this form
