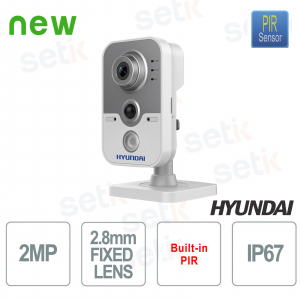

Compact Camera HD-TVI IR 20 meters EXIR 2.0 Fixed Lens 2.8mm Indoor - HYUNDAI

Compact Camera HD-TVI IR 20 meters EXIR 2.0 Fixed Lens 2.8mm Indoor - HYUNDAI
BEST PRICE -50%

HYU-483 Compact PIR series camera equivalent to DS-2CD2420F-IW with integrated PIR detector , 20m Smart IR, indoor . 2MP resolution, CMOS sensor, 2.8mm fixed lens. ICR filter, OSD, ATW, MWB, AGC, BLC, WDR 120dB , 3D-DNR, two-way audio (built-in microphone). 12V DC

Reference: HYU-483

Brand: Hyundai Security

EAN: 2123456790450

FIND INSTALLER

€48.87

€97.75 -50%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity


Videosorveglianza Hyundai Security

COMPACT HD-TVI PIR SERIES OUTDOOR CAMERA - SMART IR EXIR 2.0 - CMOS 2MP - HD-TVI - 2.8mm FIXED OPTIC

Hyundai Security
HYU-483 HD-TVI Indoor Compact Camera - equivalent to DS-2CD2420F-IW
2MP CMOS Sensor – 2.8mm Fixed Lens – 20M EXIR 2.0 Smart IR Illuminator – ICR Filter – OSD, ATW, MB, AGC, BLC, WDR 120dB, 3D-DNR, two-way audio (Built-in Microphone)
PIR Sensor Built-in Alarm!

Product details

Gamma di prodotti Hyundai

HYUNDAI CATALOGUE:

Are you looking for a HYUNDAI product but you couldn't find it on our website?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

Standard HDTVI

HD-TVI is one of the technologies present in the world of video surveillance.
Cameras with this technology boast excellent resolutions at both 720p and 1080p. Everything that is possible with other technologies is also possible with the tvi one, the choice is purely personal.

This camera is equipped with ACTIVE PIR SENSOR

Double Detection!

Thanks to the combination with the PIR sensor , motion detection will be double and even more reliable, reducing false alarms.

Thanks to this, your hard drive will last longer and will not have false alarm recordings.

No more false alarms caused by strong wind or rain will be detected.

Illuminatore IR 20 MT

Tecnologia EXIR

Smart IR Illuminator with EXIR 2.0 Technology.

Maximum range 40 meters

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
Tecnologia Smart IR

EXIR TECHNOLOGY 2.0

This technology remedies the classic problems of the traditional IR illuminator .

In detail:

1) NO IR REFLECTION OR BLEEDING:

By having the IR LEDs positioned separately from the camera lens, possible internal IR reflections and IR Bleeding, a serious problem on dome cameras due to the presence of the glass dome, are completely eliminated.

2) BEST IR COVERAGE:
Usually, the IR is integrated into a circular array with several LEDs around the lens.

This very often resulted in a circular overexposed area in the center of the image and underexposed corners due to uneven IR coverage. The rectangular EXIR LEDs provide a much more even coverage across the entire image, eliminating this issue.

3) FEWER PROBLEMS WITH SPIDERS / INSECTS:
Spiders and other insects tend to be attracted to the heat from the hotter IR LEDs in non-EXIR cameras. This problem is lessened with EXIR cameras, especially with flat-faced EXIR cameras, where there is significantly less surface area to touch.

Tecnologia EXIR 2.0

Ottica fissa

This camera features a 2.8mm fixed lens

Menu OSD

The camera has an OSD menu , through which you can manage and adjust some functions such as: AWB, AGC, 3D-DNR etc.
OSD menu control via coaxial cable

Funzione Day/Night Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Esempio Funzione Day/Night
Filtro IR CUT

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Esempio Funzione IR Cut Filter

Funzione AGC Automatic Gain Control The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.
Immagine esempio funzione WDR 120db
Questo DVR presenta ingressi / uscite audio Two-way audio
Garanzia 3 anni This product is covered by a 3 Year Warranty!

Technical data sheet

Model HYU-483
Room
Image Sensor 2 megapixel CMOS
Effective Pixels 1920 x 1080
Frames per second 25fps @1080P
Min. Illumination 0.005 lux F1.2 (AGC ON) / 0 lux IR ON
IR Illumination Smart IR: EXIR 2.0 technology, 20 meters
Lens 2.8mm
Day/Night ICR
OSD-Menu Via coaxial
Backlight Compensation Digital WDR
Power Supply 12V DC (±25%)
Power Consumption 5W
Working Temperature -40°C~+60°C
Mirror Support yes
Dimensions Ø109.8 x 89.75 mm

Further details

Famiglia di prodotti hyundai

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
