Hyu-698 Hyundai PRO series 4 in 1 bullet video surveillance camera with 20-30M IR illuminator for outdoor use. CMOS 1 / 2.9 ”Aptina with DIP switch from 2MP to 1080P, Fixed Lens 2.8mm 4 Technologies in 1 (HDCVI, HDTVI, AHD, CVBS) . Day / Night (ICR), OSD, AWB, MWB, AGC, AES, BLC. IP66 protection
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

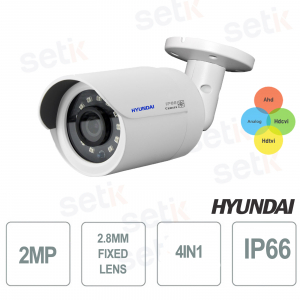

BULLET CAMERA 4 IN1 HYUNDAI 2 MEGAPIXEL 2,8MM - HDTVI / HDCVI / AHD / CVBS
HYU-698 Hyundai 4-in-1 Bullet Outdoor Camera 4 in 1 "HTVI / HDCVI / AHD / CVBS" - Resolution 2 MP - 2.8mm Fixed Lens
IR Illuminator 12 Led Array 20-30MT - ICR Filter
Hyundai 3 Year Extended Warranty! - IP66 protection
Product details
HYUNDAI CATALOG: Are you looking for a HYUNDAI product but couldn't find it on our site? Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email. |
 | 4 TECHNOLOGIES IN 1: This camera features 4 technologies in 1 : interchangeable HDTVI / HDCVI / AHD / CVB.
Switch Technologies: Technologies switchable via DIP Switch |
 | This camera features @ 1080p resolution 1080P (1920X1080) / D1 (704X576)  |
 | This camera features a 2.8mm fixed lens |
 | This camera is equipped with an IR illuminator with Smart IR technology The light emitted by the LEDs is adapted according to the framed object
|
 | SMART DEFOG It allows you to clearly see images taken in particular climatic conditions: rain, smoke and fog   |
| The camera has OSD menu through coaxial (only in CVI mode, range 300m, not compatible with ZVR NEXTGEN) |
 | The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | It allows to adapt the lens to the Night / Day vision and the consequent management of the IR illuminator automatically. |
 | BLC (Back Light Compensation): it is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, number plates, special lights, entrances with shots from inside to outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations  |
 | AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
 | IP66: Guarantees protection from dust and water jets (rain) |
 | A 12VDC power supply is required for the operation of this camera (not included)  |
 | This product is covered by a 3 Year Warranty! |
Data sheet
| Model | HYU-698 |
| Room | |
| Image Sensor | CMOS 1 / 2.9 "Aptina of 2 megapixels |
| Synchronization | Internal |
| Digital Resolution | 1080P (1920x1080) |
| Frames per second | 1080P at 25 frames per second |
| IR Illuminator | 12 leds array: 20/30 Meters |
| Min. Illumination | 0.01 lux F1.2 (color) / 0 lux IR On |
| Video output | HDCVI, HDTVI, AHD, CVBS (conmutable por DIP switch) |
| Lens | 2.8 mm |
| Day / Night | ICR |
| OSD menu | supported |
| AGC | Automatic Gain Control |
| White balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | AGC |
| Backlight Compensation | BLC, digital WDR |
| Noise reduction | 2D; 3D |
| Power Supply | 12V DC |
| Working Temperature | -20 ° C ~ + 60 ° C |
| Power Consumption | <5W |
| Transmission Distance | OSD coaxial control -> only standard CVI (not compatible with ZVR HYU next gen) |
| Protection Level | IP66 |
| Material | Metal Case |
| Dimensions | 65.7 x 62.7 x 172.9 |
