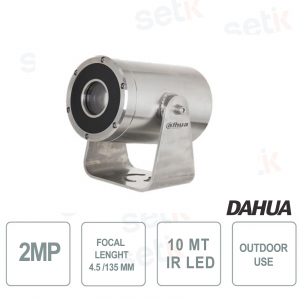

DAHUA SDZW2030U-SL anti-corrosion outdoor IP PoE Bullet camera with 1080P resolution, 1 / 2.8 " STARVIS CMOS image sensor with STARLIGHT technology , 4.5 - 135mm motorized lens, H.265 +, WDR 120dB, RS485, IR LEDs range up to 100m, BNC video output, 2 alarm inputs and 2 outputs, 1 audio input and 1 output, Micro SD slot, Video Analysis, ONVIF, IP68 , stainless steel, suitable for maritime environments.
FIND INSTALLER
€1,791.72
€4,370.04 -59%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
2MP STARLIGHT ANTI-CORROSION BULLET IP CAMERA - MOTORIZED ZOOM - DAHUA
Anticorrosion PoE IP Camera - ahua2 Megapixel 1080P FULL HD - 4.5-135mm varifocal lens with motorized zoom - H.265 +
CMOS Sensor with Starlight Technology - 30X Optical Zoom - WDR 120dB - 100m IR Illuminator
Video Analysis - Audio / Alarm - MicroSD slot - IP68 protection - 24 months warranty
Do you need to monitor sensitive areas but the aggressive environmental conditions present prevent you? Don't despair, Dahua has the solution! Dahua anti-corrosion cameras are able to record everything that happens without the environmental conditions being able to ruin them in any way. Complete protection from dust, rain, splashes and jets of water, corrosion and external ice ANTI-CORROSION CAMERAS
|
Product details
- Outdoor PoE IP anti-corrosion Bullet camera - Dahua
- Anticorrosion Series - 316L stainless steel shell
- Ideal for environments with aggressive environmental conditions ( Meets NEMA® 4X protection criteria )
- 2Megapixel 1080P FULL HD resolution
- 1 / 2.8 ” 2MP Sony STARVIS progressive CMOS image sensor with Starlight technology
- Starlight technology: Color vision even at night!
- 4.5 ~ 135mm motorized lens with 30x optical zoom (16x digital zoom)
- Compression up to H.265 +
- WDR REAL (120dB)
- IR illuminator with a maximum range of 100 meters
- Video Analysis : Line crossing, Intrusion, Abandoned / Lost objects, Face detection, Heat map
- 1 audio input and 1 audio output
- 2 inputs and 2 alarm outputs
- 1 video output ( BNC )
- ONVIF® support
- Motion Detection, ROI (Region of Interest), Defog, EIS
- 1 RS485 port
- MicroSD slot (up to 256GB - not included)
- IP68 protection
- 12V DC, 24V AC power supply
Material: Stainless Steel - Dimensions L180 x H193 x 201.5mm
- 24 months warranty
Data sheet
| Model | SDZW2030U-SL |
| Room | |
| Image Sensor | 1 / 2.8 ”STARVIS ™ CMOS |
| Effective Pixels | 1920 (H) x 1080 (V), 2 Megapixels |
| RAM / ROM | 512M / 128M |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1 / 1s ~ 1 / 30,000s |
| Min. Illumination | Color: 0.005Lux@F1.6; CB / W 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) |
| S / N Ratio | More than 55dB |
| IR Distance | Distance up to 100m (328ft) |
| IR On / Off Control | Auto / Manual |
| IR LEDs | 5 |
| Lens | |
| Focal Lenght | 4.5mm ~ 135mm |
| Max Aperture | F1.6 ~ F4.4 |
| Angle of View | H: 67.8 ° ~ 2.4 ° |
| Optical Zoom | 30 x |
| Focus / Control | Auto / Manual |
| Close Focus Distance | 100mm ~ 1000mm |
| Intelligence | |
| Auto Tracking | N / A |
| IVS | Tripwire, Intrusion, Abandoned / Missing |
| Advanced Intelligent Functions | Face Detection, Heat Map |
| Video | |
| Compression | H.265 + / H.265 / H.264 + / H.264 |
| Stream Capability | 3 Streams |
| Resolution | 1080P (1920 × 1080) /1.3M (1280 × 960) / 720P (1280 × 720) / D1 (704 × 576/704 × 480) / CIF (352 × 288/352 × 240) |
| Frame Rate | Main stream: 1080P / 1.3M / 720P (1 ~ 50 / 60fps) Sub stream1: D1 / CIF (1 ~ 25 / 30fps) Sub stream2: 1080P / 1.3M / 720P (1 ~ 25 / 30fps) |
| Bit Rate Control | CBR / VBR |
| Bit Rate | H.265 / H.264: 448K ~ 8192Kbps |
| Day / Night | Auto (ICR) / Color / B / W |
| Backlight Compensation | BLC / HLC / WDR (120dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto / Manual |
| Noise Reduction | Ultra DNR (2D / 3D) |
| Motion Detection | Support |
| Region of Interest | Support |
| Electronic Image Stabilization (EIS) | Support |
| Defog | Support |
| Digital Zoom | 16x |
| Flip | 180 ° |
| Privacy Masking | Up to 24 areas |
| Audio | |
| Compression | G.711a / G.711Mu / AAC / G.722 /G.726/G.729/ MPEG2-L2 |
| Network | |
| Ethernet | RJ-45 (10Base-T / 100Base-TX) |
| Protocol | IPv4 / IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1 x |
| Interoperability | ONVIF®, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20. User |
| Edge Storage | NAS (Network Attached Storage), Local PC for instant recording, Micro SD card 256GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, DMSS |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | CE: EN55032 / EN55024 / EN50130-4 |
| Interface | |
| Video Interface | 1 port (BNC, 1.0V [pp], 75Ω) |
| RS485 | 1 |
| Audio I / O | 1/1 |
| Alarm I / O | 2/2 |
| Electrical | |
| Power Supply | AC24V (optional) / DC12V (optional) / PoE + (802.3at) |
| Power Consumption | 10W, 25W (Heater on, IR on) |
| Environmental | |
| Operating Conditions | 40 ° C ~ 70 ° C (-40 ° F ~ + 158 ° F) / Less than 95% RH |
| Ingress Protection | IP68 |
| Vandal Resistance | N / A |
| Construction | |
| Casing | 316L stainless steel |
| Dimensions | Φ180mm × 193mm × 201.5mm |
| Net Weight | 6.0kg (13.2lb |
| Gross Weight | 7.3Kg (16.09lb) |
Further details
 | Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, it means having a camera for its own sake that can never be used together with recording systems. |
 | The advantage of a PoE camera is obvious, it allows it to be powered with the same cable with which it communicates without bringing additional power cables and without having to install a separate power supply system, a PoE camera guarantees constant voltages and simple installation |
| Anticorrosion Camera This camera is protected from corrosion by environmental agents thanks to its 316L stainless steel housing .
Classified by the NEMA® ( National Electrical Manufacturers Association) as a 4X degree of protection, that is: "Indoor or outdoor installation: protection against wind blown dust, rain, splashes and jets of water, corrosion; also protection against damage due to external ice formation." It is therefore ideal for video surveillance in difficult and aggressive environmental conditions . IDEAL ENVIRONMENTS: - Oil & gas - Sea areas (ports, beaches, sea coasts), lakes or rivers
|
 | This camera has a resolution of 2 Megapixel 1080P FULL HD: |
| 1 / 2.8 "Sony sensor with STARLIGHT technology. Low brightness, 0.0005Lux visibility, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Backlit structure with 2.9 µm-square unit pixels - High sensitivity (two or more times greater than other products on the market) - Increased sensitivity in the vicinity of an area covered by infrared light - Supports WDR (WDR multiple exposure, DOL-WDR) - Versatile interface (parallel CMOS, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision becomes black / white. With the SENSOR present, night shots will be sharp and in color
|
 | 4.5mm ~ 135mm varifocal lens with motorized zoom
|
| Smart H.265 + Smart H.265 + is the optimized implementation of the H.265 codec which uses a scene adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference frame and intelligent noise reduction useful for delivering high quality video without straining the network. Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression
|
 | Main Stream: 1080P, 1.3MP, 720P (1 ~ 50 ips) Secondary Stream: D1, CIF (1 ~ 25 ips) Third Stream: 1080P, 1.3MP, 720P (1 ~ 25 ips) |
 | Smart IR infrared illuminator with 3 LEDs , REAL range up to 100M for night vision This camera is also equipped with SMART IR technology . |
 | 30x Optical Zoom + 16x Digital Zoom |
 | This camera provides VIDEO ANALYSIS (SMART DETECTION):
|
 | This camera features ADVANCED INTELLIGENT FUNCTIONS: - Face Detection
|
 | This camera has 1 Audio In / 1 Audio Out |
 | This camera with 2 inputs and 2 outputs |
 | Protection level IP68 (Dust / Continuous immersion) |
 | Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. |
 | The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high light / shadow contrast. Fundamental in the case of shots from the inside out, license plates, shaded spots or all situations where there is no homogeneity of light. The higher the db value, the greater the camera's ability to manage the strong difference in the backlight present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db managing very strong contrast levels.  |
 | This camera features the EIS function . The EIS (image stabilizer) especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable  |
 | This camera has 1 video output (BNC) |
 | This camera was made of STAINLESS STEEL |
 | Possibility to insert Micro SD up to a maximum of 256Gb |
 | Power supply NOT included |
 | This product is covered by a 24 month warranty. |
