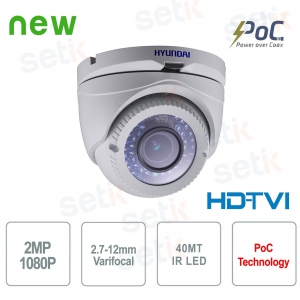

Hyundai PoC 2 MP HDTVI Dome 2.7-12 mm IR video surveillance camera

HYU-390 Hyundai PRO series HDTVI dome video surveillance camera with Smart IR 40M outdoor illuminator, CMOS sensor, 2 MP 1080P resolution and 2.7-12mm lens. Day / Night (ICR), ATW, AGC, DNR, IP66 protection. PoC compatible . Hyundai Security HYU-390

Reference: HYU-390

Brand: Hyundai Security

EAN: 8057457612579

FIND INSTALLER

https://www.setik.biz/en/cameras/3190-hyundai-security-hyu-390-video-surveillance-camera-hyundai-poc-2-mp-hdtvi-dome-27-12-mm-ir.html

€113.18

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 7 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

Videosorveglianza Hyundai Security

Description Product Details Data Sheet Further Details Download

HYUNDAI HDTVI DOME 2 MEGAPIXEL 2.7-12MM OUTDOOR CAMERA - POC COMPATIBLE

HYU-390 Hyundai HDTVI Outdoor Dome Camera
Resolution 2 MP 2Megapixel - 2.7-12mm optics - CMOS sensor
Smart IR LED 40M Illuminator - Day / Night (ICR), ATW, AGC, DNR, IP66 protection
Hyundai 3 Year Extended Warranty! - PoC compatible (coax power supply)

POC - POWER OVER COAX:

Power Over Coaxial "PoC" means providing direct power to the cameras from a PoC DVR , operating through a single point; eliminating the need to connect the camera to a power supply.

This technology allows the high definition video signal and the power required by the device to be routed through a single coaxial cable.

This property saves time and resources in camera installation, as PoC can directly connect the device, eliminating the electrical preparation processes

This innovation will mean saving time and investment in projects , making installation much easier and more profitable.

Diagramma funzionamento PoC

Product details

HYUNDAI CATALOG:

Are you looking for a HYUNDAI product but could not find it on our site?

Don't worry, we can supply you with ALL Hyundai products: consult the CATALOG or contact us by email.

	HD-TVI is one of the technologies present in the world of video surveillance. Introduced by Hikvision , cameras with this technology boast excellent resolutions at both 720p and 1080p. Everything that is possible with other technologies is also possible with tvi, the choice is entirely personal.
	POC - POWER OVER COAX: This new technology makes it possible to power common coaxial cameras directly through the video cable, on which the signal is sent using the same transmission medium. This technical concept is very similar to PoE, already widely used on IP devices and even earlier on old analog telephones. The coverage in terms of distance of this technology depends on the quality of the cable and the power required by the camera, in any case the guaranteed distances are greater than those of the typical 12V power supplies, which have a much greater loss.
	This camera features a resolution of 2Megapixel 2 MP 1080P FULL-HD CMOS sensor
	This camera is equipped with 2.7-12mm varifocal lens
	Smart IR illuminator with a maximum range of 40 meters This camera is also equipped with SMART IR technology . Through this technology, the light emitted by the LEDs is adapted according to the object framed.
	OSD menu not present
	Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows a correct display of images in daylight viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.
	ATW (Auto Tracing White Balance) refers to a modern technology that automatically and continuously adjusts the color balance of the camera according to the color temperature . ATW is a more advanced feature than AWB (Auto White Balance), and is very important as without it, images could be completely unusable. Possibility to adjust the color balance also manually (MWB)
	IP66: Guarantees protection from dust and water jets (rain)
	Movement on 3 axes
	A 12VDC power supply is required for the operation of this camera (not included)
	This product is covered by a 3 Year Warranty!

Data sheet

Model	HYU-390
Room
Image Sensor	2MP CMOS image sensor
Effective Pixels	1920 (H) × 1080 (V)
Min. Illumination	0.01 lux F1.2 color / 0 lux IR On
Lens	2.7 ~ 12mm (102.25 ° ~ 32 °)
Day / Night	ICR
IR Illuminator	Smart IR: 40 meters
Ingress Protection	IP66
Power Supply	12V DC / 350 mA
Power Consumption	4W
Dimensions	Ø130.5 x 102.4 mm
Weight	710 g
Other	PoC (power over coaxial) included that works with ZVR with PoC
