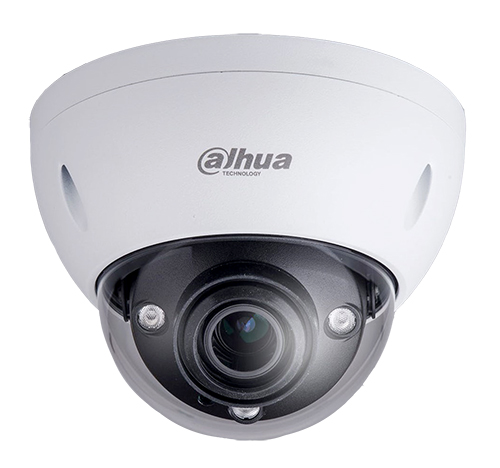

IP Camera ONVIF® PoE 8 MP 4K IR 7-35mm Starlight WDR Dahua

Model
Room
Image Sensor	1 / 2.5 ”8Megapixel CMOS progressive scan
Effective Pixel	3840 (H) x2160 (V)
Scanning System	Progressive
Electronic Shutter speed	Auto / Manual, 1/3 ~ 1 / 100000s
Min. Illumination	0.05Lux / F1.4 (Color, 1 / 3s, 30IRE)

0.2Lux / F1.4 (Color, 1 / 30s, 30IRE)

0Lux / F1.4 (IR on)

S / N Ratio More than 50dB IR Distance Distance up to 100m (328ft) IR On / Off Control Auto / Manual IR LEDs 3 Lens Lens Type Motorized / Auto Iris (HALL) Mount Type Board-in Focal Length 7mm ~ 35mm Max Aperture F1.4 Angle Of view H: 38 ° ~ 14 °, V: 22 ° ~ 8 ° Optical Zoom 5x Focus Control Motorized Close Focus Distance 0.6m Intelligence IVS Tripwire, Intrusion, Object Abandoned / Missing Advanced Intelligent Functions Face Detection Video Compression H.265 + / H.265 / H.264 + / H.264 Streaming Capability 3 Streams Resolution

4K (3840 × 2160) / 6M (3072 × 2048) / 5M (3072x1728) / 5M (2592 × 1944) / 4M (2688 × 1520) / 3M (2048x1536) / 3M (2304 × 1296) / 1080P (1920 × 1080 ) / 1.3M (1280x960) / 720P (1280 × 720) / D1 (704 × 576/704 × 480) / VGA (640 × 480) / CIF (352 × 288/352 × 240)

Frame Rate

Main Stream: 4K (1 ~ 15fps) / 3M (1 ~ 25 / 30fps)

Sub Stream: D1 (1 ~ 25 / 30fps)

Third Stream: 720P (1 ~ 25 / 30fps)

Bit Rate Control CBR / VBR Bit Rate

H.264: 24K ~ 10240Kbps

H.265: 14K ~ 9984Kbps

Day / Night Auto (ICR) / Color / B / W BLC Mode BLC / HLC / WDR White Balance Auto / Natural / Street Lamp / Outdoor / Manual Gain Control Auto / Manual Noise Reduction 3D DNR Motion Detection Off / On (4 Zone, Rectangle) Region Of interest Off / On (4 zones) Electronic Image Stabilization N / A Smart IR Support Digital Zoom 16x Flip 0 ° / 90 ° / 180 ° / 270 ° Mirror Off / On Privacy Masking Off / On (4 Area, Rectangle) Audio Compression G.711a / G.711Mu / AAC / G.726 Network Ethernet RJ-45 (10 / 100Base-T) Protocol

HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4 / v6; QoS; UPnP, NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Compatibility ONVIF®, PSIA, CGI Streaming Method Unicast / Multicast Edge Storage

NAS Local PC for instant recording 128GB Micro SD card

Web Viewer IE, Chrome, Firefox, Safari Max. User Access 10 Users / 20 Users Management Software Smart PSS, DSS, Lechange Smartphone IOS, Android Auxiliary Interface Memory Slot Micro SD, up to 128GB Video Interface 1 Port (For Adjustment only) RS485 N / A Alarm

1 channel In: 5mA 5VDC

1 channel Out: 300mA 12VDC

Audio 1/1 channel In / Out General Power Supply DC12V, AC24V, PoE + (802.3at) (Class 4) Power Consumption <15W Operating Conditions -30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 95% RH Storage Conditions -30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 95% RH Ingress Protection IP67 Vandal Resistance IK10 Casing Metal Dimensions 9159.1mm × 117.9mm (6.26 "× 4.64") Net Weight 0.95kg (2.09lb) Gross Weight 1.20kg (2.65lb)

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif means having a camera as an end in itself that can never be used together with recording systems



This camera supports the ONVIF® standard

This camera features ECO-SAVVY 3.0 technology!

Introduced improvements:

- More powerful chip that combines intelligence, efficiency and ease of use.

- Higher FPS already starting from 1080P resolution

- Wide range of integrated features: intelligent detection, including face detection, tripwire detection and intrusion detection.

- Starlight technology

- WDR enhancement technology (120dB)

- Triple video streams



The internally designed ePoE technology from Dahua adopts advanced 2D-PAM3 modulation from the physical level and realizes full duplex transmissions over 800 meters at a speed of 10 Mbps, or 300 meters at a speed of 100 Mbps via Cat 5 or coaxial cable.

Furthermore, it supports PoE and PoC power technology which has greatly simplified both construction and wiring.

Dahua ePoE technology offers a new way to achieve long distance transmission between IP camera and network switch. It allows a more flexible surveillance system design, improves reliability and saves on construction and wiring costs.

New ULTRA HD 4K Technology !
Even higher resolution than FULL-HD!
More detail available, greater sense of depth and realism.

This camera has a 8Megapixel 8 MP 4K ULTRA-HD resolution :



1 / 2.5 "CMOS STARVIS ™ sensor with STARLIGHT technology.

Low light, color viewing even in night mode



With the addition of the STARVIS feature we have significant advantages:

- Backlit structure with 2.9 µm-square unit pixel

- High sensitivity (two or more times greater than other products on the market)

- Increased sensitivity in the vicinity of an area covered by infrared light

- Supports WDR (multiple exposure WDR, DOL-WDR)

- Versatile interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2)



With the CMOS sensor from Sony it is possible to have color shots even in night mode.

Normally, when entering night mode, color vision becomes white / black.

With the SENSOR present, night shots will be sharp and colorful



Smart H.265 +

Smart H.265 + is the optimized implementation of the H.265 codec which uses an adaptive scene coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction useful for providing high quality video without tiring the network.

Smart H.265 + greatly reduces bit rate and storage requirements compared to standard H.265 compression

Main Flow: 4K (1 ~ 15fps) / 3M (1 ~ 25 / 30fps)
Secondary flow: D1 (1 ~ 25 / 30fps)
Third Flow: 720P (1 ~ 25 / 30fps)

This camera features 7-35mm varifocal lens with motorized zoom

Example of motorized zoom:

Infrared Smart IR illuminator with 3 Array Led , REAL range up to 100M for night vision

Remote visibility on mobile using Dahua's DMSS application.

Cloud function with Lechange (formerly Easy4IP)

This camera provides the VIDEO ANALYSIS (SMART DETECTION):
- Line crossing recognition
- Recognition of lost, abandoned objects

- Intrusion detection



This camera also provides ADVANCED INTELLIGENT FUNCTIONS:

- Face detection

Example image:

This camera has 1x analog video output cvbs (only for settings) ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high contrast light / shadow. Fundamental in the case of shooting from inside to outside, license plates, points in the shade or all situations where there is no homogeneous light.
The higher the value in db, the greater the camera's ability to handle the strong difference of the backlighting present. The common WDRs usually reach 80db, the human eye is able to recognize a difference up to 100db. This model reaches up to 120db managing very strong contrast levels.

This camera has 1 Audio input + 1 Audio output

Compatible with Setik Microphones   MICS1   MICS2   MICS3

This camera has 1 alarm input + 1 alarm output

This camera has a ROI function .

Images from IP cameras are "compressed", so quality is set during recording. Especially on cameras with a very high resolution, it is often necessary to reduce the quality in order to guarantee a reduced bandwidth occupation and to record a greater number of days or cameras.
The ROI allows you to define areas where to set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality thus ensuring a greater definition of the image.

It allows to adapt the lens to night / day vision and the consequent management of the IR illuminator in an automatic way.

The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight conditions. It filters the typical infrared frequencies thus improving the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

The AGC is an integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

BLC (Back Light Compensation): it is one of the 3 possible steps in managing images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with internal-to-external filming, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations

Protection level IP67 (Dust / Diving)

IK 10 is the highest level of protection against direct damage. This allows the use of the camera even if there are risks of vandalism



12V DC power supply not included

Possibility to insert Micro SD card up to a maximum of 128Gb - not included

This product is covered by a 24 month warranty.

Download the English brochure
