Camera bullet HDCVI with 4Megapixel resolution and 3.6mm fixed optics. 1/3 "CMOS image sensor, Smart IR illuminator with 18 SMD leds , Ultra WDR 120dB , BLC / HLC / WDR, Day / Night (ICR), IP67 protection (dust / immersion). OSD Multi-language menu manageable by coaxial, 1 video output (1 HD-CVI or 1 CVBS) Dahua Pro Series HAC-HFW2401S
€74.49
€173.24 -57%![](https://cdn.setik.biz/img/click.png)
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)
BULLET HDCVI CAMERA - 4MEGAPIXEL FIXED OPTICS 3.6MM - ULTRA WDR 120dB - DAHUA
![Made by Dahua Prodotto marchiato Dahua](https://www.setik.biz/img/m/13-prod_large.jpg)
Resolution up to 4Megapixel in real time (25fps) - 3.6mm fixed lens - 1/3 "CMOS sensor
Smart IR illuminator with 18 SMD leds - Ultra WDR 120dB - IP67 protection
12V DC power supply NOT included - HD-CVI systems are not compatible with analog systems
Product details
![Bullet Camera - HAC-HFW2401S Telecamera bullet dahua 4MP , 3,6mm ottica fissa e 18 smd leds](/storage/images/Articoli/HAC-HFW2401S_LOGO.jpg)
- HDCVI Bullet Camera - Dahua
- Technology: HDCVI
- 1/3 "CMOS image sensor
- 4 Megapixel resolution in real time (25fps)
- 3.6mm fixed lens
- Double HD / SD output
- OSD Multi-language menu with coaxial cable control
- Day / Night (ICR), BLC / HLC / WDR
- Ultra WDR 120dB
- Smart IR illuminator with 18 SMD leds (new generation - about 30m)
- IP67 Protection (Dust / Immersion)
- 12V DC power supply (not included)
- Material: Aluminum
- Dimensions: 164.7mm × 70mm × 71.6mm (6.48 "× 2.76" × 2.82 ")
- 24 months warranty
Data sheet
Model | HAC-HFW2401S | |
Room | ||
Image Sensor | 1/3 "CMOS | |
Effective Pixels | 2688 (H) × 1520 (V), 4.1MP | |
Scanning System | Progressive | |
Electronic Shutter Speed | PAL: 1 / 4s ~ 1 / 100,000s | |
Minimum illumination | 0.01Lux / F1.5, 0Lux IR on | |
S / N Ratio | More than 65dB | |
IR Distance | Up to 30m (98feet) | |
IR On / Off Control |
Auto / Manual |
|
IR Leds |
18 |
|
Lens | ||
Lens Type | Fixed lens / Fixed iris | |
Mount Type | Board-in | |
Focal Length | 3.6mm | |
Max openings | F1.5 | |
Angle of view | H: 79 ° | |
Close Focus Distance | 1500mm 59.06 '' |
|
Pan / Tilt / Rotation | ||
Pan / Tilt / Rotation |
Pan: 0 ° ~ 360 ° |
|
Video | ||
Resolution | 4MP (2560 × 1440) | |
Frame Rate | 25fps @ 4MP, 25 / 30fps @ 1080P, 25 / 30fps @ 720P | |
Video Output | 1-channel BNC HDCVI high definition video output & 1-channel BNC CVBS video output | |
Day / Night | Auto (ICR) / Manual | |
OSD Menu | Multi-language | |
BLC Mode | BLC / HLC / WDR | |
WDR | 120dB | |
Gain Control | AGC | |
Noise Reduction | 2D / 3D | |
White Balance | Auto / Manual | |
Smart IR | Auto / Manual | |
Certifications | ||
Certifications |
CE (EN55032, EN55024, EN50130-4) |
|
Electrical | ||
Power Supply |
12V DC ± 25% |
|
Power Consumption |
4.9W Max (12V DC, IR on) |
|
Environmental | ||
Operating Conditions |
-30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 90% RH |
|
Storage Conditions |
-30 ° C ~ + 60 ° C (-22 ° F ~ + 140 ° F) / Less than 90% RH |
|
Ingress Protection & Vandal Resistance |
IP67 |
|
Construction | ||
Casing |
Aluminum |
|
Dimensions |
164.7mm × 70mm × 71.6mm (6.48 "× 2.76" × 2.82 ") |
|
Net Weight |
0.35kg (0.77lb) |
|
Gross Weight |
0.44kg (0.97lb) |
More details

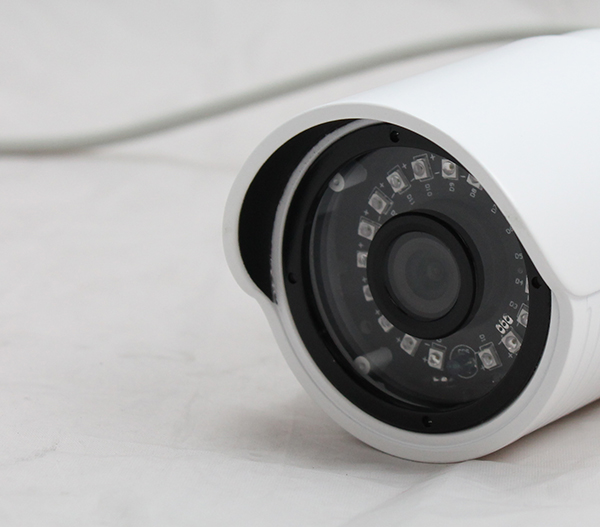

![Matrix - BLAHD2M36IRW Matrice leds SMD BLAHD2M36IRW](/storage/images/Articoli/18SMDLEDS.jpg)
ADVANTAGES:
- - High brightness
- - Reduced energy consumption
- - Small size
- - Long duration
![](https://www.setik.biz/ebay/articoli/BLC_WDR_small.jpg)
![]() |
HD-CVI is the new technology in the world of video surveillance. With the simple replacement of the equipment (Cameras and DVRs) in the analog infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way the same results can be obtained in the IP world but with a high cost containment. Warning: Analog and IP cameras are NOT compatible with HD-CVI DVRs, and HD-CVI cameras are not compatible with Analog DVRs. |
![]() |
HDCVI Pro Series Camera . ![]() |
![]() |
This camera has a 4 Megapixel resolution in real time! @ 25fps |
![]() |
This camera is equipped with a 3.6mm fixed lens |
![]() |
IR illuminator with 18 SMD LEDs (Surface-Mount-Device, new generation LEDs. (30m) |
![]() |
OSD menu on coaxial cable. |
![]() |
Protection level IP67 (Dust / Diving) |
![]() |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): It is the professional solution in cases where it is necessary to operate in conditions of high contrast light / shadow. Fundamental in the case of shooting from inside to outside, license plates, points in the shade or all situations where there is no homogeneity of light. ![]() |
![]() |
Day / Night: allows you to adapt the lens to night / day vision, and the relative automatic management of the IR illuminator, when present. ![]() |
![]() |
The IR CUT FILTER is a mechanical filter that allows a correct visualization of the images in daylight conditions, filtering the typical infrared frequencies. This improves the image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
![]() |
BLC (Back Light Compensation): it is one of the 3 possible steps in managing images with contrast, typical situations are: entrances or exits from parking lots, license plates, special lights, entrances with internal-to-external filming, etc. Light compensation is one of the most complex operations possible, the BLC function allows a discreet adaptation to these situations |
![]() |
12V DC power supply NOT included! ![]() |
![]() |
This camera was made of aluminum |
![]() |
This product is covered by a 24 month warranty. |

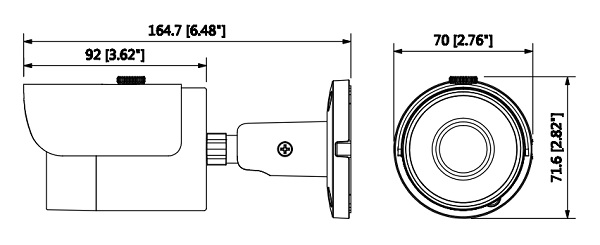

![Dimensions HAC-HFW2401S Dahua Schema dimensioni telecamera videosorveglianza HAC-HFW2401S Dahua](/storage/images/Articoli/HAC-HFW2401S_dimensions.jpg)

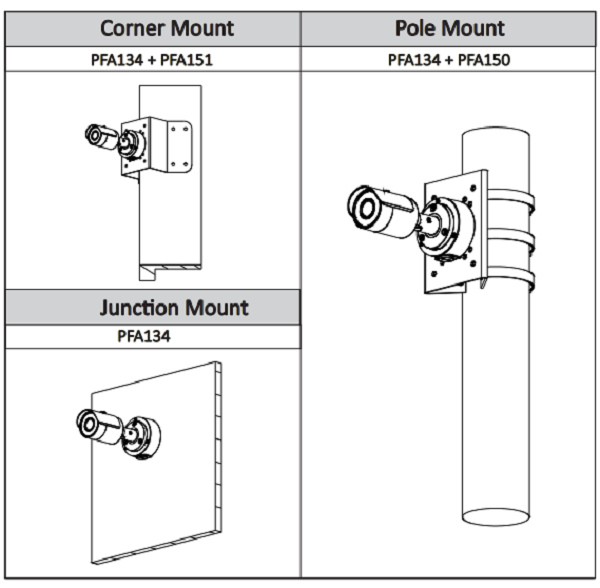

![](/storage/images/Articoli/HAC-HFW2401S_schema.png)
![Resolutions compared Immagine comparativa delle varie risoluzioni](https://www.setik.biz/ebay/img/cctv_resolution_area_600.png)
![](https://www.setik.biz/ebay/img/HDCVI_DIFFERENZE.png)
