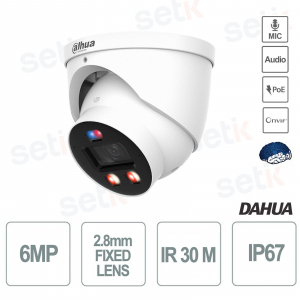

Eyeball WizSense dome camera 6MP WizColor TiOC PRO optics 2.8mm IR 30m - Dahau

Eyeball WizSense dome camera 6MP WizColor TiOC PRO optics 2.8mm IR 30m - Dahau
-57% New

IPC-HDW3649H-AS-PV-PRO WizSense Outdoor Onvif PoE Eyeball Dome Camera WizColor TiOC PRO 1/1.8" CMOS 6 Megapixel. 2.8mm fixed lens. IR 2 LEDs up to 30M. Smart H.264+/H.265+. Day/Night (ICR), WDR 120 dB, ROI, BLC, HLC, 3D DNR. Video Analytics (IVS): Perimeter Protection, Intrusion, Intelligent Search, SMD 4.0 . 1 Audio input/1 Audio output, built-in dual Microphone, built-in speakers. MicroSD slot up to 512 GB. Supports PoE. IP67 protection. SMD Plus. Dahua Technology



Reference: IPC-HDW3649H-AS-PV-PRO

Brand: Dahua

FIND INSTALLER


DAHUA: LOSS LEADER×


 INCREDIBLE DISCOUNTS
on a selection of DAHUA products
 Check out the promo now >>

DAHUA 8X8×


  DAHUA 8MEGAPIXEL
8MEGAPIXEL CAMERAS WITH

 QUANTITY DISCOUNT   AND  FREE SHIPPING!
 DISCOVER THEM NOW >>

CLEARANCE SALE ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR EYEBALL ONVIF® POE DOME CAMERA - 6 MEGAPIXEL WIZCOLOR TIOC PRO - MICROPHONE - PERIMETER PROTECTION - DAHUA

Dahua
ONVIF® PoE Outdoor Eyeball Dome Camera - WizSense WizColor, TiOC PRO Dahua
6Megapixel Resolution - 2.8mm Fixed Lens - 1/1.8" CMOS - Compression up to H.265 - Smart H.264+/H.265+ - SMD Plus
IR Illuminator 2 LED 30M - Day/Night (ICR) - WDR 120dB - ROI - BLC - HLC - 3D DNR - MicroSD Slot (512GB - Not Included) - Double Microphone and speaker - 1 Audio input/1 Audio output - Supports PoE
Video Analytics (IVS): Perimeter Protection, Intrusion, Intelligent Search, SMD 4.0 - IP67 Protection

Product details

IPC-HDW3649H-AS-PV-PRO
  • ONVIF® PoE Outdoor Eyeball Dome Camera - WizSense WizColor, TiOC PRO Dahua
  • Resolution 6Megapixel
  • Fixed Optics 2.8 mm
  • 1/1.8” sensor
  • Video compression up to H.265
  • Triple Stream
  • Day/Night (ICR), WDR 120 dB, ROI, BLC, HLC, 3D DNR
  • Smart IR illuminator 2 LEDs 30MT
  • Video Analysis : Perimeter Protection, Intrusion, SMD 4.0
  • 1 Audio input/1 Audio output
  • Dual Microphone and Built-in Speaker
  • Remote viewing with Smart PSS, DSS, DMSS
  • SMD Plus
  • Micro SD memory slot (Up to 512GB - not included)
  • IP67 protection
  • Power supply NOT included 12V DC/PoE (802.3af)
  • 24 month warranty

Technical data sheet

Model IPC-HDW3649H-AS-PV-PRO
Room
Image Sensor 1/1.8" CMOS
Max. Resolution 3288 (H) × 1850 (V)
ROM 256 MB
RAM 2 G
Scanning System Progressive
Electronic Shutter Speed Auto/Manual 1/3 s–1/100,000 s
Min. Illumination

0.0005 Lux@F1.0 (Color, 30IRE)
0.0004 Lux@F1.0 (B/W, 30IRE)
0 Lux (Illuminator on)

Y/N Ratio >56dB
Illumination Distance Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)
Illuminator On/Off Control Auto/Manual
Illuminator Number 2 (Multi-core (IR + warm) light)
Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens
Lens Type Fixed focal
Mount Type M16
Focal Length 2.8mm
Max. Openings F1.0
Field of View H: 109°; V: 59°; D: 131°
Iris Type Fixed
Close Focus Distance 3.2 m (10.50 ft)
Professional, intelligent
IVS (Perimeter Protection) Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
SMD SMD4.0
AcuPick Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
TO THE SSA Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Compression H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec Smart H.265+/ Smart H.264+
AI Coding AI H.265 (Compression rate ≥25%)
AI H.264 (Compression rate ≥25%)
Video Frame Rate

Main stream: 3288 × 1850@(1 fps–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
third stream: 1920 × 1080 @(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability 3 streams
Resolution 6M (3288 × 1850/3200 × 1800); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bitrate Control

CBR/VBR/ABR

Video Bitrate H.264: 3 kbps–16384 kbps;
H.265: 3 kbps–16384 kbps;
Day/Night Auto (ICR)/Color/B/W
BLC Yes
HLC Yes
WDR 120dB
Scene Self-adaptation (SSA) Yes
White Balance Auto/natural/street lamp/outdoor/manual/regional custom
Gain Control Car
Noise Reduction 3D DNR
Motion Detection OFF/ON (4 areas, rectangular)
Region of Interest (RoI) Yes (4 areas)
Smart Lighting Yes
Smart Dual Light Yes
Defog Yes
Image Rotation 0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower.)
Mirror Yes
Privacy Masking 8 areas
LDC Yes
Audio
Built-in MIC Yes, built-in dual Mic
Built-in Speaker Yes, built-in speaker
Audio Compression G.711a; G.711Mu; G726
Alarm
Alarm Event No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception
Network
Network RJ-45 (10/100Base-T)
SDK and API Yes
Protocol IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Interoperability ONVIF® (Profile S/Profile G/Profile T); CGI; P2P; Milestones; Genetec
User/Host 20 (Total bandwidth: 64M)
Storage FTP; SFTP; Micro SD card (support max. 512G); NAS
Browser IE: IE11, Chrome, Firefox
Management Software Smart PSS Lite; DSS; DMSS; DoLynk Care
Smartphone IOS; Android
Certification
Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Port
Audio Input 1 channel (RCA port)
Audio Output 1 channel (RCA port)
Alarm Input 1 channel in: wet contact, 5 mA 3–5 VDC
AlarmOutput 1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply 12V DC/PoE
Dual Power Backup When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption

Basic: 4.1W (12VDC); 6W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10W (PoE)

Environment
Operating Temperature –40°C to +60°C (–40°F to +140°F)
Operating Humidity ≤95%
Protection IP67
Structure
Casing Metal
Dimensions Φ122.0 mm × 116.1 mm (4.80" × Φ4.57")
Net Weight 0.8kg (1.76lb)
Gross Weight 1.0 kg (2.20 lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE Power Supply The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

AI | Artificial Intelligence
This camera features Artificial Intelligence on board

- Perimeter protection: Intrusion, Line crossing (people & vehicles classification)

AI Camera - Cattura del volto

This camera features the INTELLIGENT FUNCTION:

- Crossing Line

- Intrusion (Support vehicle and human classification)

- Smart Search


Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

6MPX

This camera has a resolution of 6Mpx

Ottica Fissa

This camera features a 2.8mm fixed lens.

Main stream: 3288 × 1850@(1 fps–25/30 fps)
sub stream: 1920 × 1080@(1–25/30 fps)
third stream: 1920 × 1080 @(1–25/30 fps)

Illuminatore IR LED

Quality IR illuminator for better night vision.
Maximum range 30 meters

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.

Full HD

Remote visibility on mobile using Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
BLC

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, shooting of license plates, presence of particular lights etc...).

High Light Compensation Function Icon HLC (High Light Compensation) allows for better light management in the presence of direct light (cars, torches, etc.). It also prevents image blurring attempts.
Example image of HLC High Light Compensation function
Funzione 3D-DNR 3D-NR is the most advanced version of NOIS REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light.
Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 512Gb - not included

Power supply 12V 3A Power supply NOT included
Power supply 12V DC
Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
IPC-HDW3649H-AS-PV-PRO dimensioni
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
