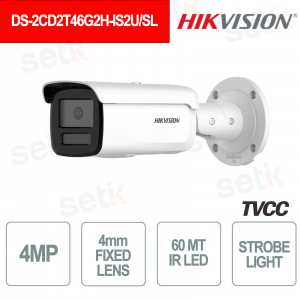

POE IP Bullet Camera 4MP 4 mm IR H.265+ strobe light - Hikvision

-50% New

Hikvision DS-2CD2T46G2H-IS2U/SL IP PoE ONVIF Outdoor Bullet 4MP Camera, 4mm Fixed Lens, 1/3" CMOS sensor, H.265+ , strobe light , Day&Night (ICR), 60M IR illuminator, Micro SD Slot ( UP TO 512GB - NOT INCLUDED ) Triple Stream, ROI, WDR 120dB, BLC, HLC, 3D DNR, AGC, Defog, Motion Detection, Face detection, reset button, IP67 protection, metal.

Reference: DS-2CD2T46G2H-IS2U/SL

Brand: Hikvision

EAN: 6942160482477

FIND INSTALLER

https://www.setik.biz/en/cameras/11558-hikvision-ds-2cd2t46g2h-is2u-sl-poe-ip-bullet-camera-4mp-4-mm-ir-h265-strobe-light-hikvision.html

€231.19

€462.38 -50%

taxes included

LOG-IN AND DISCOVER THE PRICE

Description Product Details Technical Sheet Further Details Download

DS-2CD2T46G2H-IS2U/SL | HIKVISION IP POE 4MP 4MM OUTDOOR CAMERA H.265+ IR 60 METERS BULLET - STROBE LIGHT

Hikvision IP PoE Outdoor Bullet Camera
Resolution: 4MP 4Megapixel - 4mm Fixed Lens - 1/3" CMOS Sensor - H.265+ - Strobe Light
IR illuminator 60M - Day/Night(ICR) - WDR 120dB - AGC - BLC - HLC - 3D DNR - Defog - Motion Detection - Face Detection - Triple Stream
Power supply NOT included - 512GB MicroSD slot (not included) - 24 month warranty

Hikvision IP cameras are characterized by highly professional products with different types of housing, resolution up to 4k, video compression H.265+ and IR up to 80m with EXIR technology. Over the years, Hikvision has launched various series of IP cameras, including the EASY IP SERIES , born from version 1.0, up to version 4.0. Below are the main features of the most significant EASY IP SERIES.

POE (Power Over Ethernet):
The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

Resolution:
This camera features a real-time resolution of 4MP! (2688 × 1520 pixels)
Image sensor 1/3” 4Megapixel progressive scan CMOS

Optics:
This camera features a 4mm fixed lens

H.265+ compression

What is H.265+?

A self-developed intelligent algorithm by Hikvision that can significantly reduce video bitrate based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bitrate control. Optimized for multiple surveillance scenarios, it enables more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras.

IR Infrared Illuminator:
Infrared IR illuminator for better night vision. Range up to 60M

ROI (Region Of Interest):
Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI

Day/Night:
It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.

IR CUT FILTER (ICR):
Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
Immagine esempio IR CUT FILTER

MICRO SD SLOT:

512GB Micro SD Slot ( NOT INCLUDED )

BLC (Back Light Compensation):
It is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations

Click to Enlarge

AGC (Automatic Gain Control):
integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.
Immagine esempio funzione WDR 120db

3D-DNR:
More advanced version of NOISE REDUCTION management. It allows still images both in low light and in motion. The most powerful solution currently available for obtaining maximum results in low light.

Diet:
To operate this camera you need a 12V DC power supply (not included)

IP67 Protection:
Protection from dust and temporary immersion. Suitable for outdoor environments.

Technical data sheet

DS-2CD2T46G2H-IS2U/SL
Room
Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2688 × 1520
Min Illumination	Color: 0.001 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type	Fixed focal lens 4mm
Focal Length & FOV	horizontal FOV 81°, vertical FOV 45°, diagonal FOV 95°
Lens Mount	M12
Iris Type	Fixed
Openings	F1.0
Depth of Field	2.5m to ∞
ILLUMINATOR
Supplement Light Type	IR
Supplement Light Range	Up to 60 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video
Main Stream	50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream	50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 30fps (1280×720, 640×480, 640×360)
Third Stream	50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) 60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream is supported under certain settings.
Video Compression	Main stream: H.265/H.264/H.265+/H.264+ Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Video Bitrate	32Kbps to 8Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Bitrate Control	CBR/VBR
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Audio
Audio Type	Mono sound
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bitrate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8kHz/16kHz/32kHz/48kHz
Environment Noise Filtering	Yes
Network
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
Simultaneous Live View	Up to 6 Channels
API	Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host	Up to 32 users. 3 user levels: administrator, operator and user
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage	NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR)
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10, IE 11, Free live view plug-ins: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch	Yes
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	120dB
SNR	≥ 52dB
Image Enhancement	BLC,HLC,3D DNR,Defog
Privacy Mask	4 programmable polygon privacy masks
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Onboard Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB
Built-in Microphone	Yes, 2 built-in microphones
Built-in Speaker	Max. power consumption: 2 W, max. sound pressure level: 10 cm: 120 dB
Audio	1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key	Yes
Event
Basic Event	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
Smart Event	Scene change detection
Linkage	Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,strobe light
Deep Learning Algorithms
Face Capture	Yes
Premier Protection	Line crossing detection, intrusion detection, region entrance detection, region exiting detection Support alarm triggering by specified target types (human and vehicle)
General
Power	12 VDC ± 25%, 1.4 A, max. 17 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18W
Material	Front cover: Metal, body: Metal, bracket: Metal

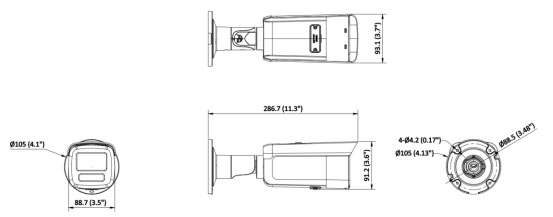

Dimensions	286.7 mm × 93.1 mm × 91.2 mm (11.3" × 3.7" × 3.6")
Package Size	386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
Weight	Approx. 1205 g (2.7 lb.)
With Package Weight	Approx. 1899 g (4.2 lb.)
Storage conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Web Client Language	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Flashing Light	White Light
Approval
EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 RCM: AS/NZS CISPR 32:2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety	UL (UL 60950-1), CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment	CE-ROHS: 2011/65/EU WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013
