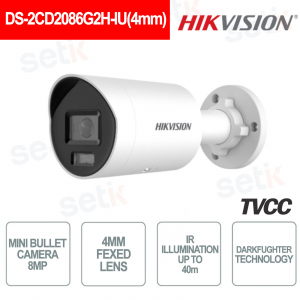

Hikvision DS-2CD2086G2H-IU(4mm) IP ONVIF Outdoor Fixed Bullet Camera 8MP 4K ULTRA-HD , 4mm fixed lens, 1/1.8" CMOS sensor, H.265+. Day&Night (ICR), 40M IR illuminator, Triple Stream, Video Analysis , Face Detection , WDR 120dB , ROI, BLC, 3D DNR, AGC, 512GB MicroSD Slot (NOT INCLUDED) , ANR, Motion Detection, access to Hik-Connect, reset button, IP67 protection, metal.
€253.15
€506.30 -50%
discover the available quantity
|
|
| Resolution: This camera features a resolution of 8MP 4K ULTRA HD in real time! (3840 × 2160 pixels) at 20fps Image sensor 1/1.8” 8Megapixel progressive scan CMOS
|
|
Optics: |
H.265+ compression
A self-developed intelligent algorithm by Hikvision that can significantly reduce video bitrate based on standard H.265 codec. Hikvision's H.265+ reduces transmission bandwidth and storage capacity without impacting video quality, thanks to three key technologies: prediction coding, noise suppression and flexible bitrate control. Optimized for multiple surveillance scenarios, it enables more use of ultra HD surveillance cameras, such as 8MP and 12MP cameras. |
|
IR Infrared Illuminator: |
| Smart Feature-set - Video Analysis: This camera features intelligent Smart functions on board Behavior Analysis: - Line crossing detection - Intrusion - Unattended luggage - Objects removed  Face Detection  |
| WDR 120dB (Wide Dynamic Range): WDR (Wide Dynamic Range): This is the professional solution when you need to operate in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or all situations where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to manage the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong contrast levels.  |
| ROI (Region Of Interest): Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
| Day/Night: It allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
|
| IR CUT FILTER (ICR): Mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.  |
| BLC (Back Light Compensation): It is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a discrete adaptation to these situations |
| AGC (Automatic Gain Control): integrated signal amplifier that allows viewing even in critical conditions. It is automatic and does not require specific settings. |
|
D-WDR (Digital Wide Dynamic Range):  |
|
3D-DNR: |
| MicroSD Slot: Microsd/sdhc/sdxc slot available up to 512GB - NOT INCLUDED |
| Diet: To operate this camera, a 12V DC power supply is required (not included)  |
| DS-2CD2086G2H-IU(4mm) | |
| Room | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Max. Resolution | 3840 × 2160 |
| Min Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON),B/W: 0 Lux with IR |
| Shutter Speed | 1/3s to 1/100,000s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Angle Adjustment | Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360° |
| Lens | |
| Lens Type | Fixed focal lens 4mm |
| Focal Length & FOV | 4 mm, horizontal FOV 90.0°, vertical FOV 45.8°, diagonal FOV 109.4° |
| Iris Type | Fixed |
| Lens Mount | M16 |
| Openings | F1.0 |
| Depth of Field | 3.8 m to ∞ |
| Dori | |
| DORI | 4mm: D: 109m, W: 43m, R: 21m, I: 10m |
| Illuminator | |
| Supplement Light Type |
IR |
| Light Range Supplement |
Up to 40 m |
| Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Video | |
| Main Stream | 50Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 24fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (1280×720, 640×480, 640×360) 60Hz: 30fps (1280×720, 640×480, 640×360) |
| Third Stream | 50Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) 60Hz: 10fps (1920×1080, 1280×720, 640×480, 640×360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bitrate | 32Kbps to 16Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bitrate Control | CBR,VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
| Audio | |
| Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC-LC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3) |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHz/48kHz |
| Environment Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE , SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface , RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage | NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR) |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10, IE 11, Free live view plug-ins: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image | |
| Image Parameters Switch | Yes |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52dB |
| Wide Dynamic Range (WDR) | 120dB |
| Privacy Mask | 4 programmable polygon privacy masks |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Onboard Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Microphone | Yes |
| Reset Key | Yes |
| Interface | |
| Ethernet Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Onboard Storage | Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512GB |
| Built-in Microphone | Yes |
| Event | |
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Linkage | Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| Smart Event | Scene change detection |
| Deep Learning Function | |
| Face Capture | Yes |
| Perimeter Protection | Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle) |
| General | |
| Power | 12 VDC ± 25%, 0.58 A, max. 7 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.5W |
| Material | Front cover: metal, body: metal, bracket: metal |
| Dimensions | Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1") |
| Package Size | 234 mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6") |
| Weight | Approx. 525 g (1.2 lb.) |
| With Package Weight | Approx. 750 g (1.7 lb.) |
| Storage conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Approval | |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, IC: ICES-003: Issue 7 RCM: AS/NZS CISPR 32: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67 (IEC 60529-2013) |
