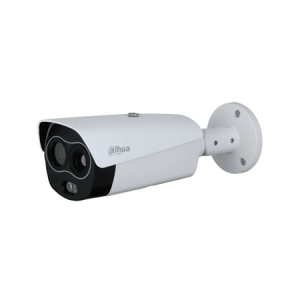

Thermal-Visible Camera-4MP-Optical Visible 6mm Thermal 35mm


Dahua - TPC-BF4441-B35F8-BW-ZH-S2 - Thermal + visible hybrid camera - S2 version - IP POE ONVIF - Double lens and double sensor - Thermal camera: 400x300 thermal resolution - 35mm fixed lens - Visible camera: 6mm fixed lens, 1/2.7" 4MP CMOS sensor (2688x1520) - H.265 Codec - 30m IR illuminator - Day/Night (ICR), WDR, 2D/3D-NR, Defog, Audio and Alarm - 512GB MicroSD slot (not included) - Video Analysis + Artificial Intelligence with perimeter detection - ePoE support - RS485 - 100M RJ45 LAN - BNC video output - IP67 protection, ideal for outdoor use.

Reference: TPC-BF4441-B35F8-BW-ZH-S2

Brand: Dahua

FIND INSTALLER


HYBRID THERMAL BULLET CAMERA WITH DUAL LENS AND DUAL SENSOR - VIDEO ANALYSIS - PERIMETER PROTECTION - AUDIO - ALARM - TPC-BF4441-B35F8-BW-ZH-S2 - S2 VERSION

Made by Setik
Hybrid Thermal + Visible Outdoor POE ONVIF IP Camera - Dahua TPC-BF4441-B35F8-BW-ZH-S2 S2 Version - Dual-Lens , 35mm thermal lens + 6mm visible lens / Vanadium oxide uncooled focal plane sensor thermal sensor and 4MP 2688x1520p CMOS visible camera sensor - IR illuminator up to 30m - H.265/H.264 Codec - Dual Stream (visible camera) + Dual Stream (thermal camera) - 1x Audio input + 1x Audio output - 2x Alarm inputs + 2x Alarm outputs - RS-485 - MicroSD Slot - Card up to 512GB (not included) - BLC, HLC, WDR, 2D/3D-NR, Digital Defog - 100M RJ45 interface - RS485 - Intelligent functions with perimeter protection - Vehicle detection (up to 100m) - RS485 - 2x Audio inputs + 2x Alarm outputs - RS-485 - 2x Video inputs + 2x Video ... up to 2745m) and people (up to 1029m) - Video Analysis with intrusion and line crossing detection - IP67 protection ideal for outdoor use - 24 month manufacturer's warranty!

Product details

  • Hybrid Thermal ONVIF POE IP Bullet Camera - Dahua - TPC-BF4441-B35F8-BW-ZH-S2
  • S2 Version
  • Dual-Lens Technology: Dual optics: thermal 35mm (11.1°x8.3°) / visible 6mm (41.3°x23.1°)
  • Dual-Sensor Technology: 1/2.7" 4MP 2688x1520 CMOS sensor (visible camera) + Vanadium Oxide uncooled focal plane sensor (thermal camera)
  • Resolution: 400 x 300 (thermal optical) / 2688x1520 4MP ( visible optical )
  • Visual spectrum from 8 to 14µm
  • Integrated Video Analysis (Line Crossing, Intrusion, Object Filtering (People / Vehicles))
  • People detection up to 1029m / Recognition up to 264m / Identification up to 132m
  • Vehicle detection up to 2745m / Recognition up to 686m / Identification up to 243m
  • Sensitivity 40mK
  • 19x digital zoom
  • ROI, Motion Detection, BLC, HLC, 2D/3D-DNR,WDR, AGC, day/night
  • IR illuminator up to 30 meters
  • 2 alarm inputs and 2 alarm outputs
  • 1 audio input and 1 audio output
  • MicroSD-Card slot up to 512GB (not included)
  • ePoE Protocol
  • RJ45 100M LAN Interface
  • RS485 port
  • BNC video output
  • Power supply: 12V DC (±20%) / PoE / ePoE
  • Consumption: 3.96W ~ 11W
  • Operating temperature: -30°C to +70°C
  • Storage temperature: -40°C to +70°C
  • Relative humidity: <95%
  • Dimensions: 103.5 (W) x 91.6 (H) x 279.1 mm
  • Weight 1.4Kg
  • 24 month manufacturer's warranty

Technical data sheet

Thermal Dual Camera 35mm + Visible 6mm
Model Description
Resolution 4 MP
Protection Level IP67
Compatibility ePoE, MicroSD, Perimeter Protection
Thermal Resolution 400x300
Detection Range (People) Up to 1029m
Detection Range (Vehicles) Up to 2745m
Thermal Optics 35mm (11°x8°)
Visible Optics 6mm (41°x23°)
Day/Night Mode ICR, 0.01/0.001 lux, IR 30m
Perimeter Protection Line Crossing and Intrusion Detection
Audio 1 input / 1 output
Alarm 2 inputs / 2 outputs
Power Supply 12V / PoE / ePoE
Operating Temperature -30°C to +70°C
Dimensions 103.5 (W) x 91.6 (H) x 279.1 mm
Weight 1.4 kg

Further details

Thermal Camera... what is it? and how to choose it?

Read our article!

PoE Power Supply
The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
Standard ONVIF® Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is a THERMAL CAMERA .


Sensitivity <40mk

Visual spectrum from 8 to 14µm

Thermal camera resolution 400x300

Dual-Lens Technology!
This camera is equipped with 2 lenses , a 35mm thermal one and a 6mm visible one.

  • People detection up to 735m / Recognition up to 190m / Identification up to 95m
  • Detection of mobile vehicles up to 1960m / Recognition up to 490m / Identification up to 245m

4MP resolution

Visible camera resolution 4MP 2688x1520p

1/2.7" 4MP progressive scan CMOS sensor

TLC_FIXED_lens.jpg Fixed visible camera optics, 6mm.
IR Illuminator 20 MT IR illuminator up to 30m.

This camera features SMART DETECTION
- Crossing Line

- Intrusion

- People / Vehicle Classification

- Smoke Detection

- Detection of hot and cold areas

- Fire Detection & Alarm

This camera can detect the presence of fire and measure its temperature.

This camera features BNC video output

This camera features 1 RS-485 port

Full HDThis Camera has 2 Alarm Inputs and 2 Alarm Outputs
Ingresso Audio This camera has 1 input + 1 Audio Output
Protezione IP67 contro polveri e immersioni IP67: Guarantees protection from dust and water jets (rain)
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example
Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 512GB

Dual Encoding This product is covered by a 24 month warranty.
