Dahua HAC-HMW3200-S5 HDCVI camera special for vehicles with 20m Smart IR. 1/2.7” 2MP CMOS. HDCVI video output with M12 aviation connector. 2.8mm fixed lens - ICR filter. OSD, AWB, AGC, BLC, HLC, Digital WDR, 2D-DNR, mirror mode. Built-in microphone - IP67 protection - 12V DC.
FIND INSTALLER
€65.58
€152.50 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

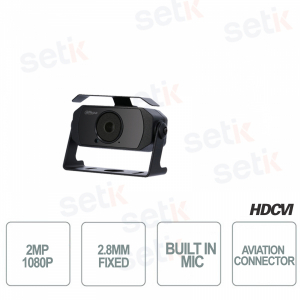

HD CVI 2 MEGAPIXEL 2.8MM VEHICLE CAMERA - MOBILE DAHUA
1080P 2MP FULL HD Resolution - 2.8mm fixed lens - 1/2.7" CMOS sensor - 4in1 CVI/CVBS/AHD/TVI switchable on aviation type connector -
20M Smart IR illuminator - Day/Night (ICR) - DWDR - 2DNR - Mirror Mode - Privacy Masking - On-board microphone - Shock Proof -
Ideal for installation on moving vehicles - Power supply NOT included - 24 month warranty - Casing made of metal.
Product details
- Fixed optics 2.8mm
- 1/2.7" 2Megapixel CMOS image sensor
- Smart IR illuminator with 1 LED (approximately 20m)
- Power supply: 12V ±30% DC
- Suitable for indoor and outdoor environments
- 24 month manufacturer's warranty
Technical data sheet
| HAC-HMW3200-S5 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.7 inch CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 1920 (H) x 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | 2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | PAL: 1/25 s–1/100000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Y/N Ratio | >65dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.02 Lux/F2.0, 30IRE, 0 Lux IR on | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 20 m (65.6 ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Car; manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator Number | 1 (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt/Rotation Range | Tilt: 0°–180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens Type |
Intelligent Design | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SHOCKPROOF - EN50155 Vibration is unavoidable in mobile installations. In order to avoid image or connection errors, the hardware structure of the mobile camera is shockproof with the certification of EN50155 . In addition, the mobile camera adopts M12 aviation connector for stable connection with MCVR.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This camera is a QUADRIBRID (4 integrated technologies) Switch Technologies: The camera can switch from HDCVI to HDTVI, AHD or Analog via an on-board aviation connector. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | HD-CVI is the new technology in the world of video surveillance. With the simple replacement of the devices (Cameras and DVR) in the analog infrastructure, the resolution can reach up to 1920X1080 (FULL-HD). In this way, the same results as the IP world can be obtained but with a high cost containment. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This camera has a resolution of 2Megapixel 2 MP 1080P FULL HD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This camera features a 2.8mm fixed lens | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Smart IR illuminator with 1 LED (range approx. 20 meters) Smart IR Technology | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD menu is multi-lingual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This camera is equipped with an on-board microphone | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Allows you to adapt the lens to Night/Day vision
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | 2D-NR handles NOIS REDUCTION. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Protection level IP67 (Dust / Immersion) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | DC12V power supply NOT included in the package.  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This camera is made of METAL. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | This product is covered by a 24 month warranty. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
