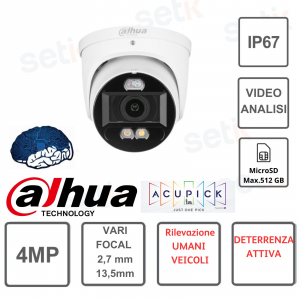

4MP Varifocal Lens Camera 2.7-13.5mm Smart Dual Light Active Deterrence - Dahua

-57%

IPC-HDW3449H-ZAS-PV-S5 Dahua AI Version S5 Outdoor IP Camera Onvif PoE with Video Analysis , 4 Megapixel 4MP , 1/2.7" CMOS sensor Active deterrence , 2.7-13.5mm motorized varifocal lens, compression up to H.265+ . Smart IR illuminator 2 LEDs up to 50m and 2 warm LEDs up to 40m , Day/Night Auto(ICR)/Color/B/W, WDR 120dB, Perimeter protection, MicroSD slot (Max.256 - Not Included ), IP67

Reference: IPC-HDW3449H-ZAS-PV-S5

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/10792-dahua-ipc-hdw3449h-zas-pv-s5-4mp-camera-varifocal-lens-27-135mm-smart-dual-light-active-deterrence-dahua.html

€309.51

€719.80 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Sheet Further Details Download

ONVIF® POE OUTDOOR IP CAMERA - 4 MEGAPIXEL WITH VIDEO ANALYSIS - VARIFOCAL LENS - PERIMETER PROTECTION - ACTIVE DETERRENCE - S5 VERSION - DAHUA

ONVIF® PoE Outdoor IP Camera S5 Version - TiOC

Dahua 4 Megapixel Resolution - 2.7-13.5mm Varifocal Lens - 1/2.7" CMOS Active Deterrence - Compression up to H.265+

Smart IR illuminator 2 LEDs up to 50m and 2 warm LEDs up to 40m - Day/Night Auto (ICR)/Color/B/W - WDR 120dB - MicroSD Slot (256GB - Not Included) - Microphone
Video Analytics: Perimeter Protection, Intrusion (Vehicle and Human Classification), Intelligent Search, AcuPick, AI SSA

Product details

Onvif PoE Outdoor IP AI Camera - Dahua
S5 Version
Resolution 4Megapixel 4MP
Varifocal optics 2.7-13.5mm
1/2.7” CMOS sensor
Active deterrence
Video compression up to H.265+
Triple Stream
SMD4.0
WDR 120dB - Day/Night (ICR) - 3D NR,BLC, HLC
Smart IR illuminator 2 LEDs up to 50m and 2 warm LEDs up to 40m ,
Artificial Intelligence : Perimeter Protection, Intrusion, SMD 4.0
AcuPick Dahua AcuPick technology is a video search engine that uses both front-end and back-end AI to quickly locate the information you need. You can use it to find a lost person, locate a specific vehicle, or retrieve video evidence needed to report an accident.
Remote viewing with Smart PSS, DSS, DMSS
Micro SD memory slot (Up to 256GB - not included)
IP67 protection (indoor/outdoor)
Material: Metal
Power supply NOT included
24 month warranty

Technical data sheet

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

512GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

> 56 dB

Illumination Distance

Up to 50 m (164.64 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ16

Focal Length

2.7mm–13.5mm

Max. Openings

F1.0

Field of View

H: 103°–33°
V: 54°–18°
D: 124°–38°

Iris Control

Fixed

Close Focus Distance

1.5 m (4.92 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD4.0

Less false alarm, longer detection distance

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Quick Pick

With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events

TO THE SSA

Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

Smart Codec

Smart H.265+; Smart H.264+

AI Coding

AI H.265; AI H.264

Video Frame Rate

Main stream: 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream:1920 × 1080@(1–25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296/2048 × 1536); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bitrate Control

CBR/VBR

Video Bitrate

H.264: 32 kbps–8192 kbps;
H.265: 32kbps–8192kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Lighting

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in dual Mic

Built-in Speaker

Yes, built-in speaker

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; defocus detection;voltage detection; external alarm; SMD; security exception

Network

Network Port

RJ-45 (10/100Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

20 (Total bandwidth: 72M)

Storage

FTP; SFTP; Micro SD card (support max. 256GB); NAS

Browser

IE: IE8/9/11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN 62368-1;
CE-EMC: Electromagnetc Compatbility Directive 2014/30/EU

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: wet contact, 5 mA 3–5 VDC

AlarmOutput

1 channel out: wet contact, 300 mA 12 VDC

Power

Power Supply

12VDC/PoE (802.3af)

Power Consumption

Basic: 4W (12VDC); 5W (PoE)
Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.5 W (12 VDC); 10.6W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67

Structure

Casing Material

Metal

Product Dimensions

127.6 mm × Φ122.0 mm (5.02" × Φ4.80")

Net Weight

885g (2.0lb)

Gross Weight

1060g (2.3lb)

Further details

Questo prodotto rispetta lo standard Onvif

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

This camera features the INTELLIGENT FUNCTION:

- Crossing Line

- Intrusion (Support vehicle and human classification)

- Smart Search

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

This camera has a resolution of 4Mpx

This camera features a 2.7-13.5mm Varifocal lens

Main stream: 2688 × 1520@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
Third stream: 1920 × 1080@(1–25/30 fps)

Quality IR illuminator (x2) for better night vision.
Maximum range 50 meters

Warm Light (x2) maximum range up to 40 meters

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.

Dahua AcuPick technology is a video search engine that effectively uses AI, both front-end and back-end, to quickly locate the information you need. Use it to find a lost person, locate a specific vehicle, or find video evidence needed to report an accident.

Remote visibility on mobile using Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.

Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROI
