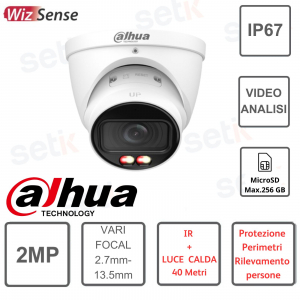

Dahua IP POE Eyeball 2MP Varifocal 2.7-13.5mm Smart Dual Light 40m Camera

Dahua Camera - IPC-HDW2249T-ZS-IL Eyeball IP ONVIF POE mini dome - 2MP 2Megapixel 1080p FULL HD resolution - 1/2.8" CMOS - 2.7-13.5mm carifocal lens - IR 40m 2 (Multi-core (IR + warm) light) - Smart H.265+ Codec - Dual Stream - BLC - HLC - WDR 120dB - ROI. - 3D NR - Video Analysis - WizSense - Integrated microphone - Event alarm - 256GB MicroSD slot (not included) - IP67 outdoor protection from dust and splashes.

108.3mm × Φ122mm

Reference: IPC-HDW2249T-ZS-IL

Brand: Dahua

FIND INSTALLER

Description Product Details Technical Sheet Further Details Download

2 MEGAPIXEL EYEBALL IP POE ONVIF® VARIFOCAL MOTORIZED IP CAMERA 2.7-13.5MM - VIDEO ANALYSIS - MICROPHONE - DAHUA - IPC-HDW2249T-ZS-IL

ONVIF® PoE Eyeball IP camera - Outdoor - Dahua -IPC-HDW2249T-ZS-IL
2MP Resolution - 2.7mm-13.5mm Motorized Varifocal Lens - Compression up to H.265+ - 1/2.8" CMOS Sensor
Illuminator 2 (Multi-core (IR + warm) light) 40Meters - WDR 120dB - BLC - HLC - 3D NR - Mirror - Privacy Masks -WIZ SENSE Video Analysis : perimeter protection, intrusion detection, Smart Search, SMD plus - Built-in microphone - Event alarm -
256GB Micro SD Slot (not included) - RJ45 100M - IP67 Outdoor Protection - 24 Month Warranty

Tecnologia WizSense

WIZSENSE TECHNOLOGY:
Launched by Dahua Technology, WizSense is a series of full-range AI products and solutions that adopt independent AI chip and deep learning algorithm. It can recognize human and vehicle in an image with high precision, allowing users to focus on real targets. Based on Dahua's advanced technology, WizSense makes your video intelligent, simple and inclusive.

Intelligent refers to WizSense based on AI chip and deep learning algorithm. It provides various functions that realize accurate alarms for people and vehicles, as well as rapid target search, maximizing resources to increase overall efficiency.
Simple means that WizSense offers easy setup, especially for SMD Plus which can be enabled with just one button. It makes the daily work of the customers easier and also empowers them to make better business decisions.
WizSense Inclusiveness is the idea that everyone gets opportunities and benefits from AI. With affordable pricing and easy setup of Dahua WizSense, AI is no longer limited to the ivory tower, but is instead applied to real-world scenarios.

Product details

Eyeball IP Camera - Outdoor IP ONVIF® PoE - Dahua - IPC-HDW2249T-ZS-IL
Resolution: 2 MP-2 MEGAPIXEL- 1920(H) × 1080(V)
Image Sensor 1/2.8" 2MP CMOS
Motorized varifocal lens: 2.7mm-13.5mm
Video compression up to H.265+
Dual Stream
Functions: WDR(120dB) , Day/Night(ICR), 3DNR, BLC, 3DNR, Mirror Mode, Privacy Masking
Motion Detection
Video Analysis: Line Crossing, Intrusion
Illuminator 2 (Multi-core (IR + warm) light) up to 40m
Built-in microphone
IP67 Protection (Dust/Immersion)
Suitable for indoor/outdoor environments
PoE protocol supported
MicroSD slot (up to 256GB not included)
Dimensions: 108.3mm × Φ122mm
Material: metal
Operating temperature: -30 °C to +60 °C
Net weight: 0.69 Kg
24 Months Italian Warranty

Technical data sheet

Room

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.5 (Color, 30 IRE)
0.0002 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

?56 dB

Illumination Distance

Up to 40 m (131.23 ft) (IR)
Up to 40 m (131.23 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

2 (Multi-core (IR + warm) light)

Angle Adjustment

Pan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ14

Focal Length

2.7mm–13.5mm

Max. Openings

F1.5

Field of View

H: 109°–30°; V: 56°–17°; D: 131°–35°

Iris Control

Fixed

Close Focus Distance

0.8 m (2.62 ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps)
sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bitrate Control

VBR;CBR

Video Bitrate

H.264: 32 kbps–6144 kbps;
H.265: 12kbps–6144kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Lighting

Yes

Smart Dual Light

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; defocus detection; SMD; security exception

Network

Network Port

RJ-45 (10/100Base-T)

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S & Profile T & Profile G); CGI

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256GB)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Video encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12VDC; PoE (802.3af)

Power Consumption

Basic: 2.3W (12VDC), 2.8W (PoE);
Max.: 7.8 W (12 VDC), 9.3 W (PoE) (H.265 + intelligence on + WDR + warm light intensity)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95% (RH), non-condensing

Storage Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Storage Humidity

≤95% (RH), non-condensing

Protection

IP67

Structure

Casing Material

????? fuzucong ?-->

Metal

Product Dimensions

108.3 mm × Φ122 mm (4.26" × Φ4.80")

Net Weight

0.69 kg (1.52 lb)

Gross Weight

0.86 kg (1.89 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports Onvif version!
	The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
	This camera features a resolution of 2 Megapixel, 1920x1080p progressive scan!
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	This camera features 2.7mm-13.5mm motorized varifocal lens
	Infrared Illuminator with LED + Warm Light and 40 meter range
	Remote visibility on mobile using Dahua DMSS application.
	This camera features VIDEO ANALYSIS (IVS) functions: - Line crossing recognition - Intrusion recognition - SmartSearch
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	It allows you to adapt the lens to Night/Day vision and the consequent automatic management of the IR illuminator.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (Entrance or exit of parking lots, shooting of license plates, presence of particular lights etc...).
	3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and in motion, the most powerful solution currently available for obtaining maximum results in low light.
	This camera is equipped with an on-board microphone
	Possibility to insert Micro SD up to a maximum of 256Gb - not included
	Protection level IP67 (Dust / Immersion)
	12V DC power supply NOT included!
	This product is covered by a 24 month warranty.
