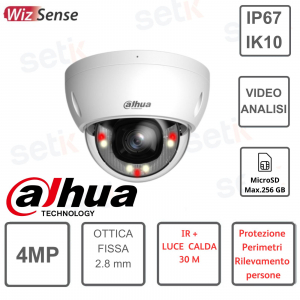

4MP Smart Dual Light Dome IP Camera Fixed Lens 2.8mm IR30m Video Analysis - Dahua

Wizsense Series | Dahua IPC-HDBW2449E-S-IL 4Megapixel 4MP Onvif PoE IP outdoor dome camera, 2.8mm lens, 1/2.9" CMOS sensor. Smart Dual Light IR Illuminator with 3IR LED + 4 warm lights with maximum range 30MT and on-board intelligence : Perimeter Protection , SMD Plus, Smart Search . WDR 120dB, Motion Detection, ROI, BLC, HLC. Built-in microphone, 256GB MicroSD slot (not included). IP67 / IK10 protection. Power supply NOT included. Dimensions: 81.0 mm × Φ109.9 mm

Reference: IPC-HDBW2449E-S-IL

Brand: Dahua

FIND INSTALLER

Description Product Details Technical Sheet Further Details Download

IPC-HDBW2449E-S-IL | 4MEGAPIXEL 2.8MM SMART DUAL LIGHT POE IP DOME CAMERA ONVIF® - MICROPHONE

Dahua Dome IP ONVIF® PoE Camera - Wizsense Series |

IPC-HDBW2449E-S-IL

4Megapixel Resolution - 2.8mm Fixed Lens - 1/2.9" CMOS Sensor
Smart Dual Light IR Illuminator (3 IR LED + 4 Warm Lights) up to 30MT - Built-in Microphone - WDR 120dB
Intelligence on board: Perimeter Protection, SMD plus, Smart Search - Power supply NOT included - 24 months warranty - IP67/IK10 protection

Dahua Smart Dual Light Technology: What is it?

Dahua Smart Dual Light technology adopts intelligent algorithm to accurately detect targets. The IR illuminator is normally on at night. When the target is detected by the camera, the warm light turns on and the camera records the color video and key event information. When the target is out of the monitored area, the warm light turns off and the IR illuminator turns on again, helping to reduce light pollution in the area.

Product details

ONVIF® PoE Outdoor AI IP Camera - Dahua - IPC-HDBW2449E-S-IL
Resolution 4Megapixel 4MP 2688x1520p
Fixed optics 2.8mm
1/2.9" CMOS sensor
Video compression up to H.265+ Smart Codec
Double Video Stream
Double lighting
3xIR LED up to 30m
4x warm lights up to 30m
WDR 120dB - BLC - HLC - 3D NR - Mirror - Privacy Mask - Image rotation - Motion Detection
Artificial Intelligence : Perimeter / Intrusion Protection. / Smart Seacrh on NVR
Built-in microphone
Micro SD memory slot (Up to 256GB - not included)
IP67 protection (indoor / outdoor) IK10 (anti-vandalism)
RJ45 10/100M Base T Ethernet LAN
Dimensions: 81.0mm × Φ109.9mm
Weight: 0.35Kg
Supported operating temperature: –40°C to +60°C
Material: Made with Metal Case
Power supply NOT included
Power: 12 VDC/PoE (802.3af)
24 month manufacturer's warranty

Technical data sheet

Room

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.006 lux@F1.6 (Color, 30 IRE);

0.0006 lux@F1.6 (B/W, 30 IRE);

0 lux (Illuminator on)

Y/N Ratio

?56 dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)

Up to 30 m (98.43 ft) (Warm light)

Illuminator On/Off Control

Auto;Manual

Illuminator Number

3 (IR LED); 4 (Warm light)

Angle Adjustment

Pan: 0°–355°;

Tilt: 0°–65°;

Rotation: 0°–355°

Lens

Lens Type

Fixed focal

Lens Mount

M12

Focal Length

2.8mm

Max. Openings

F1.6

Field of View

2.8mm: H: 101°; V: 54°; D: 120°

Iris Control

Fixed

Close Focus Distance

2.8mm: 1.1m (3.61ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SMD

SMD Plus

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 2688 × 1520 @ (1–20 fps)/2560 × 1440@(1–25/30 fps)

Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bitrate Control

VBR;CBR

Video Bitrate

H.264: 32 kbps–6144 kbps;

H.265: 12kbps–6144kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto/Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Lighting

Yes

Smart Dual Light

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 ×1520 resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes, built-in Mic

Audio Compression

G.711a; G.711Mu; PCM; G.726

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception

Network

Network Port

RJ-45 (10/100Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S & Profile G & Profile T); CGI

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

Smart PSS Lite; DSS; DMSS; DoLynk Care

Mobile Client

iOS;Android

Cyber Security

Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU

Power

Power Supply

12VDC/PoE (802.3af)

Power Consumption

Basic: 2.4W (12VDC), 3W (PoE);

Max.: 6.6 W (12 VDC), 7.9 W (PoE) (H.265 + intelligence on + WDR + illuminator intensity)

Environment

Operating Temperature

–40 °C to +60 °C(–40 °F to +140 °F)

Operating Humidity

≤95%(RH), non-condensing

Storage Temperature

–40 °C to +60 °C(–40 °F to +140 °F)

Storage Humidity

≤95%(RH), non-condensing

Protection

IP67; IK10

Structure

Casing Material

Metal

Product Dimensions

81.0 mm × Φ109.9 mm (3.19" × Φ4.33")

Net Weight

0.35 kg (0.77 lb)

Gross Weight

0.50 kg (1.10 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible
	The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
	AI \| Artificial Intelligence This camera features Artificial Intelligence on board - Perimeter protection: Intrusion, line crossing (the two functions support accurate classification and detection of vehicles and human) - Smart Search: Work together with Smart NVR to perform smart search, event extraction and event video merging.
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	This camera has a resolution of 4Megapixel! Resolution 2688 (H) × 1520 (V) progressive scan
	This camera features a 2.8mm fixed lens
	Infrared Illuminator with Smart Dual Light Technology Dual lighting: 3xIR +4 Warm Lights Maximum range: IR: up to 30m (98.43ft) Warm Lights: up to 30m (98.43ft) Smart Dual Light Technology: Smart Dual Light (Default): Switches between IR illuminator and warm light when a target is detected IR Mode (Optional): Only IR illuminator is turned on. It is suitable for scenes where no additional warm light is required, significantly reducing light pollution. Warm light mode (optional): Only warm light is on. It is suitable for scenes that require color video shooting.
	This camera is equipped with an on-board microphone !
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	IP67 level protection, ideal for outdoor use.
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism

	Metal body.
	Possibility to insert Micro SD up to a maximum of 256Gb - not included
	Power supply NOT included. Power supply: 12V DC.
	This product is covered by a 24 month warranty.
