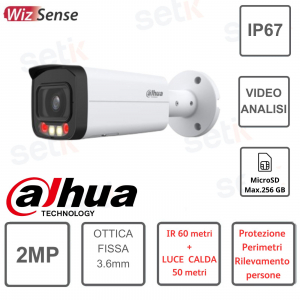

2MP Smart Dual Light Fixed Lens IP Bullet Camera 3.6mm IR60M - Dahua

-57%

Wizsense Series | Dahua IPC-HFW2249T-AS-IL 2Megapixel 2MP Onvif PoE outdoor IP bullet camera, 3.6mm lens, 1/2.8" CMOS sensor . Smart Dual Light IR illuminator with IR up to 60 meters and carda light up to 50 meters and on-board intelligence : Perimeter Protection and Smart Search . WDR 120dB, Motion Detection, ROI, BLC, HLC, ROI. Integrated microphone, 256GB MicroSD slot (not included), Audio and Alarm Inputs/Outputs. IP67 and IK10 protection (optional). Power supply NOT included. 238.5 mm × 90.7 mm × 90.7 mm

Reference: IPC-HFW2249T-AS-IL

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/10786-dahua-ipc-hfw2249t-as-il-bullet-camera-ip-2mp-smart-dual-light-fixed-optics-36mm-ir60m-dahua.html

€136.92

€318.42 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

IPC-HFW2249T-AS-IL | POE IP BULLET CAMERA ONVIF® 2MEGAPIXEL 3.6MM SMART DUAL LIGHT - MICROPHONE

Dahua Bullet IP ONVIF® PoE Camera - Wizsense Series | IPC-HFW2249T-AS-IL
2Megapixel Resolution - 3.6mm Fixed Lens - 1/2.8" CMOS Sensor
IR Illuminator Smart Dual Light IR up to 60 meters and card light up to 50 meters - Built-in Microphone - Audio and Alarm Inputs/Outputs - WDR120dB
Intelligence on board: Perimeter Protection and Smart Search - Power supply NOT included - 24 months warranty - IP67 and IK10 protection (optional)

Dahua Smart Dual Light Technology: What is it?

Dahua Smart Dual Light technology adopts intelligent algorithm to accurately detect targets. The IR illuminator is normally on at night. When the target is detected by the camera, the warm light turns on and the camera records the color video and key event information. When the target is out of the monitored area, the warm light turns off and the IR illuminator turns on again, helping to reduce light pollution in the area.

Product details

Product image

ONVIF® PoE External AI IP Camera - Dahua - IPC-HFW2249T-AS-IL
Resolution 2 Megapixel 2MP 1920x1080p
3.6mm fixed optics
1/2.8" CMOS sensor
Video compression up to H.265+ Smart Codec
Double Video Stream
Double lighting
IR up to 60m - Warm Light up to 50m
WDR 120dB - BLC - HLC - 3DNR - Defog - Mirror - Privacy Mask - Image rotation - Motion Detection
Artificial Intelligence : Perimeter / Intrusion Protection. / Smart Seacrh on NVR
Audio: 1 input and 1 output
Alarm: 1 input and 1 output
Built-in microphone
Micro SD memory slot (Up to 256GB - not included)
IP67 protection (indoor / outdoor)
IK10 protection (optional)
RJ45 10/100M Base T Ethernet LAN
Dimensions: 238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57")
Weight: 0.72Kg
Supported operating temperature: –40°C to +60°C
Material: Made with Metal Case
Power supply NOT included
Power: 12 VDC/PoE (802.3af)
Supports ePoE power supply
24 month manufacturer's warranty

Technical data sheet

Room

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.6 (Color, 30 IRE)
0.0002 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

> 56 dB

Illumination Distance

Up to 60 m (196.85 ft) (IR)

Up to 50 m (164.04 ft) (Warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LED); 2 (Warm light)

Pan/Tilt/Rotation Range

Pan: 0°–360°
Tilt: 0°–90°
Rotation: 0°–360°

Lens

Lens Type

Fixed focal

Lens Mount

M12

Focal Length

3.6mm

Max. Openings

F1.6

Field of View

3.6mm: H: 84°; V: 44°; D: 105°

Iris Control

Fixed

Close Focus Distance

3.6mm: 1.3m (4.27ft)

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main stream: 1920 × 1080@(1–25/30 fps)
Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

2 streams

Resolution

1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bitrate Control

CBR/VBR

Video Bitrate

H.264: 32kbps–6144kbps
H.265: 12kbps–6144kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Smart Lighting

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1080p resolution and lower)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G.726; PCM

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; audio detection; voltage detection; SMD; security exception; external alarm

Network

Network Port

RJ-45 (10/100Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Management Software

SmartPSS Lite; DSS; DMSS

Browser

IE; Chrome; Firefox

Mobile Client

iOS; Android

Cyber Security

Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

1 channel in: 5 mA 3–5 VDC

AlarmOutput

1 channel out: 300mA 12VDC

Power

Power Supply

12VDC/PoE (802.3af)

Power Consumption

Basic: 1.6W (12VDC); 2.1W (PoE)
Max. (H.265+ intelligence on + WDR + illuminator on): 5.8 W (12 VDC); 6.9W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Storage Humidity

≤95%

Protection

IP67, IK10 (optional)

Anti-corrosion Level

Low

Structure

Casing Material

Metal

Product Dimensions

238.5 mm × 90.7 mm × 90.7 mm (9.39" × 3.57" × 3.57") (L × W × H)

Net Weight

0.72 kg (1.59 lb)

Gross Weight

0.95 kg (2.09 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible
	The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
	AI \| Artificial Intelligence This camera features Artificial Intelligence on board - Perimeter protection: Intrusion, line crossing (the two functions support accurate classification and detection of vehicles and human) - Smart Search: Work together with Smart NVR to perform smart search, event extraction and event video merging.
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	This camera has a resolution of 2Megapixel! Resolution 1920 (H) × 1080 (V) progressive scan
	This camera features a 3.6mm fixed lens
	Infrared Illuminator with Smart Dual Light Technology Dual lighting: IR + Warm Lights Up to 60 m (196.85 ft) (IR) Up to 50 m (164.04 ft) (Warm light) Smart Dual Light Technology: Smart Dual Light (Default): Switches between IR illuminator and warm light when a target is detected IR Mode (Optional): Only IR illuminator is turned on. It is suitable for scenes where no additional warm light is required, significantly reducing light pollution. Warm light mode (optional): Only warm light is on. It is suitable for scenes that require color video shooting.
	This camera is equipped with an on-board microphone !
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	1 audio input and 1 audio output.
	1 alarm input and 1 alarm output.
	IP67 level protection, ideal for outdoor use.
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism (optional)
	Metal body.
	Possibility to insert Micro SD up to a maximum of 256Gb - not included
	Power supply NOT included. Power supply: 12V DC.
	This product is covered by a 24 month warranty.
