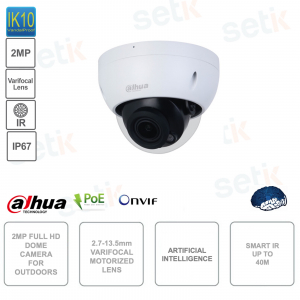

ONVIF POE IP Dome Camera - 2MP - Varifocal 2.7-13.5mm - Microphone - Artificial Intelligence

-57%

Outdoor Dome POE ONVIF IP Camera IPC-HDBW2241R-ZS, 1080P 2 Megapixel , 2.7-13.5mm with motorized zoom. 1/2.8" CMOS sensor, H.265+. Smart IR 40mt (2xIR LEDS) - WDR 120dB , BLC, HLC, 3DNR, AGC, ROI, Motion Detection, Artificial Intelligence , On-board microphone, 256GB MicroSD slot (not included), IP67 and IK10 vandal-proof protection.

Reference: IPC-HDBW2241R-ZS

Brand: Dahua

FIND INSTALLER

https://www.setik.biz/en/cameras/10777-dahua-ipc-hdbw2241r-zs-dome-camera-ip-poe-onvif-2mp-varifocal-27-135mm-microphone-artificial-intelligence.html

€167.87

€390.40 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

ONVIF 1080P MOTORIZED DOME POE IP CAMERA - STARLIGHT AND H.265+ - MICROSD SLOT - ARTIFICIAL INTELLIGENCE - DAHUA - IPC-HDBW2241R-ZS

ONVIF® PoE Dome IP Camera - Dahua - IPC-HDBW2241R-ZS
1080P 2MP Resolution - 2.7-13.5mm Motorized Lens - H.265+ / H.264 - Dual Stream Video - 1/2.8" CMOS
Smart IR Illuminator 40M with 2xIR LEDS - Day/Night (ICR) - WDR 120dB, BLC, HLC, AWB, 3DNR, ROI, Mirror Mode, Privacy Masking - Microphone equipped on board - Ethernet LAN port RJ-45 10/100M - 256GB MicroSD slot (sold separately) - 12V DC power supply (not included) - 24 months manufacturer's warranty

Product details

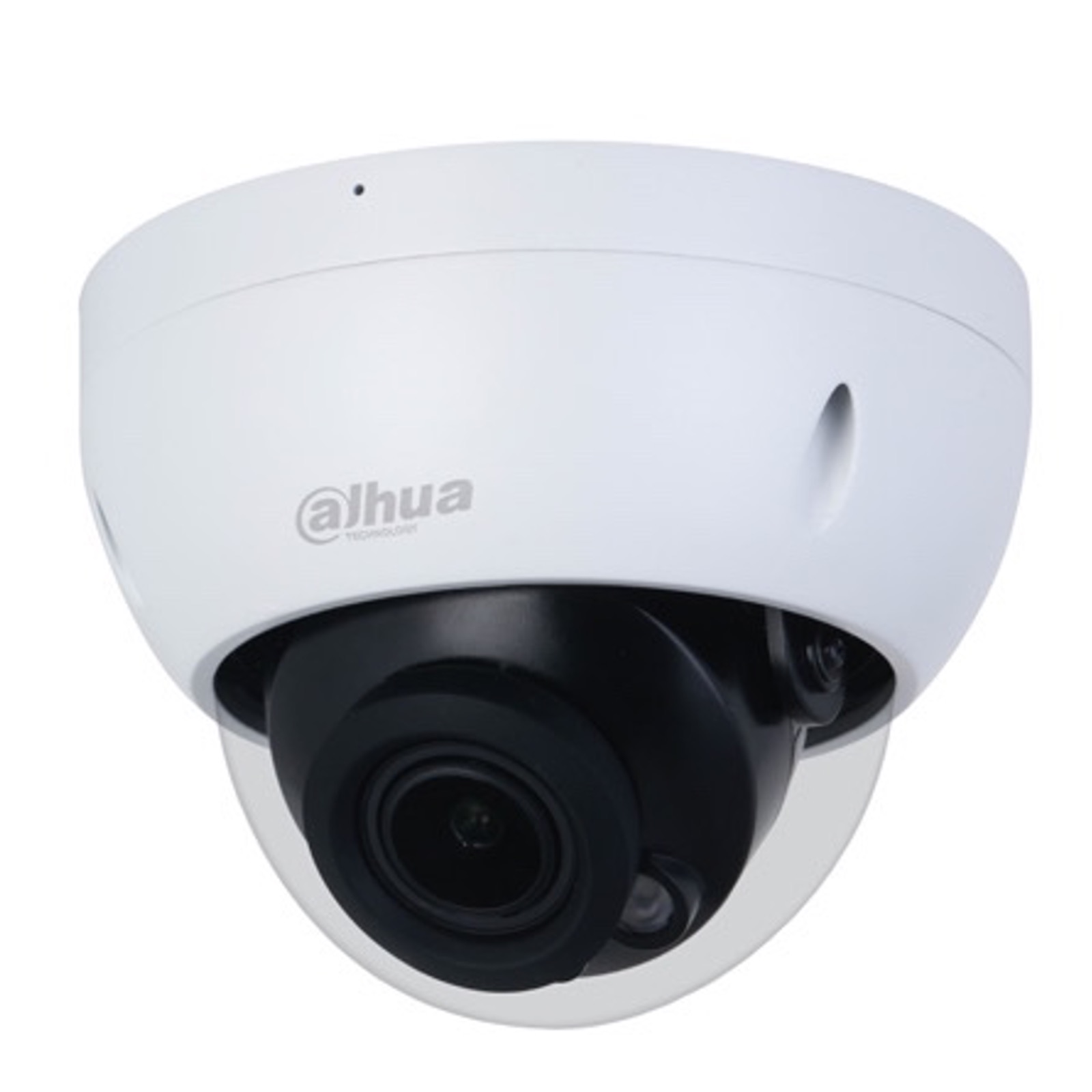

Dahua IP Video Surveillance Camera - IPC-HDBW2231R-ZS

ONVIF® PoE Dome Outdoor IP Camera - Dahua - IPC-HDBW2241R-ZS
Resolution: 1080P 2MP
1/2.8" progressive CMOS image sensor
2.7-13.5mm Varifocal Lens, with Motorized Zoom
Video compression H.265+ / H.264
Dual Stream Video
On-board microphone
Functions: WDR(120dB) , Day/Night(ICR), 3DNR, AWB, AGC, BLC, Mirror Mode, Privacy Masking
IR LED illuminator with max range of 40M (2xIR LEDs)
Remote Visibility. Support DMSS Application (Best Mobile CCTV Software) .
Artificial Intelligence: Perimeter Protection + Smart Search
MicroSD slot (Max 256GB - not included, can be purchased separately)
IP67 protection (Dust/Immersion), ideal for use in video surveillance systems set up in outdoor environments
IK10 protection (ideal against vandalism)
Ethernet port RJ-45 10/100M
Product net weight:
Operating temperature: –30 °C to +60 °C
Dimensions: 93.4mm × Φ122mm
Frame: metal
24 Months Italian Warranty

Technical data sheet

IPC-HDBW2241R-ZS

Room

Image Sensor

1/2.8" CMOS

Max. Resolution

1920 (H) × 1080 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.002 lux@F1.5 (Color, 30 IRE)
0.0002 lux@F1.5 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

>56dB

Illumination Distance

40m (131.23ft) (IR LED)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

2 (IR LEDs)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–75°
Rotation: 0°–355°

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Video encryption; Configuration encryption; Digests; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x;Trusted boot;Trusted execution; Trusted upgrades

Certification

Certifications

CE-LVD: EN62368-1;

CE-EMC: Electromagnetic Compatibility Directive

2014/30/EU;

FCC: 47 CFR FCC Part 15, Subpart B;

UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Power

Power Supply

12VDC/PoE (802.3af)

Power Consumption

Basic: 1.8W (12VDC); 2.6W (PoE)
Max. (H.265+intelligence on +WDR +IR on): 6.2 W (12 VDC); 7.1W (PoE)

Environment

Operating Temperature

–30 °C to +60 °C (–22 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40°F to +140°F)

Protection

IP67; IK10

Structure

Casing Material

Metal

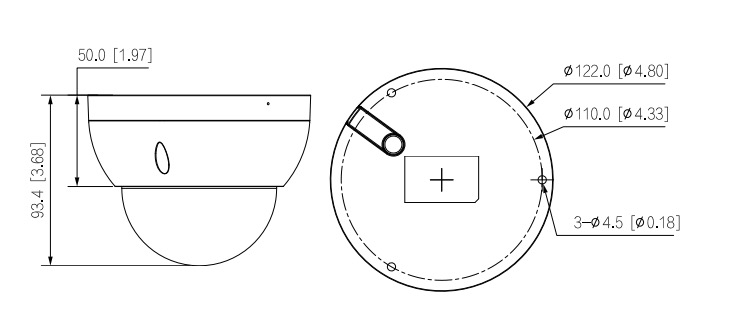

Product Dimensions

93.4 mm × Φ122 mm (3.68" × Φ4.80")

Net Weight

0.49 kg (1.08 lb)

Gross Weight

0.66 kg (1.46 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports Onvif version
	The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to provide high-quality video. without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	2MPX resolution, means 5 times the resolution of a common D1 camera .
	This camera features a 2.7-13.5mm varifocal lens with motorized zoom Motorized zoom example:
	Infrared illuminator with REAL range up to 40M for night vision. This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
	This camera features ARTIFICIAL INTELLIGENCE functions : - Perimeter protection - SmartSearch - SMD Plus
	Remote visibility on mobile using Dahua DMSS application.
	ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	It allows you to adapt the lens to Night/Day vision and the consequent automatic management of the IR illuminator.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (entrances or exits of parking lots, shooting of license plates, presence of particular lights etc...).
	The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
	3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and in motion, the most powerful solution currently available for obtaining maximum results in low light.
	Possibility to insert Micro SD up to a maximum of 256GB (not included)
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism.
	12V DC power supply NOT included!
	This product is covered by a 24 month warranty.
