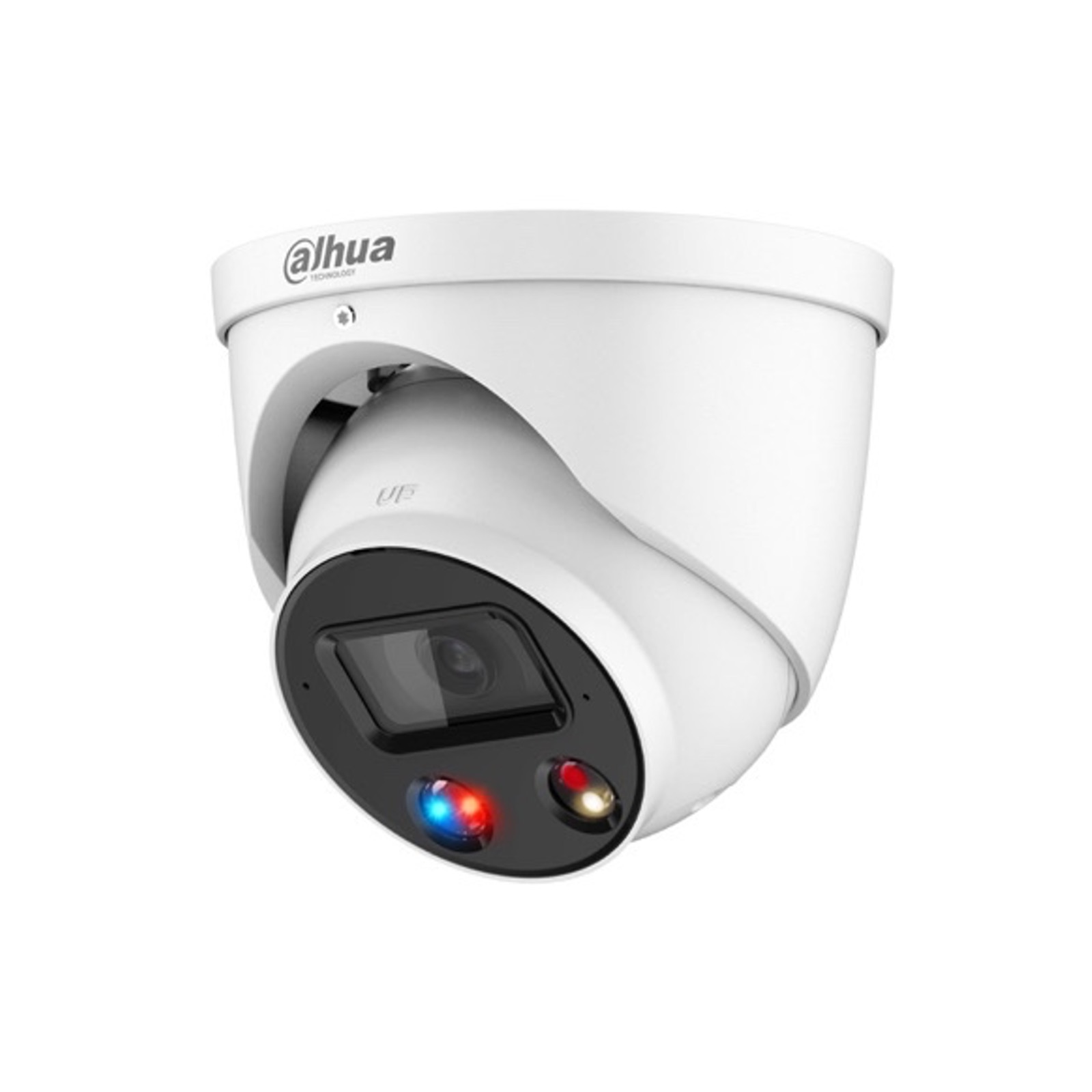

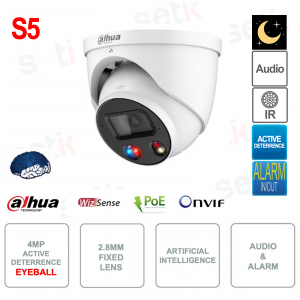

ONVIF® 4MP PoE IP Eyeball Camera - 2.8mm Lens - S5 Version

ONVIF® 4MP PoE IP Eyeball Camera - 2.8mm Lens - S5 Version
-58%

IPC-HDW3449H-AS-PV-S5 - S5 Version Dahua AI Lite IP camera mini dome outdoor camera ONVIF PoE WizSense , with Video Analysis , 4MP , 1/2.7" 4MP CMOS sensor, 2.8mm lens, H.265+ compression. 30MT IR illuminator - Double illuminator with additional warm light - Day/Night (ICR), WDR 120dB, AWB, BLC, HLC, 3DNR, ROI, Defog, Mirror Mode, Privacy Masking, Artificial intelligence: Perimeter protection, smart search, SMD 4.0, AcuPick and AI SSA MicroSD slot (Max.256 - Not Included ), Audio, Alarm, Microphone, IP67 - In metal.

Reference: IPC-HDW3449H-AS-PV-S5

Brand: Dahua

EAN: 6923172526748

FIND INSTALLER

€222.89

€530.70 -58%
taxes included
Tax included
  Hurry up! Only a few pieces left in our warehouse!
 Last items in stock
discover the available quantity

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

meno


EYEBALL IP ONVIF® POE OUTDOOR CAMERA - 4MP - ARTIFICIAL INTELLIGENCE - 2.8MM LENS - S5 - DAHUA - IPC-HDW3449H-AS-PV-S5

Dahua
4MP Outdoor ONVIF® PoE IP Eyeball Camera with AI - WizSense Dahua - IPC-HDW3449H-AS-PV-S5 - S5 VERSION
4Megapixel Resolution - 2.8mm Lens - 1/2.7" CMOS - Triple Video Stream - H.265 Compression - IR 30M - Day/Night (ICR) - WDR 120dB - BLC - HLC - 3DNR - Mirror - Privacy Mask - AWB - Defog - ROI - Image rotation - MicroSD slot (256GB - Not Included) - Audio 1in / 1out - Alarm 1in / 1out - RJ-45 10/100 Base-T - Built-in microphone - Artificial intelligence: Perimeter protection, smart search, SMD 4.0, AcuPick and AI SSA - Ideal for outdoor use.

Product details


  • Outdoor Onvif PoE Eyeball AI IP Camera - Dahua - IPC-HDW3449H-AS-PV-S5
  • Resolution 4Megapixel 4MP
  • Fixed Optics 2.8 mm
  • 1/2.7” sensor
  • Video compression up to H.265+
  • Triple Stream
  • WDR 120dB - Day/Night (ICR), 3DNR, AWB, AGC, BLC, defog, Mirror Mode, Privacy Masking
  • IR illuminator with range up to 30MT and additional warm light illuminator (double illumination)
  • Artificial Intelligence : Perimeter Protection, Smart Search, SMD 4.0, AcuPick, AI SSA
  • Remote viewing with Smart PSS, DSS, DMSS
  • Micro SD memory slot (Up to 256GB - not included)
  • IP67 protection (indoor/outdoor)
  • RJ-45 10/100 Base-T Ethernet LAN port
  • Audio 1in 1out (RCA)
  • 1in 1out alarm
  • Built-in microphone on board
  • Material: Metal
  • Operating temperature: –40 °C to +60 °C
  • Dimensions: Φ122.0mm × 110.9mm
  • Power: 12 VDC/PoE (802.3af)
  • 24 month warranty

Technical data sheet

IPC-HDW3449H-AS-PV-S5

Room

Image Sensor

1/2.7" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

256 MB

RAM

1 G

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.003 lux@F1.0 (Color, 30 IRE)
0.0003 lux@F1.0 (B/W, 30 IRE)
0 lux (illuminator on)

Y/N Ratio

>56dB

Illumination Distance

Up to 30 m (98.43 ft) (IR)
Up to 30 m (98.43 ft) (Warm light)

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera is ONVIF® compatible

PoE Power Supply The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.

ai_cam.jpgArtificial Intelligence Technology

This camera features INTELLIGENT FUNCTIONS:

- SmartSearch

- IVS Perimeter Protection

- SMD 3.0

- AcuPick

- TO THE SSA

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

Questa telecamera ha una risoluzione 4Mpx

This camera has a resolution of 4Mpx

Ottica Fissa

This camera features a 2.8mm fixed lens

  • Main stream : 2688 × 1520@ (1 fps–30 fps)
  • Sub stream : 704 × 576@(1 fps–25 fps)/704 × 480@(1 fps–30 fps)
  • Third stream : 1920 × 1080@ (1 fps–30 fps)
Illuminatore IR LED

Quality IR illuminator for better night vision.
Maximum range 30 meters

1 ADDITIONAL WARM LIGHT LED ILLUMINATOR.

Full HD

Remote visibility on mobile using Dahua DMSS application.

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
Day/Night Function Icon Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
Day/Night Function Example Funzione IR Cut Filter

The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.

Esempio Funzione IR Cut Filter

Funzione ROI This camera has ROI function.

Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras.
The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
Ultra Smart Funzione ROIThis camera features an on-board microphone
This camera features built-in Microphone.
This camera features audio inputs and outputs This product features 1 audio input + 1 audio output (RCA) This camera features alarm inputs and outputs. This camera has 1 input + 1 alarm output Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256GB - not included

Power supply 12V 3A Power supply NOT included
Power supply 12V DCItalian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
