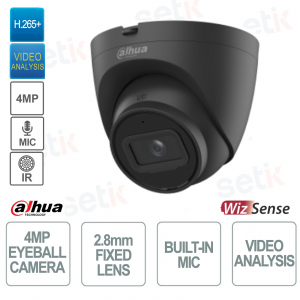

4MEGAPIXEL EYEBALL IP POE ONVIF® FIXED IP CAMERA - 2.8MM LENS - STARLIGHT - VIDEO ANALYSIS - MICROPHONE - BLACK - DAHUA - IPC-HDW2441T-S-BLACK

Made by Dahua
ONVIF® PoE Eyeball IP camera - Outdoor - Dahua - IPC-HDW2441T-S-BLACK
4MP resolution - 2.8mm fixed lens - Compression up to H.265+ - 1/2.9" Starlight CMOS sensor - Starlight technology : 24/7 color vision!
IR Illuminator 1 LED 30 Meters - WDR 120dB - BLC - HLC - 3DNR - AGC - AWB - Mirror - Privacy Masks - Video Analysis : perimeter protection, intrusion detection, Smart Search - Built-in microphone - Event alarm - Black color.
256GB Micro SD Slot (not included) - RJ45 100M - IP67 Outdoor Protection - 24 Month Warranty

Product details

Telecamera IP Dome con risoluzione 4MP e ottica fissa 2.8mm IR LED 30MT
  • Eyeball IP Camera - Outdoor IP ONVIF® PoE - Dahua - IPC-HDW2441T-S-BLACK
  • Resolution: 4MP - 2688(H) × 1520(V)
  • Image Sensor 1/2.9" 4MP CMOS with Starlight Technology
  • Starlight Technology: Color Night Vision!
  • Fixed optics: 2.8mm
  • Video compression up to H.265+
  • Dual Stream
  • Functions: WDR(120dB) , Day/Night(ICR), 3DNR, AWB, AGC, BLC, 3DNR, Mirror Mode, Privacy Masking
  • Motion Detection
  • Video Analysis: Line Crossing, Intrusion
  • IR Illuminator 1 LED 30 Meters
  • Built-in microphone
  • IP67 Protection (Dust/Immersion)
  • Suitable for indoor/outdoor environments
  • PoE protocol supported
  • MicroSD slot (up to 256GB not included)
  • Dimensions: 100.9mm × Φ109.9mm
  • Material: metal and plastic
  • Operating temperature: –40 °C to +60 °C
  • Net weight: 0.37Kg
  • Color Black
  • 24 Months Italian Warranty

Technical data sheet

detector; video tampering; tripwire; intrusion; SMD; voltage detector; security except

IPC-HDW2441T-S-BLACK

Room

Image Sensor

1/2.9" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.008 lux@F1.6 (Color, 30 IRE)
0.0008 lux@F1.6 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

Network

Network Port

RJ-45 (10/100Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP

Interoperability

ONVIF® (Profile S/Profile T); CGI; P2P; Milestones

User/Host

6 (Total bandwidth: 36M)

Storage

FTP; SFTP; Micro SD card (support max. 256 GB)

Browser

IE; Chrome; Firefox

Management Software

DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Configuration encryption;Trusted execution;Digest;Security logs;WSSE;Account lockout;syslog;Video encryption;802.1x;IP/MAC filtering;HTTPS;Trusted upgrade;Trusted boot;Generation and importing of X.509 certification

Certification

Certifications

CE-LVD: EN 62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12VDC/PoE (802.3af)

Power Consumption

Basic: 2.5W (12VDC); 3.3W (PoE);
Max. (ICR + H.265 + max. resolution + main stream + IR intensity + WDR + IVS): 4.2 W (12 VDC); 5.1W (PoE)

Environment

Operating Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +60 °C (–40 °F to +140 °F)

Protection

IP67

Structure

Casing Material

Inner core: Metal
Cover: Plastic

Product Dimensions

100.9 mm × Φ109.9 mm (3.97" × Φ4.33")

Net Weight

0.37 kg (0.82 lb)

Gross Weight

0.56 kg (1.23 lb)

Further details

ONVIF®

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera supports Onvif version!

PoE Power Supply The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation.
Risoluzione 4Mpx 2592x1520

This camera features a resolution of 4 Megapixels!

Maximum resolution: 2688(H) × 1520(V), progressive image scan.

Supported resolutions:

  • 4M (2688 × 1520);
  • 4M (2560 × 1440);
  • 3M (2304 × 1296);
  • 1080p (1920 × 1080);
  • 1.3M (1280 × 960);
  • 720p (1280 × 720);
  • D1 (704 × 576/704 × 480);
  • VGA (640 × 480);
  • CIF (352 × 288/352 × 240)

1/2.9" CMOS sensor, 4MP, with STARLIGHT technology.

Low brightness, color vision even in night mode

With this CMOS sensor, it is possible to have color shots even in night mode.

Normally, when entering night mode, the color vision changes to black/white.

With the SENSOR present, night shots will be clear and in color

Esempio di visione notturna in presenza di sensore con tecnologia starlight

Codifica video Smart H.265+

Smart H.265+

Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network.

Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.

Video compressione Smart H.265+

Ottica fissa This camera features a 2.8mm fixed lens
IR Illuminator 20 MT

Infrared Illuminator with 1 LED and 30m range

Full HD

Remote visibility on mobile using Dahua DMSS application.

This camera features VIDEO ANALYSIS (IVS) functions:
- Line crossing recognition
- Intrusion recognition
- SmartSearch

ULTRA WDR up to 120dB
WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
Funzione Day/Night. Permette di adatta la lente alla visione notte

It allows you to adapt the lens to Night/Day vision and the consequent automatic management of the IR illuminator.
Immagine che evidenzia la funzione Day/Night

ICR The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.
BLC

BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (Entrance or exit of parking lots, shooting of license plates, presence of particular lights etc...).

AGC

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.
Automatic Gain Control Function Example

3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and in motion, the most powerful solution currently available for obtaining maximum results in low light.

Questa telecamera presenta microfono a bordo This camera is equipped with an on-board microphone
MicroSD Recording

Possibility to insert Micro SD up to a maximum of 256Gb - not included

Protezione IP67 contro polveri e immersioni Protection level IP67 (Dust / Immersion)

12VDC_Power

12V DC power supply NOT included!

Italian Guarantee Icon This product is covered by a 24 month warranty.

Download

Download the English Brochure
Schema e dimensioni della telecamera IPC_HDW2431T_AS
