Dahua Camera - IPC-HDBW2249E-S-IL - Dome IP POE AI ONVIF - 2MP 1080p resolution - 3.6mm fixed lens - 1/2.8" 2MP CMOS - Smart Codec H.265+ - Dual Stream Video - Smart IR 3LED up to and 4 warm light 30m - Artificial intelligence with: smart search / perimeter protection - HLC - BLC - WDR 120dB - 3DNR - Mirror - Privacy Masking - Day/Night (ICR) - ROI - Event alarm - Integrated microphone - MicroSD slot up to 256GB (not included) - IP 67 and IK10 outdoor protection - Metal body. White color.
FIND INSTALLER
discover the available quantity
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

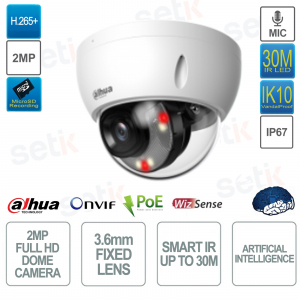

ONVIF® 2MP 1080P DOME POE IP CAMERA - 3.6MM LENS - ARTIFICIAL INTELLIGENCE - MICROPHONE - IP67 AND IK10 PROTECTION - WHITE - DAHUA - IPC-HDBW2249E-S-IL
1080p 2MP FullHD resolution - 3.6mm lens - 1/2.8" 2MP CMOS - H.265+ Smart Codec - Dual Stream Video - 30m Smart IR illuminator with 3 LEDs and 4 warm light - Day/Night (ICR) - HLC - BLC - Day/Night(ICR) - 3DNR - Mirror - Privacy Masks - WDR 120dB - Dual Stream - Artificial intelligence : intelligent search / perimeter protection - 256GB MicroSD slot (sold separately) - Microphone - White color - 12V DC power supply (not included) - 24 month warranty
Product details
- ONVIF® PoE Dome Outdoor IP Camera - Dahua - IPC-HDBW2249E-S-IL
- Resolution: 1080P 2MP Full HD
- Image sensor 1/2.8" progressive scan CMOS
- 3.6mm fixed optics
- Video compression: H.265+ Smart Codec
- Dual Stream
- Functions: WDR(120dB) , Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Smart IR illuminator with a maximum range of 30m with 3 LEDs and 4 warm light
- Remote Visibility. Support DMSS Application (Best Mobile CCTV Software) .
- Artificial Intelligence: Smart Seacrh and Perimeter Protection
- MicroSD slot (Max 256GB - sold separately)
- 100M RJ45 Ethernet Network Interface
- IP67 protection (dust/immersion)
- IK10 protection (protection against vandalism)
- Material: metal
- Color White
- Operating temperature: –40 °C to +60 °C
- Dimensions: 81.0mm × Φ109.9mm
- Item net weight: 0.35kg
- 24 Months Italian Warranty
Technical data sheet
| IPC-HDBW2249E-S-IL | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | 1920 (H) × 1080 (V) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ROM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM | 128 MB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Min. Illumination | 0.002 lux@F1.6 (Color, 30 IRE) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Y/N Ratio | >56dB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illumination Distance | 30 m (98.43 ft) (IR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Illuminator On/Off Control | Auto;Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Port | RJ-45 (10/100Base-T) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
SDK and API | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; NTP; Multicast; ICMP; IGMP; P2P | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF® (Profile S/Profile G); CGI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
User/Host | 6 (Total bandwidth: 36M) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage | FTP; SFTP; Micro SD card (support max. 256 GB) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Browser | IE; Chrome; Firefox | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS Lite; DSS; DMSS; DoLynk Care | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mobile Client | iOS; Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Cyber Security | Video encryption;Firmware encryption;Configuration encryption;Digest;WSSE;Account lockout;Security logs;IP/MAC filtering;Generation and importing of X.509 certification;syslog;HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE-LVD: EN 62368-1 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | 12VDC/PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 2.1 W (12 VDC), 2.6 W (PoE); | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤95%, non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Temperature | –40 °C to +60 °C(–40 °F to +140 °F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Storage Humidity | ≤95%(RH), non-condensing | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | IP67; IK10 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing Material | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Dimensions | 81.0 mm × Φ109.9 mm (3.19" × Φ4.33") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.35 kg (0.77 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 0.50 kg (1.10 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports Onvif version |
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | 2MPX resolution, means 5 times the resolution of a common D1 camera . |
 | This camera features a 3.6mm fixed lens. |
 | Infrared illuminator with REAL range up to 30m for night vision, with 3 LED illuminators and 4 warm light. This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.  |
 | This camera features ARTIFICIAL INTELLIGENCE functions, integrated on board!:
|
 | Remote visibility on mobile using Dahua DMSS application. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 | It allows you to adapt the lens to Night/Day vision and the consequent automatic management of the IR illuminator. |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (Entrance or exit of parking lots, shooting of license plates, presence of particular lights etc...). |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | 3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and in motion, the most powerful solution currently available for obtaining maximum results in low light.  |
 | This camera is equipped with an on-board microphone |
 | Possibility to insert Micro SD up to a maximum of 256GB (not included) |
 | Protection level IP67 (Dust / Immersion) |
 | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there is a risk of vandalism
|
 | 12V DC power supply NOT included!
|
 | This product is covered by a 24 month warranty. |
