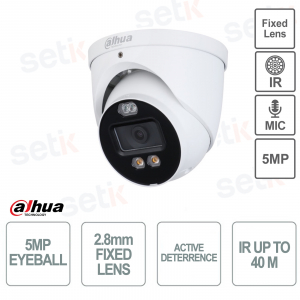

DAHUA OUTDOOR CAMERA 4IN1 5MEGAPIXEL - 2.8MM LENS - SMART IR 40MT - ACTIVE DETERRENCE - MICROPHONE - DAHUA - HAC-ME1509H-A-PV-S2
4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable via coaxial
5Megapixel Resolution - 2.8mm fixed lens and 5MP CMOS sensor - 1 BNC Video Output - 4in1 CVI/TVI/AHD/CVBS
Product details
- 4in1 Eyeball Outdoor Camera - Dahua - HAC-ME1509H-A-PV-S2
- 4 Technologies in 1: HDCVI / HDTVI / AHD / ANALOG switchable: 4 signals on coaxial cable
- Resolution: 5 Megapixel 2880 (H) × 1620 (V) progressive scan
- Active deterrence: siren and flashing light
- 5MP CMOS image sensor
- Fixed optics 2.8mm
- Functions: BLC, HLC, DWDR, 2D DNR, AWB, AGC
- Privacy Mask on 8 areas
- Mirror Mode
- OSD Multi-language menu
- 40m IR LED Illuminator
- 1 BNC Video Output: 4in1 CVI/TVI/AHD/CVBS
- 1 alarm output
- Power supply: 12V ±30% DC (power supply not included)
- Suitable for outdoor and indoor environments
- IP67 protection (dust / immersion)
- Material: metal
- Dimensions: Φ122.0 mm × 110.9 mm (Φ4.8" × 4.37")
- Weight: 0.7 kg
- 24 month manufacturer's warranty
Technical data sheet
| HAC-ME1509H-A-PV-S2 | ||||
|
Technical Specification |
||||
|
Room |
||||
|
Image Sensor |
5MP CMOS |
|||
|
Max. Resolution |
2880 (H) × 1620 (V) |
|||
|
Pixel |
5MP |
|||
|
Scanning System |
Progressive |
|||
|
Electronic Shutter Speed |
PAL: 1/3 s–1/100000 s |
|||
|
Y/N Ratio |
>65dB |
|||
|
Min. Illumination |
0.001 lux@F1.0 (Color, 30 IRE) |
|||
|
Illumination Distance |
IR: 40m (131.23ft) |
|||
|
Illuminator On/Off Control |
Car; manual |
|||
|
Illuminator Number |
2 (IR light) |
|||
|
Pan/Tilt/Rotation Range |
Pan: 0°–360° |
|||
| Lens | ||||
Wall mount; ceiling mount; vertical pole mount
Further details
 |
This camera is a QUADRIBRID (4 integrated technologies) These cameras are at the same time, Analog , Ahd , Hdcvi and Hdtvi .    |
|
 |
5MP resolution, means 12 times the resolution of a common D1 camera : |
|
 |
2.8mm fixed optics |
|
|
|
OSD (ON SCREEN DISPLAY) allows you to define masked areas, image correction, ATR, Day/Night sensitivity, Shutter speed, White balance, light compensation and much more... The OSD menu is multi-lingual Multi-Technology: The camera features 4 technologies in 1 (HDCVI, HDTVI, AHD, Analog) |
|
 |
Infrared illuminator with approximate maximum range of 40m, with two warm light LED illuminators. |
|
 |
Digital WDR (Wide Dynamic Range
D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.  |
|
 |
Active deterrence : This camera integrates Active Deterrence functions. Promptly reports intruders and takes action even before the break-in occurs
|
|
 |
BLC (Back Light Compensation) is one of the 3 possible steps in the management of images with Contrast, typical situations are (Entrances or exits from parking lots, License plates, Special lights, Entrances with shots from the inside towards the outside, etc.) the light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations | |
 |
HLC (High Light Compensation) allows for better light management in the presence of direct light (cars, torches, etc.). It also prevents attempts to blur the image.  |
|
 |
|
|
 |
This camera has 1 audio output. | |
 |
|
|
 |
Protection level IP67 (Dust / Immersion) |
|
 |
This camera is made with metal body. | |
 |
12VDC power supply not included  |
|
 |
This product is covered by a 24 month warranty. |
