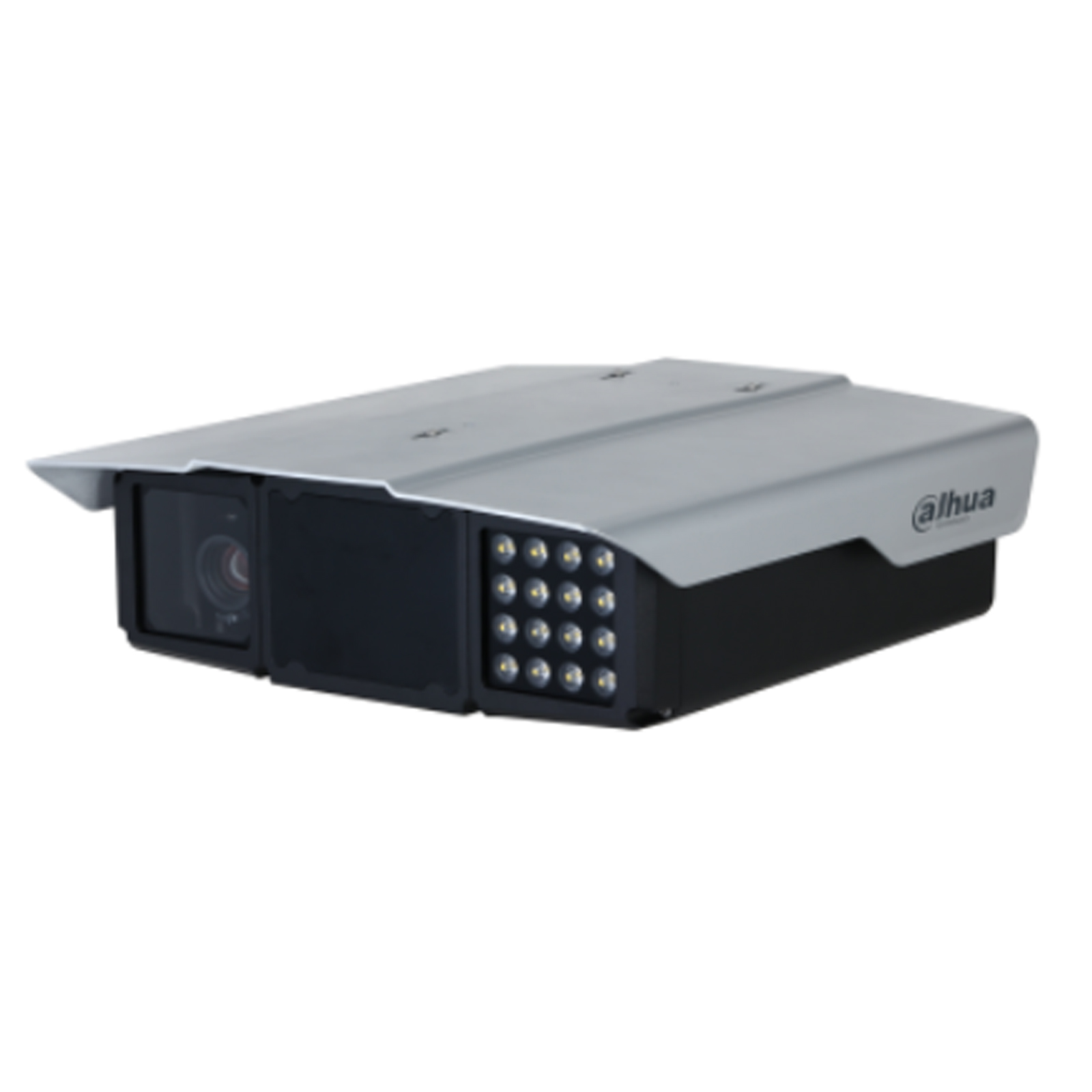

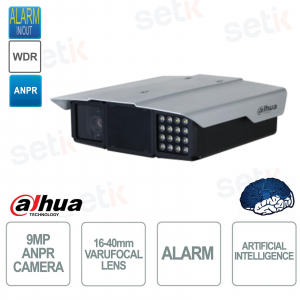

AI DAHUA IP 9MP ANPR TRAFFIC CAMERA - 16-40MM LENS MOUNT - 9MP RESOLUTION - LICENSE PLATE READING AND VEHICLE RECOGNITION - ITC952-SU2F-GQE-C2R1-IRL8ZF1640
AI 9MP ANPR Outdoor IP Traffic Camera - Dahua - ITC952-SU2F-GQE-C2R1-IRL8ZF1640
9MP resolution @50fps - 16-40mm varifocal lens - Coverage up to 4 lanes - Maximum detected speed up to 300 km/h
IR Illuminator 16 LED 23-30m - Alarm: 1in/1out - RS485 - SD Card Slot - WDR 120dB - Artificial Intelligence: Vehicle Detection and Metadata (size, color, model etc) - Power Supply: 100~240 Vac <45 w="" span="" style="color:#ecf0f1;" data-mce-style="color: #ecf0f1;">of the best bullet cameras
|
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis. |
|
ANPR CAMERAS: WHAT ARE THEY? The presence of this technology allows for adequate vision even in the presence of license plate lights . |
Product details
- 1/1" GS CMOS image sensor
- Vehicle Detection: Supports video detection of vehicles and their directions
- Vehicle Data Structuring: License Plate Recognition, Vehicle Size, Vehicle Color, etc.
- Vehicle Size Detection: Up to 11 sizes detectable: large bus, heavy truck, medium truck, minivan etc.
- Vehicle Color Detection: Up to 11 detectable colors: white, black, blue, red, yellow etc...
- Vehicle model detection: Video or video loop detection
- Overlay OSD menu: Time, location, license plate number, etc.
- Barrier control: Relay output for barrier control
Technical data sheet
| ITC952-SU2F-GQE-C2R1-IRL8ZF1640 | |
| Room | |
| Image Sensor | 1.1" GS-CMOS |
| Shutter Mode | Single shutter; Double shutters; Three shutters |
| Electronic Shutter Speed | Auto/Manual 1/50 s–1/100,000 s |
| Noise Reduction | 3D NR |
| Y/N Ratio | 48dB |
| WDR | 120dB |
| Min. Illumination | 0.001 lux |
| Day/Night | Supports ICR auto switch: IR cut-off filter (IRCF) with the polarizing filter is used during the daytime, and switches to the IR transmitting filter at night |
| Illuminator | |
| Illuminator Number | 16 |
| IR | 850 nm |
| Illumination Distance | 23 m-30 m (75.46 ft–98.43 ft) (brightness adjustable) |
| Lane Coverage | Center mount: 4 lanes Side mount: 3 lanes |
| Radar | |
| Central Frequency | 24.05 to 24.25 GHz |
| Measurement Accuracy | ±2 km/h |
| Velocity Range | 5 to 300 km/h |
| Target Tracking | Up to 64 |
| Certification | OIML R91 |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Focal Length | 16mm–40mm |
| Max. Openings | F1.4 |
| Iris Type | P-Iris |
| Field of View | Horizontal: 21.4°–50.6° Vertical: 12.3°–28.9° Diagonal: 24.4°–58° |
| Function | |
| Trigger Mode | Video trigger/Radar trigger |
| OSD Overlay | Time, location, lane (number/direction), plate (number/color), and more. |
| Alarm Event | Storage full; storage errors; external alarm; no storage cards; license plate blocklist; illegal access; network disconnection; IP conflict |
| Automatic Network Replenishment (ANR) | Platform and FTP (TF card is required) |
| Power Transmission | 4G: Power class3: 23dBm ± 2dB |
| 4G | Yes operating frequency band: LTE FDD: Band 1,3,5,7,8,20,28 LTE TDD: Band 38,40,41 WCDMA/HSPA+: Band 1,5,8 GSM/GPRS/EDGE: 850/900/1800MHz |
| Auto Registration | Yes |
| Intelligence | |
| Target Detection | Motor vehicle; motorcycle |
| Face Detection | Detects the driver and front-seat passenger of motor vehicles, and motorcycle drivers; extracts face images |
| ANPR | Adopts developed algorithms to recognize license plate numbers and letters |
| Vehicle Type Recognition | Vehicle head: SUV, Large bus, sedan, light truck, pickup, heavy truck, medium truck, van, medium bus, MPV Vehicle tail: SUV, large bus, sedan, light truck, pickup, heavy truck, medium truck, van |
| Accurac (under recommended installation and lighting conditions) | Capture rate > 99%; LPR accuracy > 98% |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, dark orange, purple, brown, and silver gray (color recognition is not supported during the nighttime) |
| Vehicle Brand/Logo Recognition | Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo |
| Motor Vehicle Violation Capture | ANPR mode: Wrong-way driving, speeding, driving slow, crossing the solid white line, crossing the solid yellow line, illegal lane change, unfasten seat belt, calling while driving, smoking while driving E-Police mode: Running a red light, wrong-way driving, crossing the solid white line, crossing the solid yellow line, disobeying the direction arrow, illegal left turn, illegal right turn, illegal U-turn (not supported by side- mounted cameras), and crossing the stop line |
| Motorcycle Violation Capture | Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving |
| Traffic Flow Detection | Generates statistics on vehicle flow, queue length, average speed, lane occupancy, and more |
| Traffic Event | Motor vehicle illegal stopping on the roadway; traffic congestion |
| Video | |
| Video Compression | Motor vehicle; motorcycle |
| Video Resolution | 4096 (H) × 2336 (V) |
| Video Frame Rate | 50Hz: Maximum 25 fps; default main stream (4096 × 2160@12.5fps), sub stream (1600 × 1200@12.5 fps) 30Hz: Maximum 30fps; default main stream (4096 × 2160@15 fps), sub stream (1600 × 1200@15 fps) |
| Video Bitrate | H.264: 32kbps–32767kbps H.265: 32kbps–32767kbps MJPEG: 512kbps–32767kbps |
| Bitrate Control | CBR/VBR |
| White Balance | Car; Night; Customized Color Temperature |
| Edge Enhancement | Yes |
| HLC | Yes |
| BLC | Yes |
| Bad Pixel Correction | Yes |
| Gain Range | 0-100 |
| Image | |
| Composite Image | Supports combining up to 4 images into a composite image |
| Image Resolution | 4096 (H) × 2336 (V) (OSD black strip excluded) |
| Image Encoding Format | JPEG |
| Image Tampering Prevention | Verifies watermarks in videos and images |
| Network | |
| Network Port | 1 × RJ-45 Ethernet port, 10/100/1000M network transmission |
| SDK and API | Yes |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Network Protocol | IPv4/IPv6; HTTP; TCP/IP; UDP; NTP; DHCP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T |
| Browser | Microsoft Edge IE: IE9–IE11 Chrome: Chrome 41 and earlier Firefox: Firefox 49 and earlier For Win 10 users, run the browser as administrator |
| Positioning | GPS |
| Network Status Monitoring | NTP; GPS |
| Video | |
| Frequency Source Sync | 1, supports synchronizing the camera with the mains electricity |
| Peripheral Light | 5, optocoupler signal output (can be configured as flash light or LED strobe sync output interface, frequency adjustable) |
| RS-485 | 2, connects to devices such as signal detector, radar, and more |
| Alarm Input | 1 |
| AlarmOutput | 1 (can be configured as an alarm output port) |
| General | |
| Power Supply | 100–240 VAC (50Hz/60Hz) |
| Power Consumption | ≤45W |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH) |
| Storage Humidity | 10%–90% (RH) |
| Certifications | CE LVD: EN62368 CE EMC: EN55032; EN55035; EN61000-3-2; EN61000-3-3 CE RED: EN301511; EN301908; EN300440; EN62311; EN301489; EN303413 |
| Protection | IP66 |
| Product Dimensions | 435.4 mm × 416.0 mm × 173.8 mm (17.14'' × 16.38'' × 6.84'') (L × W × H) |
| Net Weight | 9.3 kg (20.50 lb) |
| Gross Weight | 14.3 kg (31.53 lb) |
| Installation | Center mount; side mount |
Further details
 |
Dahua ANPR cameras offer a full range of license plate recognition functions. They integrate an algorithm that detects and captures license plate numbers and stores the details in a database The camera can capture and store screenshots of license plates directly to an SD card without the need for an NVR Why choose Dahua ANPR camera? The Dahua ANPR camera range incorporates high-quality 2 megapixel images, varifocal lenses, anti-roll lights and long-range IR LEDs for license plate recognition up to 40 meters away. The cameras offer a white list / black list function that can trigger set events based on stored license plates. Furthermore...
How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking lot entrances, barrier-controlled areas or lane monitoring. The camera can acquire license plates up to a speed of 25 miles per hour ( 40km/h )
 |
|
|
AI | Artificial Intelligence LPR Function: Embedded with LPR Deep Learning Engine
|
|
This camera features a resolution of 9MP |
|
 |
Infrared illuminator with 16 LEDs and range 23-30m |
 |
True WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 |
This camera features: |
 |
|
 |
TF card slot |
 |
This product is covered by a 24 month warranty. |
