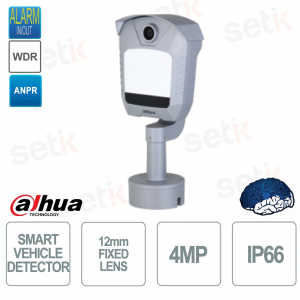

4MP ANPR Smart Vehicle Detector - 12mm Fixed Lens - IP66 - Dahua

-57%

DAHUA AI ANPR Vehicle Detector - ITC431-SU1F-FIR
Outdoor ANPR IP camera for vehicle and license plate detection/recognition . 4MP, 12mm fixed lens, 1/1.8" CMOS sensor, H.265 . IR illuminator not present - License plate recognition , WDR 120dB , Alarm, RS485, RS-232, Intelligent functions, IP66 level protection . Ideal for installation in car parks and access control.

Reference: ITC431-SU1F-FIR

Brand: Dahua

EAN: 6923172522313

FIND INSTALLER

https://www.setik.biz/en/cameras/10591-dahua-itc431-su1f-fir-4mp-anpr-smart-vehicle-detector-12mm-fixed-optics-ip66-dahua.html

€2,831.79

€6,585.56 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Telecamere IP di sorveglianza a tecnologia ANPR

Description Product Details Technical Sheet Further Details Download

AI DAHUA IP VEHICLE DETECTOR WITH LICENSE PLATE READING AND VEHICLE RECOGNITION - METADATA - ITC431-SU1F-FIR

AI Outdoor IP Vehicle Detection ANPR (automatic Network Replenishment) - Dahua
4MP resolution - 12mm fixed lens - H.265 - Alarm - RS485 - WDR 120dB - Artificial Intelligence: Vehicle detection and Metadata (size, color, model etc) - IR illuminators not present - alarm: 1 in - 1 out - 2 RJ-45 Ethernet ports, 10/100/1000 M network transmission - TF local storage up to 256GB - Dimensions: 201.7 mm × 148 mm × 440.5 mm - Weight 3.4 kg - ITC431-SU1F-FIR

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:

Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.

ANPR CAMERAS: WHAT ARE THEY?
ANPR (or LPR) is a technology integrated into some specific cameras that allows the elimination of the glare effect due to the typical reflection characteristics of license plates.

The presence of this technology allows for adequate vision even in the presence of license plate lights .

Lettura targa con telecamera funzione ANPR

Product details

- Dahua AI ANPR Outdoor IP Vehicle Detector

- Resolution: 4MP
- Image sensor 1/1.8” progressive scan CMOS

- 12mm fixed optics
- High-performance embedded processor
- Video Compression up to H.265 for storage space optimization

- WDR 120dB

- License plate recognition support

- ARTIFICIAL INTELLIGENCE:
Vehicle Detection: Supports video detection of vehicles and their directions
Vehicle Data Structuring: License Plate Recognition, Vehicle Size, Vehicle Color, etc.
Vehicle Size Detection: Up to 11 sizes detectable: large bus, heavy truck, medium truck, minivan etc.
Vehicle Color Detection: Up to 11 detectable colors: white, black, blue, red, yellow etc...
Vehicle model detection: Video or video loop detection
Overlay OSD menu: Time, location, license plate number, etc.

- IR illuminator not present

- Alarm: 1 input + 1 output

- RS485
- RS232

- IP66 Protection (Water)

- Size: 201.7mm × 148mm × 440.5mm
- Weight: 3.4Kg
- 24 month warranty

Technical data sheet

Technical Specification
Basic
Image Sensor	1/1.8'' CMOS
Shutter Fashion	Double shutters; Single shutter
Electronic Shutter Speed	Auto/Manual 1/50 s–1/100,000 s
Exposure Fashion	Fully automatic/custom interval automatic/custom
Iris Control	Fixed
Image Resolution	2688 × 1520 (OSD black background is not calculated in the pixels)
Video Resolution	4M (2688 × 1520)/1080P (1920 × 1080)/UXGA (1600 × 1200)/720P (1280 × 720)/D1 (704 × 576)/CIF (352 × 288)
Video Frame Rate	PAL: main stream (2688 × 1520@ 25 fps), sub stream (1600 × 1200@ 25 fps) NTSC: main stream (2688 × 1520@ 30 fps), sub stream (1600 × 1200@ 30 fps)
Video Bitrate	H.264: 32 Kbps–32768 Kbps; H.265: 32 Kbps–32768 Kbps; MJPEG: 512Kbps–32768Kbps
Video Compression	H.264H; H.264B; H.265; MJPEG; H.264M
Field of View	H: 37.24°; V: 20.75°; D: 42.96°
Picture Encoding Format	JPEG
Min. Illumination	0.001 lux
WDR	120dB
White Balance	Auto/outdoor/manual/local white balance/natural light/street light
Noise Reduction	3DNR
Day/Night	Supports ICR auto switch: IR cut-off filter (IRCF) with the polarizing filter is used during the daytime, and switches to the IR transmitting filter at night
HLC	Yes
Bad Pixel Correction	Yes
Edge Enhancement	Yes
Expansion Module	Built in 80G millimeter wave radar, supporting long-distance traffic flow collection
Radar Transmission Frequency	80GHz
Radar Antenna Beamwidth	Horizontal: -15°~15°, vertical: -4.5°~4.5°
Speed Measurement Range	1km/h~250km/h
Speed Measurement Accuracy	±5 km/h
Detection Region	250 m
Measurement Error	±0.6 m
Function
Composite Image	Supports composing 1, 2, 3, or 4 images
Trigger Mode	Video detection/radar
OSD Overlay	Fixed focal

Further details

	Dahua ANPR cameras offer a full range of license plate recognition functions. They integrate an algorithm that detects and captures license plate numbers and stores the details in a database The camera can capture and store screenshots of license plates directly to an SD card without the need for an NVR Why choose Dahua ANPR camera? The Dahua ANPR camera range incorporates high-quality 2 megapixel images, varifocal lenses, anti-roll lights and long-range IR LEDs for license plate recognition up to 40 meters away. The cameras offer a white list / black list function that can trigger set events based on stored license plates. Furthermore... Clear registration of license plate numbers Database registration Trigger events inc. barrier control Integration with Dahua NVR Snapshot support on SD Card PoE Easy installation and use How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking lot entrances, barrier-controlled areas or lane monitoring. The camera can acquire license plates up to a speed of 25 miles per hour ( 40km/h ) Entrances with gates or barriers Parking management Safety Bus lane monitoring Oil stations
	AI \| Artificial Intelligence This camera features Artificial Intelligence on board LPR Function: Embedded with LPR Deep Learning Engine Vehicle Detection: Supports video detection of vehicles and their directions Vehicle Data Structuring: License Plate Recognition, Vehicle Size, Vehicle Color, etc. Vehicle Size Detection: Up to 11 sizes detectable: large bus, heavy truck, medium truck, minivan etc. Vehicle Color Detection: Up to 11 detectable colors: white, black, blue, red, yellow etc... Vehicle model detection: Video or video loop detection Snapshot (instant photos): Overview and cropping of the license plate for photos Overlay OSD menu: Time, location, license plate number, etc. Whitelist: Up to 10000 databases available in the camera Barrier control: Relay output for barrier control
	This camera has a resolution of 4Megapixel.
	This camera features a 12mm fixed lens
	WDR at 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	This camera features: 1 input + 1 output
	Allows you to adapt the lens to Night/Day vision
	RS485 interface present, for connecting external devices such as radar.
	IP66: Guarantees that dust cannot enter the camera and protection from water jets of any kind (rain)
	This product is covered by a 24 month warranty.
