AI DAHUA IP 3MP ANPR CAMERA - 16-40MM VARIFOCAL LENS - 9MP RESOLUTION - LICENSE PLATE READING AND VEHICLE RECOGNITION - METADATA - ITC352-AU3F-IRL8ZF1640-C1

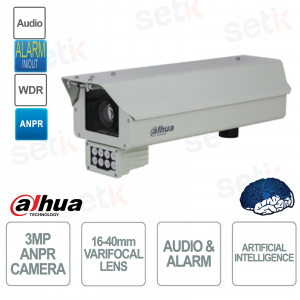

AI Outdoor IP Camera 3MP ANPR - Dahua - ITC352-AU3F-IRL8ZF1640-C1
3MP resolution @50fps - 16-40mm varifocal lens - Coverage up to 2 lanes - Maximum detected speed up to 300 km/h
IR Illuminator 8 LED 23-30m - Audio 1in/1out - Alarm: 4in/2out - GPS - RS485 - RS-232 - WDR 120dB - AWB - Artificial Intelligence: Vehicle Detection and Metadata (size, color, model etc) - Slot for TF Card 256GB (not included) - Power supply: 100~240 Vac <20 W of the best bullet cameras
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis. |
ANPR CAMERAS: WHAT ARE THEY? The presence of this technology allows for adequate vision even in the presence of license plate lights . |
Product details
- 2/3" GS CMOS image sensor
- Vehicle Detection: Supports video detection of vehicles and their directions
- Vehicle Data Structuring: License Plate Recognition, Vehicle Size, Vehicle Color, etc.
- Vehicle Size Detection: Up to 11 sizes detectable: large bus, heavy truck, medium truck, minivan etc.
- Vehicle Color Detection: Up to 11 detectable colors: white, black, blue, red, yellow etc...
- Vehicle model detection: Video or video loop detection
- Overlay OSD menu: Time, location, license plate number, etc.
- Barrier control: Relay output for barrier control
- RS485: 2x
- 24 month manufacturer's warranty
Technical data sheet
| ITC352-AU3F-IRL8ZF1640-C1 | |
| Room | |
| Image Sensor | 2/3" GS-CMOS |
| Shutter Mode | Single shutter; Double shutters; Three shutters |
| Electronic Shutter Speed | Auto/Manual 1/50 s–1/100,000 s |
| Noise Reduction | 3D NR |
| Y/N Ratio | 48dB |
| WDR | 120dB |
| Min. Illumination | 0.001 lux |
| Day/Night | ICR auto switch: Uses IR cut-off filter (IRCF) with polarizer in the daytime, and uses ordinary filter at night. |
| Illuminator | |
| Illuminator Number | 8 |
| IR | 850 nm |
| Electronic Shutter Speed | 23 m-30m (75.46 ft–98.43 ft) (brightness adjustable) |
| IR Covered Lane | 2 lanes |
| Lens | |
| Lens Type | Motorized Vari-focal |
| Focal Length | 16mm–40mm |
| Max. Openings | F1.5 |
| Iris Type | P-Iris |
| Field of View | Horizontal: : 12.8°–30.28° Vertical: 7.2°–16.96° Diagonal: 13.2°–30.9 |
| Function | |
| Trigger Mode | Video Trigger/Radar |
| Speed Detection Range | 0 km/h–300 km/h |
| OSD Overlay | Time; address; lane No.; plate; plate color; and more |
| Alarm Event | Storage full; storage errors; external alarm; no storage cards; license plate blocklist; illegal access; network disconnection; IP conflict |
| Automatic Network Replenishment (ANR) | Platform and FTP (TF card is required) |
| Auto Registration | Yes |
| Intelligence | |
| Target Detection | Motor vehicle; motorcycle |
| Face Detection | Detects the driver and front-seat passenger of motor vehicles, and motorcycle drivers; extracts face images |
| ANPR | Adopts developed algorithms to recognize license plate numbers and letters |
| Vehicle Type Recognition | Vehicle head: SUV, Large bus, sedan, light truck, pickup, heavy truck, medium truck, van, medium bus, MPV Vehicle tail: SUV, large bus, sedan, light truck, pickup, heavy truck, medium truck, van |
| Accuracy (under recommended installation and lighting conditions) | Capture rate > 99% LPR accuracy > 98% |
| Vehicle Color Recognition | White, pink, black, red, yellow, gray, blue, green, dark orange, purple, brown, and silver gray (color recognition is not supported during the nighttime) |
| Vehicle Brand/Logo Recognition | Vehicle head mode: Acura, Alfaromeo, Ashokleyland, Astonmartin, Audi, Baic, Bently, Benz, BMW, Buick, BYD, Cadillac, Chery, Chevrolet, Chrysler, Citroen, Dacia, Daihatsu, Datsun, Dodge, DS, Ferrari, Fiat, Force, Ford, Foton, Geely, GMC, Greatwall, Hino, Honda, Hyundai, Infiniti, Isuzu, Iveco, Jac, Jaguar, Jeep, Kia, Kinglong, Land, Lexus, Lifan, Lincoln, Mahindra, MAN, Maserati, Mazda, Mercury, MG, Mini, Mitsubishi, Nissan, Opel, Peugeot, Porsche, Renault, Rollsroyce, Saab, Scania, Seat, Skoda, Smart, Subaru, Suzuki, Tata, Tesla, Toyota, UD, Volkswagen, Volvo |
| Vehicle logo | ANPR mode: Wrong-way driving, speeding, driving slow, crossing the white solid line, crossing the yellow solid line, illegal lane change, unfasten seat belt, calling while driving, smoking while driving E-Police mode: Running a red light, wrong-way driving, crossing the solid white line, crossing the solid yellow line, disobeying the direction arrow, illegal left turn, illegal right turn, illegal U-turn (not supported by side mounted cameras), and crossing the stop line |
| Motorcycle Violation Capture | Captures traffic violations including carrying passenger, not wearing helmet, and wrong-way driving |
| Motor Vehicle Violation Snapshot | ANPR mode: Wrong-way driving, speeding, driving slow, crossing the solid white line, crossing the solid yellow line, illegal lane change, unfasten seat belt, calling while driving, smoking while driving |
| Traffic Flow Detection | Generates statistics on vehicle flow, queue length average speed, lane occupancy, and more |
| Traffic Event | Motor vehicle illegal stopping on the roadway; traffic congestion |
| Video | |
| Video Compression | H.265; H.264M; H.264H; MJPEG |
| Video Resolution | 3M (2048 × 1536); UXGA (1600 × 1200); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576); CIF (352 × 288) |
| Video Frame Rate | 50Hz: Maximum 50fps; default main stream (1536 × 2048@25 fps), sub stream (1600 × 1200@25 fps) 60Hz: Maximum 30fps; default main stream (1536 × 2048@30 fps), sub stream (1600 × 1200@30 fps) |
| Video Bitrate | H.264: 32kbps–32767kbps H.265: 32kbps–32767kbps MJPEG: 512kbps–32767kbps |
| Bitrate Control | CBR/VBR |
| White Balance | Car; Night; Customized Color Temperature |
| Edge Enhancement | Yes |
| HLC | Yes |
| BLC | Yes |
| Bad Pixel Correction | Yes |
| Gain Range | 0-100 |
| Image | |
| Composite Image | Supports combining up to 4 images into a composite image |
| Image Resolution | 2048 (H) × 1536 (V) (OSD black background is not calculated in the pixels) |
| Image Encoding Format | JPEG |
| Image Tampering Prevention | Watermark and verification are available for videos and images |
| Network | |
| Network Port | 2 × RJ-45 Ethernet ports, 10/100/1000M network transmission |
| SDK and API | Yes |
| Security | Authorized username and password, MAC address binding, HTTPS encryption, and network access control |
| Network Protocol | IPv4/IPv6; HTTP; TCP/IP; UDP; NTP; DHCP |
| Interoperability | ONVIF (Profile S/Profile G/Profile T) |
| Browser | Microsoft Edge IE: IE9–IE11 Chrome: Chrome 41 and earlier Firefox: Firefox 49 and earlier For Win 10 users, run the browser as administrator |
| Positioning | GPS |
| Network Status Monitoring | NTP; GPS |
| Port | |
| Storage | 1, supports maximum 256GB TF card local storage |
| Iris Control | 1, connects to DC iris or P iris |
| Focus Control | 1, connects to motorized vari-focal lens |
| Frequency Source Sync | 1, supports synchronizing the camera with the mains electricity |
| Peripheral Light | 7, optocoupler signal output (can be configured as flash light or LED strobe sync output interface, frequency adjustable) |
| USB | 2 USB 3.0 Ports |
| RS-485 | 2, connects to devices such as signal detector, radar, and more |
| RS-232 | 4 (1 is used for serial debugging and 3 for connecting to radars) |
| I | 4, same functions as ALARM IN port |
| Audio Input | 1 3.5mm (0.14'') jack |
| Audio Output | 1 3.5mm (0.14'') jack |
| Alarm Input | 4, same functions as I/O port |
| AlarmOutput | 2 (AO1 is for relay output and AO2 for optocoupler output) |
| Power Output | 12 VDC ± 10% voltage output, ≤1.5 A current output |
| General | |
| Power Supply | 100 –240 VAC (50Hz/60Hz) |
| Power Consumption | ≤20W |
| Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
| Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | 10%–90% (RH) |
| Storage Humidity | 0%–90% (RH) |
| Certifications | CE: 4789630630-1, FCC: 4789630630-2 |
| Protection | IP66, IK10 |
| Product Dimensions | 554.0 mm × 204.2 mm × 209.6 mm (21.81" × 8.04" × 8.25") (L × W × H) |
| Net Weight | 4.6 kg (10.14 lb) |
| Gross Weight | 6.6 kg (14.55 lb) |
| Installation | Center mount; side mount |
Further details
 | Dahua ANPR cameras offer a full range of license plate recognition functions. They integrate an algorithm that detects and captures license plate numbers and stores the details in a database The camera can capture and store screenshots of license plates directly to an SD card without the need for an NVR Why choose Dahua ANPR camera? The Dahua ANPR camera range incorporates high-quality 2 megapixel images, varifocal lenses, anti-roll lights and long-range IR LEDs for license plate recognition up to 40 meters away. The cameras offer a white list / black list function that can trigger set events based on stored license plates. Furthermore...
How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking lot entrances, barrier-controlled areas or lane monitoring. The camera can acquire license plates up to a speed of 25 miles per hour ( 40km/h )
 |
| AI | Artificial Intelligence LPR Function: Embedded with LPR Deep Learning Engine |
 | This camera features a resolution of 3MP |
 | Infrared illuminator with 8 LEDs and range 23-30m |
 | True WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.  |
 | This camera features: |
 | This camera has 1 audio input + 1 audio output (RCA) |
 |
|
 | 256GB TF card slot (not included) |
 | This product is covered by a 24 month warranty. |
