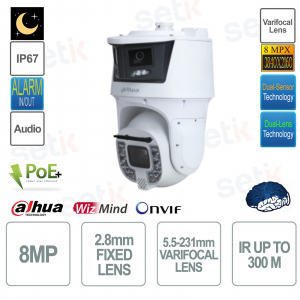

SDT8C842-8P-FA-APV-0280 Dahua 8MP 8Megapixel ONVIF PoE Dual Lens Motorized PTZ Outdoor IP Camera with Artificial Intelligence, 42X Optical Zoom, dual lens: 2.8mm Fixed Lens and 5.5-231mm Varifocal Lens 1/1.8" STARVIS CMOS Sensor with Starlight Technology . H.265+, 10 LED 300M IR Illumination , Day/Night (ICR), WDR 120dB , Defog, ROI, Autotracking , Perimeter Protection, Face Detection, Metadata, Video Analysis , Wiper, RS485, Audio, Alarm, BNC Output, 512GB Micro SD Slot, IP67 Protection.
FIND INSTALLER
€3,424.59
€7,964.16 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
AI IP CAMERA DAHUA PTZ ONVIF® POE DUAL LENS - 42X ZOOM - 8MEGAPIXEL - IR 300M - STARLIGHT - AUTO TRACKING
ONVIF® PoE IP PTZ Camera - AI Series Dahua - SDT8C842-8P-FA-APV-0280
8MP 8Megapixel Resolution, 42x Optical Zoom, Dual Lens: 2.8mm Fixed Lens 5.5-231mm Varifocal Lens - 1/1.8" STARVIS Starlight CMOS Sensor
10 LED IR Illuminator 3 00M - WDR 120dB - Video Analysis, Audio/Alarm, 512GB MicroSD Slot
Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata) - 24 Month Warranty
|
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
- ONVIF® PoE Outdoor Motorized Speed Dome PTZ IP Camera - Dahua AI Series
- Resolution 8MP 8Megapixel
- 1/1.8" Starvis™ CMOS sensor with Starlight Technology
- Starlight: Thanks to the sensor, color shots even at night
- Dual Lens (fixed 2.8mm - varifocal 5.5-231mm)
- Triple Stream
- 42x Optical Zoom + 16x Digital Zoom
- Video compression up to H.265+
- ULTRA WDR (120dB) - Defog, EIS, ROI, Day/Night(ICR)
- Artificial Intelligence: Auto Tracking - Face Detection - Perimeter Protection - Metadata)
- Auto Tracking
- Video Analysis: Abandoned / Lost Objects
- 10 LED IR Illuminator up to 300 Meters!
- Audio: 1 input / 1 output
- Alarm: 7 inputs and 2 outputs
- BNC video output
- RS485 port with Pelco D/P protocols
- IP67 Protection (Dust / Immersion) - Outdoor Camera
- MicroSD slot (512gb - not included)
- Dimensions 318.2 mm × 262.0 mm × 415.0 mm
- Material: Metal
- 24 month warranty
Technical data sheet
| Model | SDT8C842-8P-FA-APV-0280 |
| Room | |
| Image Sensor | Panorama: 1/1.8" CMOS Detail: 1/1.8" CMOS |
| Pixel | Panorama: 8MP Detail: 8 MP |
| Effective Pixels | Panorama: 5376 (H) × 1520 (V) Detail: 3840 (H) × 2160 (V) |
| ROM | Detail: 8GB; Panorama: 8GB |
| RAM | Detail: 4GB; Panorama: 8GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Panorama: 1s–1/30000s Detail: 1s–1/30000s |
| Min. Illumination |
Panorama: |
| IR Distance | Panorama: 30 m (white light) Detail: 300m (IR) |
| Illuminator On/Off Control | Prio Zoom; Manual; Smart IR; Off |
| Illuminator Number | Panorama: 4 (white light) Detail: 6 (IR), 2 (white light) |
| Wiper | Wiper |
| Lens | |
| Focal Length | Panorama: 2.8mm Detail: 5.5mm–231mm |
| Max. Openings | Panorama: F1.0 Detail: F1.4-F4.5 |
| Angle of View | Panorama: H: 200°; V: 50° Detail: H: 61.8°–2.2°; V: 36.3°–1.3°; D: 69.2°–2.4 |
| Optical Zoom | Details: 42 × |
| Focus Control | Auto; semi-auto; manual |
| Close Focus Distance | 0.2 m (0.66 ft) |
| Iris Control | Detail: Auto; manual |
| PTZ | |
| Pan/Tilt Range | Panorama: Tilt: 5°–17° Detail: Pan: 0°–360° endless Tilt: -30° to +90° |
| Manual Speed Control | Detail: Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s |
| Preset Speed | Detail: Pan: 240°/s; Tilt: 100°/s |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power off memory | Yes |
| Idle Motion | Pattern; Preset; Scan; Tour |
| PTZ Protocol | DH-SD Pelco-P/D (Auto recognition) |
| Intelligence | |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; tracking; optimization; capturing pictures; uploading high-quality face snapshots; motor vehicle attributes; non-motor vehicle attributes; human body attributes; face attributes |
| IVS (Perimeter Protection) | Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. Supports up to 5 face databases; registers person one by one or in batches; sets face similarity; compares faces with 10,000 faces. |
| Auto Tracking | Yes |
| Active Deterrence | |
| Light Warning | White light warning Flash duration: 5 s–30 s Flash frequency: high, medium, low |
| Sound Warning | Offers 22 sound alarms and supports importing custom sound alarms. |
| Video | |
| Video Compression | H.264H;H.264B;Smart H.265+;H.264;H.265;MJPEG(Sub Stream);Smart H.264+ |
| Streaming Capability | 3 Streams |
| Resolution | Panorama: 8M (5376 × 1520); 2688 × 752; 1344 × 368; 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) Detail: 8M (3840 × 2160); 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640×480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Panorama: Main stream: (5376 × 1520) @(1–25/30 fps) Sub stream 1: (1344 × 368)/D1/VGA/CIF @(1–25/30 fps) Sub stream 2: (2688 × 752)/1080p/1.3M/720p @(1–25/30 fps) Detail: Main stream: 8M (3840 × 2160)/4M(2560 × 1440)/3M(2304 × 1296)/1080P/1.3M/720p @(1–25/30 fps) Sub stream 1: D1/VGA/CIF @(1-25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1-25/30 fps) |
| Bitrate Control | CBR/VBR |
| Video Bitrate | Panorama: H264: 8Kbps–16384Kbps H265: 3Kbps–13568Kbps Detail: H264: 8Kbps–16384Kbps H265: 3Kbps–13568Kbps |
| Day/Night | Panorama: Color; B/W Detail: Auto (ICR) |
| BLC | Yes |
| HLC | Panorama: DWDR Detail: 120dB |
| WDR | Yes |
| White Balance | Panorama and Detail: Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Panorama: Auto; manual Detail: Auto; manual |
| Noise Reduction | Panorama: 2D NR; 3D NR Detail: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (ROI) | Yes |
| Image Stabilization | Detail: EIS |
| Defog | Panorama: Electronic Detail: Optical |
| Digital Zoom | 16x |
| Flip | 180° |
| Y/N Ratio | Panorama: ≥ 55 dB Detail: ≥ 55dB |
| Audio | |
| Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Interoperability | CGI; GA/T 1400; GB/T28181; SDK; ONVIF (Profile S&G&T) |
| Streaming Method | Unicast / Multicast |
| User/Host | 20 (total bandwidth: 64M) |
| Storage | Micro SD card (512GB); FTP/SFTP; NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 52 and later versions Safari 10 and later versions |
| Management Software | C9100; 5 Series NVR; ICC-B8900; SmartPSS Plus; IVSS |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | CE: EN55032 EN55035 EN61000-3-2 EN61000-3-3;EN50130-4 FCC: FCC part15B |
| Port | |
| RS-485 | 1 (baud rate: 1200 bps–9600 bps) |
| Audio Input | 1 channel (LINE IN, bare wire) |
| Audio Output | 1 channel (LINE OUT, bare wire) |
| Alarm Input | 7 (on-off value input: 0–5 VDC) |
| AlarmOutput | 2 channels |
| Alarm Linkage | Capture; recording; send email; presets; tours; pattern; alarm digital input |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection; power exception detection |
| Alarm I/O | 7/2 |
| Audio I/O | 1/1 |
| Power | |
| Power Supply | 36 VDC, 2.23 A (±25%) PoE++(802.3bt) |
| Power Consumption | Basic: 32W Max: 58 W (panoramic camera illuminator, detail camera IR illuminator, light warning, speaker, heated glass, intelligence and PTZ) |
| Environmental | |
| Operating Conditions | –40 °C to +70 °C (–40 °F to +158 °F) |
| Operating Humidity | ≤95% |
| Protection | IP67 |
| Construction | |
| Dimensions | 318.2 mm × 262.0 mm × 415.0 mm (12.53" × 10.31" × 16.34") (L × W × H) |
| Net Weight | 8.8 kg (19.40 ft) |
| Gross Weight | 11.12 kg (24.52 ft) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard |
 |
The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. PoE is the first generation technology, PoE+ is the latest standard . PoE+ (IEEE 802.3at) (High-PoE) |
|
|
AI | Artificial Intelligence - Auto tracking
|
 |
Supports Intelligent 3D Positioning with DH-SD protocol. This system allows not only movement on the camera axis but also positioning in terms of depth, and the same can be stored in the Presets Generic PTZ Functions: Pan/Tilt Range: Panorama: Tilt: 5°–17° Detail: Pan: 0°–360° endless Tilt: -30° to +90° Manual Control Speed: Detail: Pan: 0.1°/s–240°/s Tilt: 0.1°/s–100°/s Preset Speed: Detail: Pan: 240° /s; Tilt: 100° /s Presets: 300 PTZ Mode: 5 Patterns, 8 Tours(up to 32 presets per tour), Auto Pan, 5 Auto Scan Speed Setup: Human-oriented focal length/ speed adaptation Power up Action: Auto restore to previous PTZ and lens status after power failure Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period Protocol: DH-SD, Pelco-P/D (Auto recognition) |
|
|
Dual-Sensor Technology! FULL COLOR STARLIGHT: The camera mounts a high-performance, large-aperture 1/1.8" F1.6 lens. With increased light absorption and an advanced image processing algorithm, the camera features impressive low-light performance with an exceptional balance between noise reduction and moving object blur. With this CMOS sensor, it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white.
With the SENSOR present, night shots will be in color
|
 |
This camera features a resolution of 8Megapixel 8MP |
|
|
Dual-Lens Technology! This camera is equipped with 2 lenses , a fixed 2.8mm on the panoramic camera and a varifocal 5mm-231mm 42x Optical Zoom + 16x Digital Zoom |
 |
This camera is equipped with a wiper , useful for improving the view in case of rain.
|
 |
This camera also provides basic VIDEO ANALYSIS functions: |
 |
This camera features AUTO TRACKING function.
|
 |
This camera is equipped with a maximum range of 300 meters! |
 |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 |
Latest function present ONLY in the Sony Effio-V, allows you to clearly see images taken in particular weather conditions: rain, smoke and fog   |
 |
This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable.  |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.  |
 |
It is extremely useful to have Inputs/Outputs in a CCTV system to be able to control relays or activate recording following an event. This 7 Input and 2 Output Camera |
 |
This camera has 1 Audio input + 1 Audio Output |
 |
RS 485 for PTZ Controls (Remotely controllable cameras) |
 |
Possibility to insert Micro SD (512GB - not included ) |
 |
Protection level IP67 (Dust / Immersion) |
 |
This product is covered by a 24 month warranty. |
