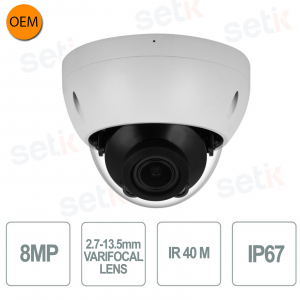

Dahua OEM Series | Dahua IPC-DB28R IP camera equivalent to the IPC-HDBW2831R-ZS-S2 outdoor camera for video surveillance. IP Dome PoE model, resolution 3840x2160 8 Megapixel (Max20fps) . 2.7-13.5mm varifocal lens with motorized zoom . 1/2.7" progressive CMOS sensor Video Compression up to H.265+ . 2x LED IR illuminator up to 40m. WDR 120dB , Day/Night(ICR), IP67 protection. PoE. MicroSD Card slot .
https://www.setik.biz/en/cameras/10572-dahua-ipc-db28r-dahua-ip-dome-network-camera-8mp-cmos-127-varifocal-lens-27-135mm.html
€214.59
€523.38 -59%
taxes included
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
CHRISTMAS WEEK 2024 ×
FREE SHIPPING
ON THE ENTIRE CATALOGUE!
1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!
Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives
|
8MP MOTORIZED DOME IP CAMERA - H.265 - MICROSD SLOT - POE - DAHUA
IP Dome Camera - Dahua
8Megapixel Resolution - 2.7-13.5mm Motorized Lens - Compression up to H.265+
IR illuminator up to 40 meters - WDR 120dB - MicroSD slot - IP67 protection - 8MP RESOLUTION (3840x2160)
Dahua OEM Series: Without Dahua logos - 12V DC power supply (not included) / PoE - 24 months warranty
8Megapixel Resolution - 2.7-13.5mm Motorized Lens - Compression up to H.265+
IR illuminator up to 40 meters - WDR 120dB - MicroSD slot - IP67 protection - 8MP RESOLUTION (3840x2160)
Dahua OEM Series: Without Dahua logos - 12V DC power supply (not included) / PoE - 24 months warranty
Product details
- IP Dome Camera - Dahua
- Dahua OEM Series: Equivalent to Dahua IPC-HDBW2831R-ZS-S2 model (aesthetic, firmware). Without Dahua logos
- Resolution: 8Megapixel (Max 20fps)
- 1/2.7” progressive CMOS image sensor
- 2.7-13.5mm Varifocal Lens with Motorized Zoom
- Video compression up to H.265+
- Functions: WDR 120dB , Day/Night(ICR), 3DNR, BLC, HLC, Mirror
- ONVIF® Standard
- IR LED illuminator with maximum range of 40 meters
- Remote Visibility. Support DMSS Application (Best Mobile CCTV Software) .
- IP67 Protection (Dust/Immersion)
- Suitable for indoor/outdoor environments
- Power supply 12V DC (not included)
- PoE Protocol
- MicroSD slot up to 256GB
- Dimensions: Ø122 x 93.4 (H) mm
- 24 Months Italian Warranty
Technical data sheet
| Model | IPC-DB28R |
| 1/2.7" 8 megapixel CMOS sensor | |
| Compression formats: Smart H.265+, Smart H.264+, H.265, H.264, MJPEG | |
| Digital resolution: 8MP (3840x2160), 6MP (3072x2048), 5MP (3072x1728), 5MP (2880x1620), 4MP (2688x1520), 3MP (2048x1536), 3MP (2304x1296), 1080P (1920x1080), 1.3MP (1280x960), 720P (1280x720), D1 (704x576), VGA (640x480), CIF (352x288) | |
| Stream 1: 8MP (1~20 ips), 4MP (1~25/30 ips) | |
| Stream 2: D1 (1~25/30fps) | |
| Day/Night mode with removable mechanical filter | |
| Smart IR: 2 IR leds, 40 meters | |
| 0.008 lux F1.5 (color), 0.0008 lux F1.5 (B/W), 0 lux IR on | |
| 2.7~13.5mm motorized optics | |
| Angle of view: 113°~31°(H), 58°~18°(V), 138°~36°(D) | |
| Imaging modes: BLC, HLC, WDR 120dB, 3D-NR, Mirror. | |
| White balance with 6 modes | |
| Automatic and manual gain control | |
| Supports 4-zone videosensor, 4 regions of interest (ROI) and 4-zone privacy mask | |
| Perimeter protection with cross-line detection and intrusion detection (both modes support human/vehicle classification) | |
| SMD Plus | |
| Built-in microphone | |
| MicroSD card slot up to 256GB (not included) | |
| Network interface: RJ45 (10/100 Base-T) | |
| Network protocols: IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS , PPPoE, Bounjour | |
| ONVIF (Profile S/T), CGI, P2P, Milestone, SDK and API support | |
| Up to 20 users | |
| Remote viewing via IE, Chrome, Firefox browsers | |
| Management software | |
| Compatible with IOS and Android mobile devices | |
| Power supply: 12V DC / PoE (802.3af) | |
| Maximum power consumption: 6.3W (12V) / 7.3W (PoE) | |
| Storage temperature from -40°C ~ +60°C | |
| Operating temperature: -30°C ~ +60°C (-30°C ~ +60°C) | |
| Relative humidity: <95% | |
| IP67 protection level | |
| Vandal proof IK10 | |
| Metal housing | |
| Dimensions: Ø122 x 93.4 (H) mm | |
| Net weight: 500 g | |
| Gross weight: 660 g | |
| 3AXIS: 0°~355°(PAN), 0°~67°(TILT), 0°~355°(Rotation) | |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports Onvif version. |
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
| This camera provides video compression in H.264 format up to H.265+ , the new standard for video compression! |
 | This camera features a resolution of 8Megapixel 4K ULTRA-HD |
 | This camera features a 2.7-13.5mm varifocal lens, with motorized zoom. Motorized zoom example: |
 | Infrared Illuminator with 2 LEDs with a range of up to 40M for night vision |
 | Remote visibility on mobile using Dahua DMSS application. |
 | Protection level IP67 (Dust / Immersion) |
 | It allows you to adapt the lens to Night/Day vision and the consequent automatic management of the IR illuminator. |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.  |
 | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (Entrance or exit of parking lots, shooting of license plates, presence of particular lights etc...). |
 | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 | 3D-NR is the most advanced version of Noise Reduction management, it allows still images in low light and in motion, the most powerful solution currently available for obtaining maximum results in low light.  |
 | Possibility to insert Micro SD up to a maximum of 256Gb |
 | 12V DC power supply NOT included!
|
 | This product is covered by a 24 month warranty. |
