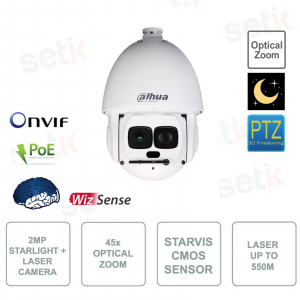

WizSense SD6AL245GB-HNV Series Dahua Starlight Laser PTZ Camera, IP POE ONVIF, with 1920x1080 2Megapixel Resolution, varifocal with 45X optical zoom (3.95-177.7mm) and 16x digital zoom - 1/2.8" Starvis™ CMOS with Starlight Technology . IR illuminator up to 550 meters. Triple Stream, H.265+ video compression, 120dB WDR, Auto-tracking, Perimeter protection, Facial recognition, SMD Plus, Audio, Alarm, MicroSD slot up to 512GB - RS485 interface - RJ45 - In metal - IP67 protection, TVS8000V - Dahua Technology.
2MP PTZ CAMERA WITH 45x OPTICAL ZOOM - IP POE ONVIF® - STARLIGHT LASER - STARVIS CMOS - ARTIFICIAL INTELLIGENCE - VIDEO ANALYSIS - SD6AL245GB-HNV

SPEED Dome PTZ Starlight Laser Dahua camera - SD6AL245GB-HNV
2Megapixel Resolution - 3.95mm~177.7mm Lens (45x optical zoom, 16x digital) - 1/2.8" Starlight CMOS Sensor - Triple Stream - H.265+ Compression - 2xIR and 1xlaser illuminator up to 550m - AI: Perimeter Protection - Facial Recognition - Auto Tracking - SMD Plus - WDR120dB - BLC - HLC - ROI - Defog - EIS - AWB - AGC - Day/Night - PFA Technology - Video Analysis - Audio/Alarm - RS485 - RJ45 LAN - Slot for Micro SD Card up to 512GB (not included) - IP67/TVS8000 Protection - 24 months warranty
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details

- WizSense Starlight Laser PTZ IP PoE ONVIF® camera - 2MP - Dahua - SD6AL245GB-HNV
- Resolution 2Megapixel
- 3.95mm~177.7mm Optics (45x optical zoom)
- 1/2.8" STARVIS™ CMOS sensor with Starlight Technology
- Starlight Technology: Color Night Vision!
- PTZ Range: Pan: 0°–360°; Tilt: -20°–+90°
- Video Compression up to H.265+
- Triple Stream
- Day/Night, BLC, HLC, ROI, EIS, Defog, WDR (120db), 2D/3D DNR
- Quality illuminator up to 550m ( 2xIR, 1xlaser) .
- Artificial Intelligence: Perimeter Protection - Auto Tracking - Face Detection - Smart Capture for People and Vehicles
- Video Analysis : Abandoned / Lost Objects
- 7 alarm inputs and 2 alarm outputs
- Remote viewing via DMSS
- 1 audio input and 1 audio output (two-way audio)
- 1 microSD-Card slot (Max 512GB not included)
- 1 RS-485 port
- IP67 protection / TVS8000V
- Metal
- Dimension: 358mm × Φ239.8mm (14.09" × Φ9.44")
- Weight: 6.8
- 24 month warranty
Technical data sheet
SD6AL245GB-HNV | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Room | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8" CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pixel | 2MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Resolution | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC 36V/2.23A (-5% to +10%); Hi-PoE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | Basic: 15W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environment | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Temperature | –40°C to +70°C (–40°F to +158°F) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Humidity | ≤ 95%RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection | TVS 6000V lightning proof; surge protection; voltage | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Structure | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 358mm × Φ239.8mm (14.09" × Φ9.44") | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 6.8 kg (14.99 lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 9.2 kg (20.28 lb) |
Further details
![]() | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
![]() | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
AI | Artificial Intelligence - Perimeter Protection: Intrusion, Line Crossing - Detection of people and motorized and non-motorized vehicles - Face detection - Autotracking: The system will detect objects moving in a specific video surveillance area and automatically enlarge it for a better view of the tracked object. | |
![]() | This camera has a resolution of 2 Megapixel 1920x1080 |
![]() | This camera is equipped with a wiper , useful for improving the view in case of rain. |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression. | |
![]() | 1/2.8" STARVIS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With the addition of the STARVIS feature we have significant advantages: - Back-illuminated structure with 2.9 µm-square unit pixel - High sensitivity (twice or more times higher than other products on the market) - Increased sensitivity when near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile Interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the STARVIS CMOS sensor, you can shoot in color even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color |
![]() | 45x Optical Zoom (3.95mm~177.7mm) + 16x Digital Zoom |
![]() | Triple Stream: Main stream: 1080P/1.3M/720P (1–50/60 fps) |
![]() | IR illuminator 2xLED and 1xlaser with maximum range up to 550 meters! |
![]() | This camera also features VIDEO ANALYSIS / SMART DETECTION functions: |
![]() | Generic PTZ Functions: |
![]() | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to control relays or activate recording following an event. This camera has 7 alarm inputs and 2 alarm outputs. |
![]() | This camera has 1 Audio Input + 1 Audio Output (two-way audio) |
![]() | RS 485 for PTZ Controls (Remotely controllable cameras) |
![]() |
Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. ![]() |
![]() | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. ![]() |
![]() | BLC (BACK LIGHT COMPENSATION) is one of the 3 solutions for managing images with contrast. The BLC function allows a discrete adaptation to all those situations where shooting is difficult (Entrance or exit of parking lots, shooting of license plates, presence of particular lights etc...). |
![]() | This function allows you to clearly see images taken in particular weather conditions: rain, smoke and fog. ![]() ![]() |
![]() | This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable. ![]() |
![]() | Possibility to insert Micro SD up to a maximum of 512GB (not included) |
![]() | This camera features a metal body |
![]() | Protection level IP67 (Dust / Immersion) |
![]() | This product is covered by a 24 month warranty. |
