WizMind 180° Panoramic 8MP Motorized Dome Multi-Sensor Camera - Dahua

-57% New

PSDW8842S-A180-D425 Dahua ONVIF Dome IP camera Movable WizMind with Starlight technology. Multi lens (1x PTZ 5.3-134mm Motorized Varifocal with 40x optical zoom + 4x Panoramic 180° 2.8mm Fixed) and Multi sensor (1x PTZ CMOS 1/1.8" 4MP and 4x Panoramic: 1/1.8" 2MP). Supports Smart H.265+/H.264+ . IR illuminator 4 LED 100M. Day/Night(ICR), 1x PTZ WDR 120 dB, 1x Panoramic WDR true 120 dB, 3D NR, AWB, AGC, BLC, HLC, ROI. IVS (Tripwire, Intrusion). Smart search, Smart Traking, Crowd map. 2 Audio inputs/1 output, 3 Alarm inputs/2 outputs. MicroSD slot up to 512 GB. IP66 protection. Dahua Technology

Reference: PSDW8842S-A180-D425

Brand: Dahua

EAN: 6923172541307

FIND INSTALLER

https://www.setik.biz/en/cameras/10566-dahua-psdw8842s-a180-d425-dahua-wizmind-180-panoramic-8mp-motorized-dome-multi-sensor-camera.html

€2,683.85

€6,241.52 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Sheet Further Details Download

MULTI-LENS AND MULTI-SENSOR MOTORIZED DOME IP CAMERA (4x PANORAMIC 2MP, 1X PTZ 4MP) - AUDIO/ALARM - IVS - DAHUA

Dahua WizMind Onvif Motorized Multi-Sensor Dome Camera
4x Panoramic 2MP - 1x PTZ 4MP - Multi Lens (1x PTZ 5.3-134mm Motorized Varifocal with 40x optical zoom + 4x Panoramic 180° 2.8mm fixed) - Multi-sensor (1x 1/1.8" PTZ + 4x 1/1.8" Panoramic) - IR 4 LED 100M Starlight - IVS - Smart Search, Smart Tracking, Crowd map - 2 Audio inputs/1 Audio outputs - 3 Alarm inputs/2 Alarm outputs - 1x PTZ WDR 120 dB - 1x Panoramic WDR true 120 dB - ROI - BLC - AGC - AWB
MicroSD slot - Power supply (not included) - suitable for outdoor environments - 24 month warranty

Product details

Telecamera Multi-Sensor Dome motorizzata WizMind Dahua

WizMind Onvif Motorized Multi-Sensor Dome Camera - Dahua
Suitable for indoor environments
2 Megapixel Panoramic Resolution, 4 Megapixel PTZ Resolution
Multi Lens: 1x 5.3-134mm motorized varifocal PTZ with 40x optical zoom + 4x 2.8mm fixed panoramic
Support 180° panoramic view
Multi Sensor : 1x PTZ CMOS Sensor 1/1.8" + 4x Panoramic 1/1.8"
Video Compression up to H.265+/H.264+
Day/Night(ICR), 3D NR, AWB, AGC, BLC, HLC
1x PTZ WDR 120 dB, 1x Overview true WDR 120 dB
Motion Detection, Region Of Interest (ROI), Privacy Mask
4 LED 100MT Starlight IR illuminator
IVS (Tripwire, Intrusion)
Smart Search, Smart Tracking, Crowd Map
Audio: 2 inputs + 1 outputs
Alarm: 3 inputs + 2 outputs
MicroSD slot (Max 512 GB - not included)
36V DC power supply (not included)
Dimensions 326 mm × Φ280 mm
24 month warranty

Technical data sheet

ROOM
Model	PSDW8842S-A180-D425
Panoramic Camera
Image Sensor	Panoramic network camera: 1/1.8"CMOS PTZ camera: 1/1.8"CMOS
Max. Resolution	Panoramic camera: 4096 (H) × 1800 (V) PTZ camera: 2560 (H) × 1440 (V)
ROM	Panoramic camera: 4 GB PTZ camera: 4GB
RAM	Panoramic camera: 4 GB PTZ camera: 1GB
Scanning system	Progressive
Electronic Shutter Speed	Panoramic camera: Auto/Manual 1/3 s–1/100,000 s PTZ camera: Auto/Manual 1/1s-1/300,000s
Minimum Illumination	Panoramic network camera:0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0(B/W, 30 IRE) PTZ camera:0.001 lux @F1.6(Color, 30 IRE); 0.0001 lux @F1.6(B/W, 30 IRE); 0 lux (Illuminator on)
Y/N Ratio	Panoramic camera: 56dB PTZ camera: 56dB
Illumination Distance	Panoramic network camera: NA PTZ camera: up to 100 m (328.08 ft) (IR on)
Illuminator On/Off Control	Auto; Zoomprio; Manual
Illuminator Number	Panoramic network camera: NA PTZ camera: 4(IR LED)
Lens
Lens Type	Panoramic network camera: Fixed-focal PTZ camera: Motorized vari-focal
Mount Type	Panoramic network camera: M16 PTZ camera: Module
Focal Length	Panoramic network camera: 2.8 mm PTZ camera: 5.3 mm–134 mm, optical zoom (25 times)
Max. Openings	Panoramic network camera: F1.0 PTZ camera: F1.6–F4.0
Field of View	Panoramic network camera: H: 180°; V: 103° PTZ camera: H: 3.5°–58°; V: 2°–35°; D: 2nd–64th
Iris Control	Panoramic network camera: Fixed PTZ camera: Auto
Close Focus Distance	Panoramic network camera:1.4 m (4.59 ft) PTZ camera: 0.5 m–7 m (1.64 ft–22.96 ft)
Intelligent
IVS (Perimeter Protection)	Panoramic network camera: Intrusion, tripwire PTZ camera: Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering.
Face Detection	PTZ camera: Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Video Metadata	PTZ camera: Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, calling, etc. Non-motor vehicle attributes: type, color, number of people, top type and color, helmet. Human body attributes: gender, top/bottom type and color, bag, hat, gender, and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.
SmartSearch	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)
Smart Codec	Smart H.265+/ Smart H.264+
Video Frame Rate	Panoramic camera: Main stream: 4096 × 1800 @1–25/30 fps; sub stream: 1920 × 832 @1–25/30 fps; Third stream: 1920 × 832@(1-25/30fps) PTZ camera: Main stream: 2688 × 1520@(1-25/30fps) sub stream: 704 × 480 @1–25/30 fps; Third stream: 1920 × 1080@(1-25/30fps)
Stream Capability	3 streams
Resolution	Panoramic camera: Main stream: 4096 × 1800; 3840 × 1680; 2880 × 1264; 2048 × 900 Sub Stream: 1024 × 452 Third Stream: 1920 × 832; 1280×560 PTZ camera: Main stream: 2560 × 1440; 1920×1080; 1280×960; 1280×720 Sub Stream: 704×576; 352×288 Third Stream: 1920×1080; 1280×960; 1280×720
Bitrate Control	CBR/VBR
Video Bitrate	Panoramic camera: H.264: 3328kbps–16640kbps H.265: 1280kbps–9984kbps PTZ camera: H.264: 2816kbps – 13056kbps H.265: 1024kbps –7936kbps
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	Panoramic network camera: WDR (120 dB) PTZ camera: WDR (120dB)
White Balance	Panoramic network camera: Auto; natural; street lamp; outdoor; manual; regional custom PTZ camera: Car; indoor; outdoor; tracking; manual; sodium lamp; natural; street lamp
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Electronic Image Stabilization (EIS)	Panoramic network camera: NA PTZ camera: Electronic Image Stabilization (EIS)
Smart Lighting	Panoramic network camera:NA PTZ camera: Yes
Defog	Panoramic network camera:NA PTZ camera: Yes
Image Rotation	0°/180° (PTZ camera)
Privacy Masking	Panoramic network camera: 4 areas PTZ camera: 8 areas
LDC	Panoramic network camera: Yes PTZ camera: No
Audio
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in speaker
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; parking detection; scene changing; audio detection; voltage detection; external alarm; video metadata; security exception
Network
SDK and API	Yes
Network	RJ-45 (10/100/1000 Base-T)
Protocol	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Configuration encryption; trusted execution; Digests; security logs;WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestones
User/Host	14 (Total bandwidth: 176M)
Storage	Micro SD card (support max. 512GB); FTP; SFTP; NFS; SMB
Browser	IE: IE11 Chrome Firefox
Management Software	DSS
PTZ Dome
Pan Range	Pan: 0° to 360° endless Tilt: –10° to 90°, auto flip 180°
Manual Speed Control	Pan: 0.1°/s–120°/s Tilt: 0.1°/s–50°/s
Positioning Accuracy	Pan: 0.1° Tilt: 0.1°
Remote PTZ Reset	Yes
Presets	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power off Memory	Yes
Idle Motion	Preset/Pattern/Tour/Scan
Time Task	Yes
3D Positioning	Yes
PTZ Limit	Yes
Position Display	Yes
Information Display	Yes
Time Display	Yes
Others	Yes
Certifications
Certification	CE-LVD:EN62368-1 CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU FCC:47 CFR FCC Part 15, Subpart B UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14
Port
Audio Input	2 channels (terminals)
Audio Output	1 channel (terminal)
Alarm Input	3 channels in: 5mA 3V–5V DC
AlarmOutput	2 channels out: 1,000 mA 30 VDC/500 mA 50 VAC
Analog Output	1 channel (CVBS output: BNC)
Power
Power Supply	36V DC
Power Consumption	Basic: 35W (36VDC) Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation): 45 W (36 VDC)
Environment
Operating Conditions	–40°C to +70°C (-40°F to 158°F)
Operating Humidity	≤95%
Storage Conditions	5°C –40°C (41°F–104°F) (The temperature difference of each day is within 15°C /59°F.)
Protection Grade	IP67
Structure
Casing	Metal + plastic

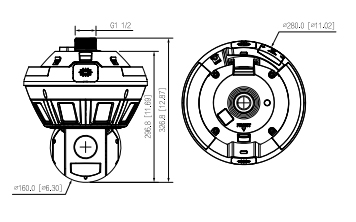

Dimensions	326mm × Φ280mm (12.83" × Φ11.02")
Net Weight	7kg (15.43lb)
Gross Weight	10.4 kg (22.93 lb)

Further details

	Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard
	Multi-Lens Technology! This camera is equipped with multi-lens: 1x PTZ: 5.3-134mm motorized varifocal with 40x optical zoom 4x Overview: 2.8mm fixed
	Multi-Sensor Technology! This camera is equipped with 5x 1/1.8" CMOS sensors with STARLIGHT technology. Low brightness, color vision even in night mode Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be in color Below are two examples of night vision both in total darkness and in the presence of artificial lights.
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	4 LED IR illuminator and range up to 100 meters!
	This camera provides VIDEO ANALYSIS functions: - Crossing the line - Intrusion
	This camera features advanced intelligent functions : - Intelligent Search - Crowd Distribution map - Smart Tracking
	2 Audio Inputs + 1 Audio Outputs.
	This camera has 3 inputs + 2 alarm outputs
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	Automatic Gain Control, with the ability to independently adjust sensitivity in particular conditions of use
	BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.
	HLC (High Light Compensation) allows for better light management in the presence of direct light (cars, torches, etc.). It also prevents attempts to blur the image.
	3D-NR is the most advanced version of NOISE REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution for obtaining maximum results in low light.
	Possibility to insert Micro SD up to a maximum of 512Gb - not included
	To operate the camera, a 36V DC power supply is required (not included)
	Protection level IP67 (Dust / Immersion)
	This product is covered by a 24 month warranty.
