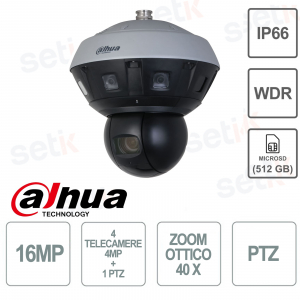

16MP Multi-Sensor 180° Panoramic PTZ IP Camera -S3 - Dahua

-57%

PSDW81642M-A180-D440-S3 Dahua ONVIF multi-lens and multi-sensor PTZ IP camera - 4 x 4 Megapixel 2.8mm panoramic cameras + 1 x 4 Megapixel PTZ 5.5-220mm motorized 40x camera - 1/1.8" CMOS PTZ sensor and 1/1.8" CMOS Panoramic sensor, H.265+, 400m PTZ IR illuminator, Day/Night (ICR), BLC, HLC, panoramic DWDR, PTZ WDR 120dB, 3D-NDR, defog (PTZ), motion detection , ROI, MicroSD slot, 2x Audio input + 2x Audio output, 7x Alarm input + 3x Alarm output, IP66.
S3 version.

Reference: PSDW81642M-A180-D440-S3

Brand: Dahua

EAN: 6923172543325

FIND INSTALLER

https://www.setik.biz/en/cameras/10565-dahua-psdw81642m-a180-d440-s3-dahua-s3-16mp-multi-sensor-180-panoramic-ip-ptz-camera.html

€4,161.65

€9,678.26 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

CHRISTMAS WEEK 2024 ×

FREE SHIPPING
ON THE ENTIRE CATALOGUE!

1. Reach at least €249
2. Select FEDEX
3. Confirm code NATALE-FREE-E
4. Complete your order.
Shipping will be free of charge!

Until 10 a.m. on 27/12/2024
Code NOT combinable with other actives

Description Product Details Technical Sheet Further Details Download

16MP MULTI-LENS AND MULTI-PTZ IP CAMERA - ONVIF® SENSOR - AUDIO - ALARM - MOTION DETECTION-PSDW81642M-A180-D440-S3

PSDW81642M-A180-D440-S3 Dahua ONVIF® multi-lens and multi-sensor IP PTZ camera
Equipped with 4 x 4 Megapixel 2.8mm panoramic cameras + 1 x 5.5-220mm motorized 40x PTZ camera
1/1.8" CMOS Sensor & 1/1.8" Panoramic CMOS, H.265+, 400m PTZ IR Illuminator
Functions: Day/Night(ICR), BLC, HLC, panoramic DWDR, PTZ WDR 120dB, 3D-NDR, defog (PTZ)
Motion detection , Smart tracking. GPS/BDS positioning. ROI, MicroSD slot
2x Audio input + 2x Audio output, 7x Alarm input + 3x Alarm output, IP66, IK10 - 24 month warranty

Product details

ONVIF® IP PTZ camera - Dahua
Resolution 16 Megapixel 16MP 5520X2700
Multi Lens: 1x 5.5-220mm(40x) motorized PTZ + 8x 2.8mm fixed panoramic
Multi Sensor : 1x PTZ Sensor 4 MP CMOS 1/1.8" + 8x Panoramic Sensor 2 MP CMOS 1/1.8"
Video Compression up to H.265+
Day/Night(ICR), BLC / HLC / DWDR(Panoramic) / WDR 120dB (PTZ) /
Motion Detection , Region Of Interest (ROI)
AR landscape technology; various AR tags can be overlaid.
Smart tracking. GPS/BDS positioning.
PTZ IR illuminator up to 400m
Audio: 2 input + 2 output
Alarm: 7 inputs + 2 outputs
MicroSD slot (Max 512GB - not included)
36V DC power supply (not included)
Φ383mm × 462mm (15.08" × Φ18.19")
24 month warranty

Technical data sheet

Room

Image Sensor

Channel 1 (Panoramic): 1/1.8" 4 Megapixel progressive CMOS
Channel 2 (PTZ): 1/1.8" 4 Megapixel progressive CMOS

Pixel

Channel 1 (Panoramic): 16 MP
Channel 2 (PTZ): 4MP

Max. Resolution

Channel 1 (Panoramic): 5520 (H) × 2700 (V)
Channel 2 (PTZ): 2560 (H) × 1440 (V)

ROM

Channel 1 (Panoramic): 8 GB
Channel 2 (PTZ): 8GB

RAM

Channel 1 (Panoramic): 4GB
Channel 2 (PTZ): 2GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1 (Panoramic):
0.0005 lux@F1.0 (Color,30 IRE)
0.0001 lux@F1.0 (B/W,30 IRE)
Channel 2 (PTZ):
0.001 lux@F1.4 (Color,30 IRE)
0.0005 lux @F1.4(B/W,30 IRE);
0 lux (Illuminator on)

Y/N Ratio

>56dB

Illumination Distance

Channel 1 (Panoramic): No
Channel 2 (PTZ): ≥ 400 m (1312.34 ft)

Illuminator On/Off Control

Auto; Manual; Zoomprio

Illuminator Number

Channel 1 (Panoramic): No
Channel 2 (PTZ): 7 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0° to 360°
Tilt: -11° to 90°

Built-in Battery

Channel 1 (Panoramic): Horizontal welding/lithium battery/3 V
Channel 2 (PTZ): Horizontal welding/lithium battery/3 V

Lens

Lens Type

Channel 1 (Panoramic): Fixed-focal
Channel 2 (PTZ): Vari-focal

Lens Mount

Channel 1 (Panoramic): M16
Channel 2 (PTZ): Module

Focal Length

Channel 1 (Panoramic) : 2.8 mm
Channel 2 (PTZ): 5.5 mm–220 mm

Max. Openings

Channel 1 (Panoramic) : F1.0
Channel 2 (PTZ): F1.4

Field of View

Channel 1 (Panoramic):
H: 180°
V: 103°
Channel 2 (PTZ):
H: 2.2°–61.8°
V: 1.3°–36.3°
D: 2.4°–69.2°

Iris Control

Channel 1 (Panoramic): No
Channel 2 (PTZ): P-iris

Close Focus Distance

Channel 1 (Panoramic): 1.4 m (4.59 ft)
Channel 2 (PTZ): 0.5 m–2 m (1.64 ft–6.56 ft) (T to W)

Smart Event

IVS

Channel 1 (Panoramic): Yes
Channel 2 (PTZ): Yes

Intelligence

Intelligence Description

Channel 1 (Panoramic): Perimeter protection, crowd map, vehicle density.
Channel 2 (PTZ): Perimeter protection, video metadata, face recognition

IVS (Perimeter Protection)

Channel 1 (Panoramic): Tripwire; intrusion; parking detection
Channel 2 (PTZ):Tripwire; intrusion; parking detection; crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection

Face Recognition

Channel 1 (Panoramic): No
Channel 2 (PTZ):
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot)
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures

Vehicle Density

Channel 1 (Panoramic):Vehicle density; parking upper limit; traffic congestion alarm
Channel 2 (PTZ): No

Crowd Distribution Map

Channel 1 (Panoramic):Crowd map, global crowd density; crowd density in area; people counting in area;
Channel 2 (PTZ): No

Video Metadata

Channel 1 (Panoramic): No
Channel 2 (PTZ):
Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: License plate, plate color, vehicle type, vehicle color, vehicle logo, vehicle model/year, sun visor, seatbelt., smoking, calling, ornament, and annual inspection sticker.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, gender, and umbrella.
Face attributes: Gender, age, expressions, glasses, face mask, and bread

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.264+
Smart H.265+

Video Frame Rate

Channel 1 (Panoramic):
Main stream: 5520 × 2700 @(1–25/30 fps)
sub stream: 1920 × 940 @ (1–25/30 fps)
third stream: 4096 × 2064 @ (1–25/30 fps)
Channel 2 (PTZ):
Main stream: 2560 × 1440@ (1–25/30 fps)
sub stream: 704×576@ (1–25/30 fps)
third stream:1920 × 1080@ (1–25/30 fps)

Stream Capability

3 streams

Resolution

Channel 1 (Panoramic):
Main stream: 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096×900
sub stream: 2048 × 452
third stream: 3840 × 832; 2560×560
Channel 2 (PTZ):
Main stream: 2560 × 1440; 1920×1080; 1280×960; 1280×720
sub stream: 704 × 576; 640×480; 352×288
third stream: 1920 × 1080; 1280×960; 1280×720

Bitrate Control

CBR/VBR

Video Bitrate

Channel 1 (Panoramic):
H.264: 96 Kbps–32768 Kbps
H.265: 38 Kbps–29362 Kbps
Channel 2 (PTZ):
H.264: 32 Kbps–15872 Kbps
H.265: 12Kbps–9472Kbps

Day/Night

Channel 1 (Panoramic): No
Channel 2 (PTZ): ICR

BLC

Yes

HLC

Yes

WDR

Channel 1 (Panoramic): 120dB
Channel 2 (PTZ): 120dB

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Default Bit Rate with Default Resolution

Channel 1 (Panoramic): 6144 kb/s (5520 × 2700)
Channel 2 (PTZ): 6144 kb/s (2560 × 1440)

Region of Interest (RoI)

Channel 1 (Panoramic) : Yes (4 areas)
Channel 2 (PTZ): Yes (8 areas)

Image Stabilization

Channel 1 (Panoramic): No
Channel 2 (PTZ): No

Defog

Channel 1 (Panoramic): No
Channel 2 (PTZ): Optical defog

Privacy Masking

Channel 1 (Panoramic): 4 areas
Channel 2 (PTZ): 24 areas (8 for each preset)

LDC

Channel 1 (Panoramic): Yes
Channel 2 (PTZ): No

Audio

Audio Compression

PCM; G.711a; G.711Mu; G.726; G.723, G.711a by default

Audio Sampling

8kHz; 16kHz; 32kHz; 48kHz; 64kHz

Alarm

Alarm Event

Channel 1 (Panoramic):
External alarm; No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; voltage detection; motion detection; video tampering; scene changing; audio detection; intensity change; tripwire; intrusion; parking detection; crowd density; traffic congestion; parking upper limit
Channel 2 (PTZ):
Tripwire; intrusion; parking detection; crossing virtual fence, fast moving, abandoned object, missing object, crowd gathering, loitering detection; face recognition; video metadata

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 400M)

Storage

FTP; SFTP; Micro SD card (support max. 512GB); NAS; SMB

Browser

IE: IE11
Chrome
Firefox

Management Software

SmartPSS Lite; DSS

PTZ

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –11° to 90°, auto flip 180°

Manual Speed Control

Pan: 240°/s
Tilt: 100°/s

Telephoto Speed Limit

Yes

Positioning Accuracy

Pan: 0.1°
Tilt: 0.1°

Positioning Accuracy Automatic Calibration

Yes

Remote Lens Reset

Yes

Remote PTZ Reset

Yes

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern

Scan

Power off Memory

Yes

Idle Motion

Preset; Pattern; Tour; Scan

Time Task

Yes

3D Positioning

Yes

PTZ Limit

Yes

Position Display

Yes

Information Display

Yes

Time Display

Yes

PTZ Restart

Yes

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Optical Module Specification

SFP optical module, single mode, single fiber 20 KmTX-1310 nm/RX-1550 nm

Optical Fiber

Optical Fiber Module Type

Gigabit SFP optical module, single mode, single fiber TX-1550 nm/RX-1310 nm

Audio Input

2 channels (terminals)

Audio Output

2 channels (terminals)

Alarm Input

7 channels in: 5mA 3V–5V DC

AlarmOutput

3 channels out: 1,000mA 30V DC/500mA 50V AC

Analog Output

1 channel (CVBS output: BNC)

Power

Operating Voltage

36VDC (±50%)

Power Supply

36VDC

Power Consumption

Basic: 59W (36VDC)
Max. (Basic power consumption + WDR + intelligence on + IR on + PTZ operation): 99 W (36 VDC)

Environment

Operating Temperature

–40 °C to +70 °C (–40 °F to +158 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +70 °C (–40°F to +158°F)

Storage Humidity

≤95%

Protection

IP66

Structure

Casing

Metal + plastic

Product Dimensions

Φ383mm × 462mm (15.08" × Φ18.19")

Packaging Dimensions

500 mm × 500 mm × 658 mm (19.69" × 19.69" × 25.91") (L × W × H)

Net Weight

14.4 kg (31.75 lb)

Gross Weight

20.3 kg (44.75 lb)

Installation

Wall mount; ceiling mount; pole mount

Power Adapter

Included

Lens

Included

Power Output

Others

Calibration

Manual/Auto

Further details

	Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports the ONVIF® standard
	This camera features a resolution of 16 Megapixels!
	Multi-Lens Technology! This camera is equipped with multi-lens 8 panoramic lenses 2.8mm 1 x 5.5-220mm motorized 40x PTZ lens
	Multi-Sensor Technology! This camera features: 4 x 1/1.8" 4MP CMOS panoramic sensors 1 1/1.8" 4MP CMOS PTZ sensor
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	IR LED illuminator with range up to 400 meters! This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
	This camera features Motion function: by connecting it to a recording device having alarm inputs.
	2 Audio Input + 2 Audio Output.
	This camera has 7 inputs + 3 alarm outputs
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	D-WDR (Digital Wide Dynamic Range) for the panoramic camera D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.

	BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.
	3D-DNR is the most advanced version of NOISE REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light.
	Possibility to insert Micro SD up to a maximum of 512Gb - not included
	IP66: Guarantees protection from dust and water jets (rain)
	To operate the camera, a 36V DC power supply is required (not included)
	This product is covered by a 24 month warranty.
