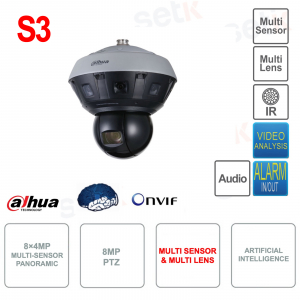

ONVIF® Panoramic and PTZ IP Camera - Multi-lens - Multi-sensor - 8x4MP 2.8mm - PTZ 8MP 45x zoom - AI - S3

-57% New

PSDW83242M-A360-D845L-S3 - Dahua - ONVIF multi-lens and multi-sensor IP PTZ camera - 8 x 4MP panoramic 2.8mm lenses + 1 PTZ 8MP 5.5 mm–248 mm varifocal 45x optical zoom - 1/1.8" 8MP CMOS PTZ sensor - 8 x 1/1.8" 4MP CMOS Panoramic Sensors - Triple Stream - H.265+ - IR 500m - Day/Night(ICR), BLC, HLC, panoramic DWDR, PTZ WDR 120dB, AWB, AGC, 3D-NDR, defog (PTZ), ROI - MicroSD slot - 2in/2out audio - 7in/3out alarm - IP66 - Artificial intelligence: Perimeter, people and vehicle density, Intelligent Search.
S3 version.

Reference: PSDW83242M-A360-D845L-S3

Brand: Dahua

EAN: 6923172581815

FIND INSTALLER

https://www.setik.biz/en/cameras/10564-dahua-psdw83242m-a360-d845l-s3-IP-camera-onvif-panoramic-and-ptz-multi-lens-multi-sensor-8x4mp-28mm-ptz-8mp-45x-zoom-ia-s3.html

€5,529.81

€12,860.02 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Sheet Further Details Download

ONVIF® 8x4MP MULTI-LENS AND MULTI-SENSOR IP CAMERA - 8MP PTZ - AUDIO - ALARM - ARTIFICIAL INTELLIGENCE - DAHUA - PSDW83242M-A360-D845L-S3

PSDW83242M-A360-D845L -S3 - Dahua ONVIF® multi-lens and multi-sensor IP PTZ camera

Equipped with 8 x 4 Megapixel 2.8mm panoramic cameras + 1 x 8MP 5.62-208mm motorized 45X PTZ camera
1/1.8" 8MP PTZ CMOS sensor and 8xPanoramic 1/1.8" 4MP CMOS - Triple Stream - Smart H.265+ - IR PTZ 7xLaser 500m - IR Panoramic 2xLED - Day/Night(ICR), BLC, HLC, panoramic DWDR, PTZ WDR 120dB, AWB, AGC, 3D-NDR, defog (PTZ), ROI, 256GB MicroSD slot (not included) - Artificial Intelligence: Perimeter Protection, vehicle and people density, Intelligent Search - 2in/2out Audio - 7in/3out Alarm - IP66 and IK10 protection - 24 months warranty
S3 Version

Product details

Telecamera IP panoramica 2MP multi-lente e multi-sensore

ONVIF® IP PTZ and Panoramic Camera - Dahua - PSDW83242M-A360-D845L -S3
Resolution 8x4MP (Panoramic) + 8MP (PTZ)
Multi Lens: 1x Motorized PTZ 5.5mm–248mm (45x) + 8x Fixed Panoramic 2.8mm
Multi Sensor : 1x PTZ Sensor 2MP CMOS 1/1.8" 8MP + 8x Panoramic Sensor 4MP CMOS 1/1.8"
Video Compression up to H.265+ Smart Codec
Triple Stream
Day/Night(ICR), BLC / HLC / DWDR(Panoramic) / WDR 120dB (PTZ) / AGC / AWB / Privacy Mask / ROI
Artificial Intelligence , with Perimeter Protection, vehicle and people density, Intelligent Search
PTZ Illuminator 7 Laser up to 500m
Audio: 2 input + 2 output
Alarm: 7 inputs + 3 outputs
MicroSD slot (Max 512GB - not included)
Made of plastic and metal
36V DC power supply (not included)
Dimensions: Φ383mm × 462mm
Operating temperature: –40°C to +70°C
Weight: 14.7Kg
24 month warranty

Technical data sheet

PSDW83242M-A360-D845L -S3

Room

Image Sensor

1/1.8” CMOS

Max. Resolution

11520 (H) × 2700 (V)

ROM

Channel 1 (Panoramic): 8 GB
Channel 2 (PTZ): 8GB

RAM

Channel 1 (Panoramic): 4GB
Channel 2 (PTZ): 4GB

Electronic Shutter Speed

Channel 1 (Panoramic): Auto/Manual 1/3 s-1/100,000 s
Channel 2 (PTZ): Auto/Manual 1/1s-1/300,000s

Scanning Mode

Progressive

Minimum Illumination

Channel 1 (Panoramic):0.001 lux @F1.0(Color, 30 IRE); 0.0001 lux@F1.0 (B/W, 30 IRE)
Channel 2 (PTZ):0.001 lux @F1.5(Color, 30 IRE); 0.0001 lux @F1.5(B/W, 30 IRE); 0 lux (Illuminator on)

Y/N Ratio

>56dB

Illumination Distance

Channel 1 (Panoramic): NA
Channel 2 (PTZ): ≥500 m (1640.42 ft) (Laser)

IR On/Off Control

Auto; manual; zoomprio

IR LED Number

Channel 1 (Panoramic):NA
Channel 2 (PTZ):7(LASER LED); 2(IR LED)

Lens

Lens Type

Channel 1 (Panoramic): Fixed-focal
Channel 2 (PTZ): Motorized vari-focal

Lens Mount

Channel 1 (Panoramic): M16
Channel 2 (PTZ): Module

Focal Length

Channel 1 (Panoramic): 2.8mm
Channel 2 (PTZ): 5.5 mm–248 mm

Max. Openings

Channel 1 (Panoramic): F1.0
Channel 2 (PTZ): F1.5–F5.3

Field of View

Channel 1 (Panoramic): H: 360°; V: 105°
Channel 2 (PTZ): H: 2.02°–64.4°; V: 1.14°–38.37°; D: 2.29°

Close Focus Distance

Channel 1 (Panoramic):1.4 m (4.59 ft)
Channel 2 (PTZ): 0.1 m–5 m (0.33 ft–16.4 ft) (T to W)

Iris Control

Channel 1 (Panoramic): Fixed
Channel 2 (PTZ): Auto

PTZ Dome

Pan/Tilt Range

Pan: 0° to 360° endless
Tilt: –11° to 90°, auto flip 180

Manual Speed Control

Pan PTZ speed: 240°/s, Pan preset speed: 240°/s
Tilt PTZ speed: 100°/s, Tilt preset speed: 100°/s

Preset Speed

Pan: 0.05° Tilt: 0.05°

Remote PTZ Reset

Yes

Presets

300

Tour

8 (up to 32 presets per tour)

Pattern Number

Scan Number

Power off memory

Yes

Idle Motion

Presets/Patterns/Tours/Scans

Time Task

Yes

Three-dimensional positioning

Yes

PTZ Limit

Yes

Position Display

Yes

Information Display

Yes

Time Display

Yes

Intelligent

Intelligence Description

Channel 1 (Panoramic): Perimeter protection, crowd distribution map, vehicle density.
Channel 2 (PTZ): Perimeter protection, video metadata, face recognition

IVS (Perimeter Protection)

Channel 1 (Panoramic): Tripwire; intrusion; parking detection
Channel 2 (PTZ): Tripwire, intrusion, fast moving (the three functions support the classification and accurate detection of vehicle and human); parking detection, loitering detection, and people gathering

Face Recognition

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 10,000 face pictures

Crowd Distribution Map

Crowd map, global crowd density; crowd density in area; people counting in area

Vehicle Density

Vehicle density; Parking upper limit; traffic congestion alarm

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking, calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, helmet.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella.
Face attributes: gender, age, expressions, glasses, face mask and beard

Smart Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Channel 1 (Panoramic):
Main stream: 11520 × 2700@(1-25/30fps)
Sub stream: 2048 × 680@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps)
Channel 2 (PTZ):
Main stream: 3840 × 2160@(1-25/30fps)
Sub stream: 704 × 576@(1-25/30fps)
Third stream: 1920 × 1080@(1-25/30fps)

Stream Capability

3 streams

Resolution

Channel 1 (Panoramic):
Main stream: 11520 × 2700; 8192 × 1800; 7680 × 1680; 5760 × 1264; 4096×900
Sub Stream: 2048×452
Third Stream: 3840 × 832; 2560×560
Channel 2 (PTZ):
Main stream: 3840 × 2160; 2560 × 1440; 1960 × 1080; 1280×960; 1280×720
Sub Stream: 704×576; 352×288
Third Stream: 1920×1080; 1280×960; 1280×720

Bitrate Control

CBR/VBR

Video Bitrate

Channel 1 (Panoramic):
H.264: 127kbps–20736kbps
H.265: 50kbps–12544kbps
Channel 2 (PTZ):
H.264: 32kbps–27740kbps
H.265: 12kbps –16572kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

Channel 1 (Panoramic): DWDR
Channel 2 (PTZ): 120dB

Self-adaptation scenes

Yes

White Balance

Car; Natural; Street lamp; Outdoor; Manual; Regional Custom

Gain Control

Auto; Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Channel 1 (Panoramic): Yes (4 areas)
Channel 2 (PTZ): Yes (8 areas)

Image Stabilization (OIS)

Channel 1 (Panoramic): NA
Channel 2 (PTZ): Optical Image Stabilization

Defog

Channel 1 (Panoramic): NA
Channel 2 (PTZ): Optical defog

Dimensions

Φ383mm × 462mm (15.07" × Φ18.19")

Net Weight

14.7 kg (32.4 lb)

Gross Weight

19.8 kg (43.7 lb)

Further details

	Onvif, the absolute standard for IP cameras. Being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself and can never be used together with recording systems This camera supports the ONVIF® standard
	Multi-Lens Technology! This camera is equipped with multi-lens 8 panoramic lenses 2.8mm Each lens has a resolution of 4MP. 1 PTZ lens with 8MP resolution 5.5mm–248mm, 45x optical zoom.
	Multi-Sensor Technology! This camera features: 8 x 1/1.8" 4MP CMOS panoramic sensors 1 8MP 1/1.8" CMOS PTZ sensor
	Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
	IR illuminator with 7 Lasers for PTZ camera with range up to 500 meters! It also integrates 2 LED illuminators.
	This camera features Motion function: by connecting it to a recording device having alarm inputs.
	2 Audio Input + 2 Audio Output.
	This camera has 7 inputs + 3 alarm outputs
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies.
	ULTRA WDR up to 120dB for PTZ lens WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light.
	D-WDR (Digital Wide Dynamic Range) for the panoramic camera D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast.
	Automatic Gain Control, with the ability to independently adjust sensitivity in particular conditions of use
	BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.
	3D-DNR is the most advanced version of NOISE REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light.
	Possibility to insert Micro SD up to a maximum of 512Gb - not included
	IP66: Guarantees protection from dust and water jets (rain)
	To operate the camera, a 36V DC power supply is required (not included)
	This product is covered by a 24 month warranty.
