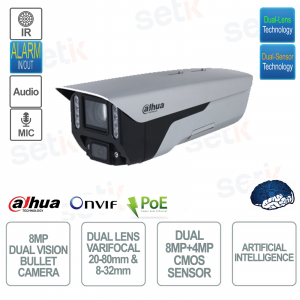

ONVIF POE IP Bullet Camera - Dual Lens & Dual Sensor 8MP+4MP - 20-80mm & 8-32mm Varifocal - AI

Room

Image Sensor

Channel 1: 1/1.2" CMOS
Channel 2: 1/1.8" CMOS

Max. Resolution

Channel 1: 3840 (H) × 2160 (V)
Channel 2: 2688 (H) × 1520 (V)

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

Channel 1:
0.0003lux@F1.1(Color,30IRE)
0 lux (Illuminator on)
Channel 2:
0.0005lux@F1.6(Color,30IRE)
0.0002 lux@F1.6(B/W,30IRE)
0 lux (Illuminator on)

Y/N Ratio

> 56 dB

Illumination Distance

Channel 1: 80 m (262.47 ft) (warm light)
Channel 2: 120 m (393.70 ft) (IR); 80 m (262.47 ft) (warm light)

Illuminator On/Off Control

Auto; Manual

Illuminator Number

Channel 1: 8 (Warm light)
Channel 2: 2 (illuminator with dual light fusion)

Pan/Tilt/Rotation Range

Channel 1: Tilt: ±5°
Channel 2: Tilt: ±15°

Lens

Lens Type

Motorized vari-focal

Lens Mount

Channel 1: CS
Channel 2: Module

Focal Length

Channel 1: 20mm–80mm
Channel 2: 8mm–32mm

Max. Openings

Channel 1: F1.1
Channel 2: F1.6

Field of View

Channel 1: H: 27°–9° ; V: 15°–5°; R: 31°–10°;
Channel 2: H: 42°–15° ; V: 23°–9°; D: 49°–17°

Iris Control

Channel 1: Cars
Channel 2: Cars

Iris Control Type

Channel 1: P-Iris
Channel 2: DC Iris

Close Focus Distance

Channel 1: 5 m–10m (16.40 ft–32.81 ft)
Channel 2: 3 m–5.5 m (9.84 ft–18.04 ft)

Smart Event

IVS

Abandoned object; missing object

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, face mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); optimization time setting

Face Recognition

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.
Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 100,000 face pictures.

People Counting

Tripwire people counting, people counting in area and queue management, generating and exporting reports (day/month/year); 4 rules can be set for tripwire, people counting in area and queue management

Video Metadata

Motor vehicle, non-motor vehicle, face, human body detection; track; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: license plate, vehicle type, vehicle color, vehicle logo and other attributes: seatbelt, smoking calling.
Non-motor vehicle attributes: type, color, number of people, top type and color, hat.
Human body attributes: gender, top/bottom type and color, bag, hat and umbrella. Face attributes: gender, age, expressions, glasses, face mask and beard.

Crowd Distribution Map

Crowd distribution map; global people counting; people counting in area

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Channel 1:
Main Stream: 3840 × 2160@(1-25/30 fps)
Sub stream: 1920 × 1080@(1-25/30 fps)
Third stream: 1920 × 1080@(1-25/30 fps)
Channel 2:
50 Hz
Main stream: 2688 × 1520@(1-25/30 fps)
sub stream: 1920 × 1080@(1-25/30 fps)
third stream: 1920 × 1080@(1-25/30 fps)
*The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.

Stream Capability

3 streams

Resolution

Channel 1: 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280×720)
Channel 2: 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280×720)

Bitrate Control

CBR/VBR

Video Bitrate

Channel 1:
H.264: 32kbps – 16384kbps
H.265: 12kbps – 11776kbps
Channel 2:
H.264: 32kbps – 15872kbps
H.265: 12kbps – 9472kbps

Day/Night

Color/B/W

BLC

Yes

HLC

Yes

WDR

120dB

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Auto;Manual

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

4 areas

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Lighting

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

8 areas

Time Division Exposure

Yes

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723;

Alarm

Alarm Event

All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems

This camera complies with the ONVIF® standard

AI | Artificial Intelligence
This camera features Artificial Intelligence on board
This means that it has a wide range of advanced features such as:

- Perimeter protection : Line crossing, intrusion, fast movement (3 functions support classification and accurate detection of vehicles and humans), parking detection, loitering, wandering
- Face detection Face detection, tracking, priority, snapshot, face emphasis, face exposure, face attribute extraction, 6 attributes and 8 expressions: gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness, confusion), mask, beard. Face Matting setting: face, single thumb photo. 2 snapshot strategies: snapshot priority, recognition. Face angle filter, priority time setting. Up to 5 groups of face libraries management. Single person registration and batch person registration. Face detection and similarity settings. Support maximum contrast in face libraries with 200,000 faces
- People counting : Counts the number of people entering and exiting and transmits the number, displays and outputs daily/monthly annual statistics, No. in area.
- Video Metadata: Support human body, human face, motor and non-motor vehicle capture and attribute extraction
- Smart Search: Work with NVR Smart to perfect the performance of smart search, event extraction and event video fusion

Video Stream - Triple Stream!

This camera supports H.265+ video compression with 3 video streams!

This camera features 8~32mm varifocal lens and 20-80mm varifocal lens!
(ON-BOARD DUAL OPTICS)

Optics Demo Video:

With the SENSOR present, night shots will be clear and in color

Infrared illuminator with approximate maximum range of 120m

This camera also features SMART IR technology.
Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.

Remote visibility on mobile using Dahua DMSS application.

Cloud function with Easy4IP

This camera features VIDEO ANALYSIS (SMART DETECTION):
- Recognition of lost and abandoned objects

It allows you to adapt the lens to night/day vision and the consequent automatic management of the IR illuminator.

The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings.

BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.

3D-NR is the most advanced version of NOIS REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light.

This camera has 2 inputs + 1 audio output (RCA ports)

Present On-board microphone and high quality speaker.

Possibility to Record what happens on MicroSD. (Max 256GB - Not included)

To operate this camera you need a 12V DC power supply (not included)

Supports PoE power supply!

This product is covered by a 24 month warranty.
