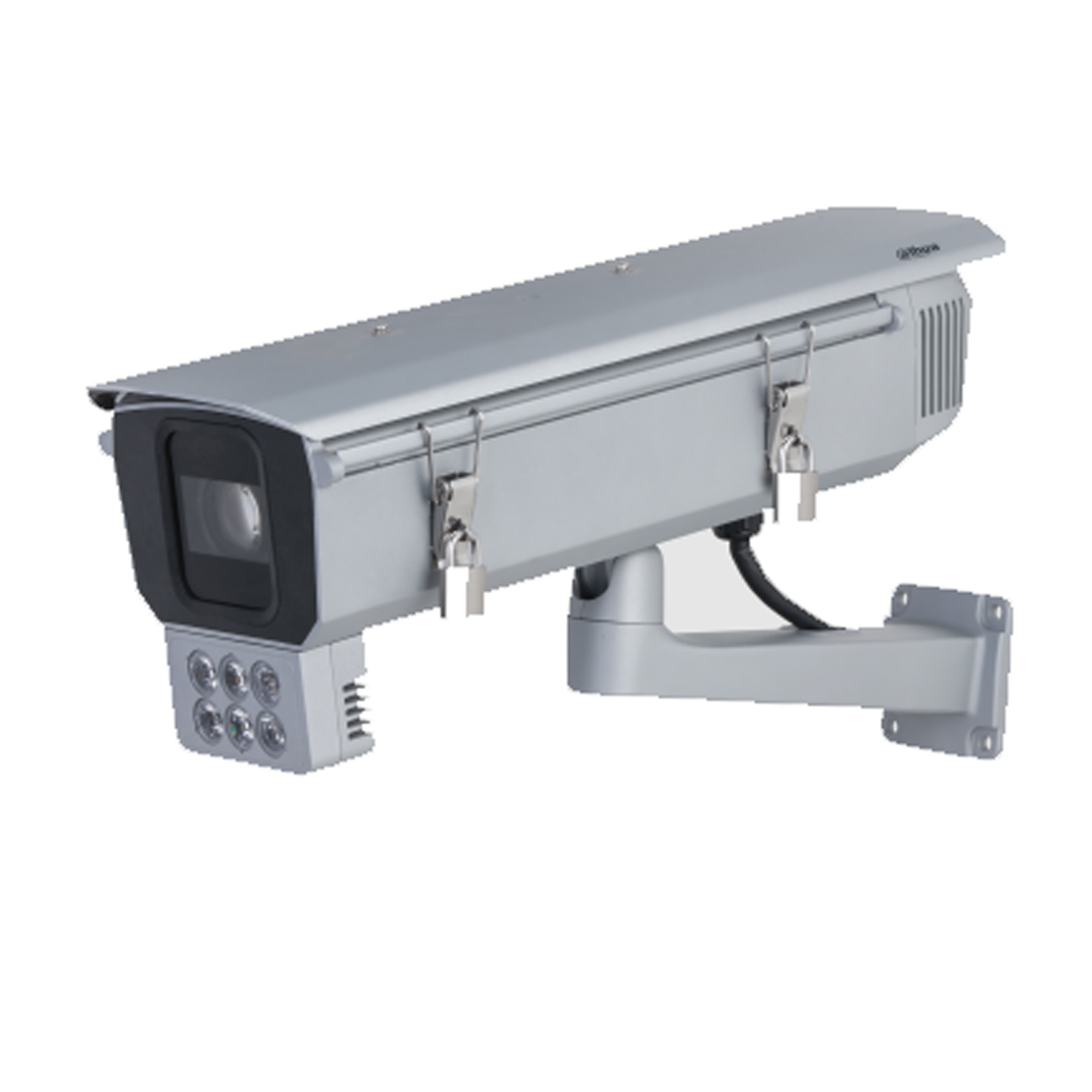

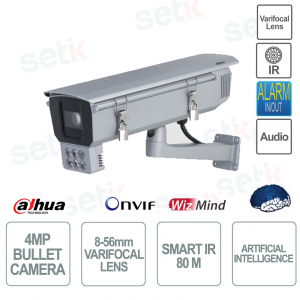

Dahua IPC-HFS8449G-Z7-LED ONVIF Bullet IP Camera - 4MP - With Artificial Intelligence , 8-56mm varifocal lens, 1/1.2" 4MP CMOS sensor, 5 streams , H.265+ compression - Smart IR illumination 80m (warm light module) - Day/Night (ICR), WDR 120dB, BLC, HLC, 3DNR, ROI - Artificial intelligence: IVS (perimeter protection), face detection, facial recognition, people counting, video metadata, smart search - Audio, Alarm, 256GB Micro SD slot, RS485, Cloud P2P, IP67 protection - For outdoor use.
FIND INSTALLER
€1,766.85
€4,108.96 -57%PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
OUTDOOR ONVIF® BULLET IP CAMERA - 4 MEGAPIXEL - 8-56MM - SMART IR 80M - 5 STREAM - AI - VIDEO ANALYSIS - DAHUA - IPC-HFS8449G-Z7-LED
4 Megapixel Resolution - 8-56mm Lens - 1/1.8" 8MP CMOS - Up to H.265+ - Smart IR Illuminator 80m with Warm Light Module - Day/Night(ICR) - WDR 120dB - 3DNR - Artificial Intelligence - 256GB MicroSD slot (not included) - Audio/Alarm - RS-485 - Artificial Intelligence : Perimeter protection, Face detection, People counting, Metadata, Intelligent Search
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.
Product details
- Dahua AI Series ONVIF® Outdoor IP Camera
- Resolution 4 Megapixel 4MP
- 8-56mm motorized varifocal lens
- 1/1.8” image sensor
- Video Compression up to H.265+
- 5 Stream
- Artificial Intelligence: Perimeter Protection, Face Detection, People Counting, Metadata, Smart Search
- Functions: Day/Night(ICR), WDR 120dB , BLC, HLC, 3D DNR, Motion Detection, ROI, EIS, Defog, Image Rotation, Mirror Mode, Privacy Masks
- Smart IR 80m
- 2 audio input / 1 audio output
- 3 alarm inputs / 2 alarm outputs
- IP67 protection (Dust / Immersion) ideal for outdoor use
- RS-485
- MicroSD Slot (Max 256GB - Not Included)
- Power supply 100–240 VAC 0.6 A (not included)
- Operating temperature: –30°C to +60°C (–22°F to +140°F)/Less than 95% RH
- Dimensions: 513.14mm × 177.09mm × 190.7mm
- Weight: 4.8 Kg
- Plastic and metal housing
- 24 month warranty
Technical data sheet
| IPC-HFS8449G-Z7-LED | |||||
|
Technical Specs |
|||||
|
Room |
|||||
|
Image Sensor |
1/1.8" CMOS |
||||
|
Max. Resolution |
2688 (H) × 1520 (V) |
||||
|
ROM |
8 GB |
||||
|
RAM |
4GB |
||||
|
Scanning System |
Progressive |
||||
|
Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
||||
|
Min. Illumination |
0.003Lux@F1.2 (Color,30IRE) |
||||
|
Y/N Ratio |
> 56 dB |
||||
|
Illumination Distance |
80 m (262.47 ft) (warm light) |
||||
|
Illuminator On/Off Control |
Auto; Zoomprio; Manual |
||||
|
Illuminator Number |
6 (Warm light) |
||||
|
Lens |
|||||
|
Lens Type |
Motorized vari-focal |
||||
|
Lens Mount |
Module |
||||
|
Focal Length |
8mm–56mm |
||||
|
Max. Openings |
F1.2 |
||||
|
Field of View |
H: 41°–9° |
||||
|
Iris Type |
Car |
||||
|
Close Focus Distance |
1 m (3.28 ft) |
||||
|
Smart Event |
||
|
IVS |
Abandoned object; missing object |
|
|
Professional, intelligent |
||
|
IVS (Perimeter Protection) |
Tripwire; intrusion; fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection; people gathering; parking detection |
|
|
Face Detection |
Face detection; track; optimization; snapshot; report high quality picture; face enhancement; face exposure; face attribute extract, 6 attributes and 8 expressions: Gender, age, glasses, expressions (anger, calm, happiness, sadness, disgust, surprise, confusion and fear), mask, beard; face matting setting: Face, single inch photo; three snapshot methods: Real-time snapshot, optimization snapshot, quality priority; face angle filter; optimization time setting |
|
|
Face Recognition |
Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes (gender, age, glasses, expressions, mask, and beard) and 8 expressions (angry, sad, disgusted, scared, surprised, calm, happy, confused); face snapshot set as face or one-inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting. |
|
|
People Counting |
Support the people counting of tripwire, people counting in area, and displaying and outputting yearly/monthly/daily reports Support queue management, and displaying and outputting monthly/daily reports Support 4 rules configuration for people counting of tripwire, 4 rules configuration for people counting in area, 4 rules configuration for queue management |
|
|
Video Metadata |
Management Software |
Smart PSS; DSS; DMSS |
|
Mobile Phone |
IOS; Android |
|
|
Cyber Security |
Configuration encryption; trusted execution; Digests; security logs; WSSE; account lockout; syslog; video encryption; 802.1x; IP/MAC filtering; HTTPS; trusted upgrade; trusted boot; firmware encryption; generation and importing of X.509 certification |
|
|
Certifications |
||
|
Certification |
CE-LVD: EN62368-1 |
|
Port |
|
|
RS-485 |
1 (baud rate range: 1200 bps–115200 bps) |
|
Audio Input |
2 channels (RCA port) |
|
Audio Output |
1 channel (RCA port) |
|
Alarm Input |
3 channels in: 5mA 3V–5V DC |
|
AlarmOutput |
2 channels out: 1,000mA 30V DC/500mA 50V AC |
|
Power |
|
|
Power Supply |
100–240VAC 0.6A |
|
Power Consumption |
Basic: 22.5W (220V) |
|
Environment |
|
|
Operating Conditions |
–30°C to +60°C (–22°F to +140°F)/Less than 95% RH |
|
Storage Temperature |
–30 °C to +75 °C (–22 °F to +167 °F) |
|
Protection Grade |
IP67 |
|
Construction |
|
|
Casing |
Metal + Plastic |
|
Dimensions |

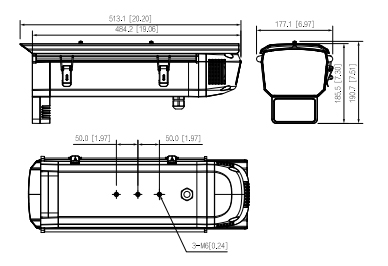

513.14 mm × 177.09 mm × 190.7 mm (20.20" × 6.97" × 7.50") (L × W × H) |
|
Net Weight |
4.8 kg (10.58 lb) |
|
Gross Weight |
6.45 kg (14.22 lb) |
Further details
 |
All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard |
|
|
AI | Artificial Intelligence - Perimeter protection : Line crossing, intrusion, fast movement (3 functions support classification and accurate detection of vehicles and humans), parking detection, loitering, wandering
|
 |
Resolution 4Megapixel |
 |
Video Stream - 5 Streams! This camera supports H.265+ video compression with 5 video streams! |
 |
This camera features 8-56mm varifocal lens! |
 |
Illuminator with an approximate maximum range of 80m!
|
 |
Remote visibility on mobile using Dahua DMSS application. |
 |
This camera features VIDEO ANALYSIS (SMART DETECTION): |
 |
ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.  |
 |
This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 |
This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outside on poles where atmospheric conditions can make the image unstable.  |
 |
DEFOG It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog   |
 |
It allows you to adapt the lens to night/day vision and the consequent automatic management of the IR illuminator. |
 |
The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.  |
 |
The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
 |
BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.  |
 |
3D-NR is the most advanced version of NOIS REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light. |
|
|
This camera has 2 audio inputs + 1 audio outputs |
 |
This camera has 3 inputs + 2 alarm outputs |
 |
1x RS485 |
 |
Possibility to Record what happens on MicroSD. (Max 256GB - Not included) |
 |
Protection level IP67 (Dust / Immersion) |
 |
To operate this camera you need a 12V DC power supply (not included)  |
 |
This product is covered by a 24 month warranty. |
