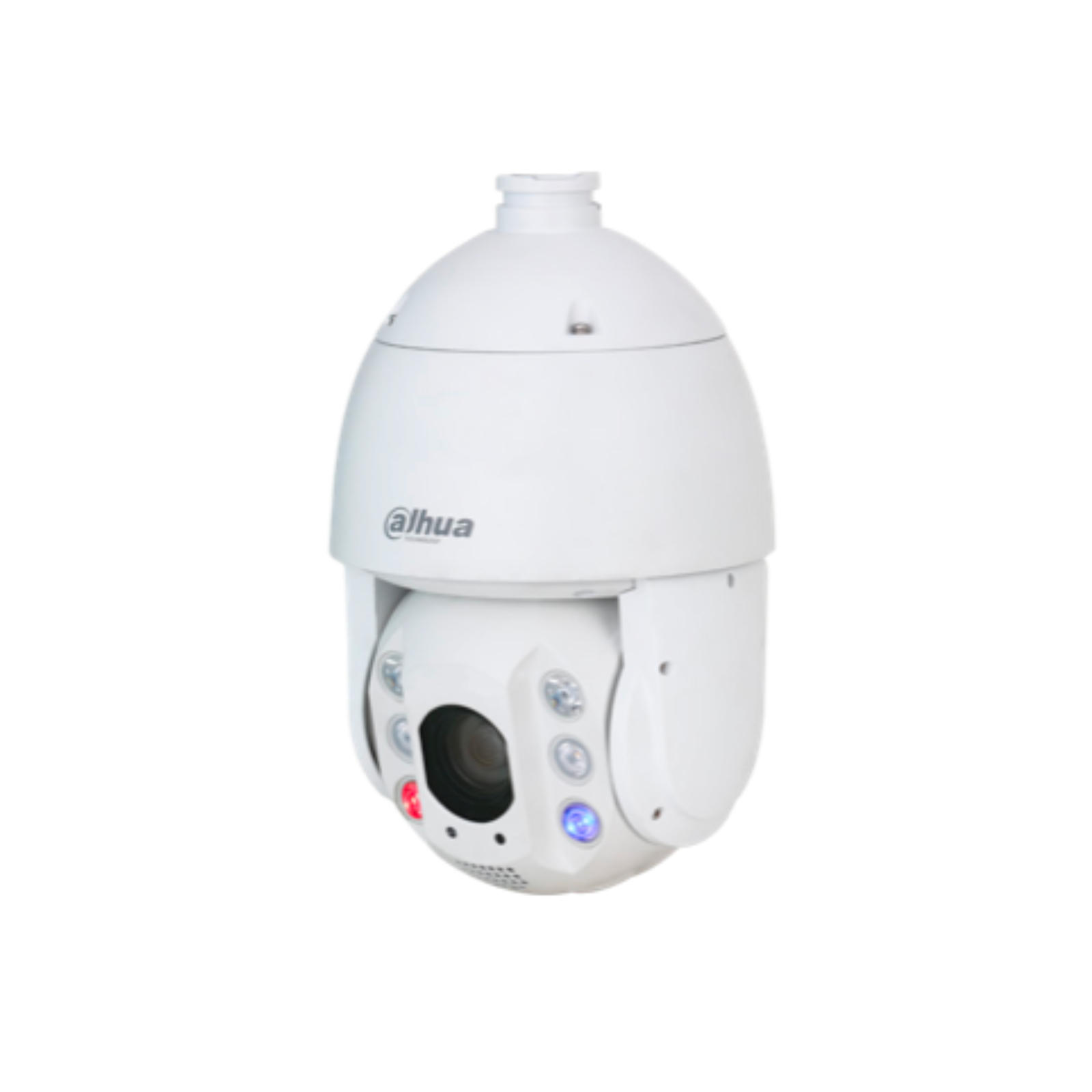

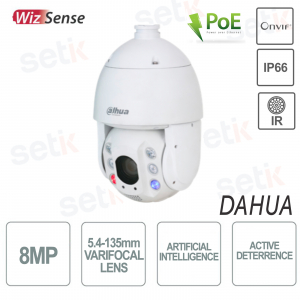

AI Series SD6C3825GA-HNR-A-PV1 Dahua WizSense ONVIF PoE+ outdoor PTZ camera with 8Megapixel resolution, varifocal motorized lens with 25X optical zoom (5.4-135mm), IR LED 150m, 1/1.8" Sony® STARVIS™ CMOS sensor with Starlight Technology, H.265+. Triple Stream, WDR 120dB, artificial intelligence , IVS (perimeter protection), face recognition , auto tracking, active deterrence , video analysis, Audio, Alarm, ROI, EIS, Defog, WDR 120dB, 1in/1out x Audio - 2in/1out x Alarm, MicroSD slot (512GB). IP66 TVS 6000 V protection.
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)
PTZ CAMERA 8MP ONVIF® POE WITH ARTIFICIAL INTELLIGENCE AND ACTIVE DETERRENCE - STARLIGHT
![Made by Setik width= Made by Setik](https://www.setik.biz/img/m/13-prod_large.jpg)
8 Megapixel Resolution - 5.4-135mm Lens ( 25x Zoom) - 1/1.8" Starlight CMOS Sensor
Micro SD Card Slot (512GB) - IP66 Protection - 24 Months Warranty
AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE: |
Product details
![Speed Dome Camera - SD6CE445XA-HNR Telecamera videosorveglianza IP Dome PTZ PoE 4MP Motorizzata](https://cdn.setik.biz/storage/images/Articoli/8258_2285_62_003.jpg)
- ONVIF® Outdoor PoE AI Camera - Dahua
- Resolution 8Megapixel
- 5.4-135mm motorized varifocal lens (25x optical zoom)
- 1/1.8" CMOS sensor with Starlight Technology
- Starlight Technology: Color Night Vision!
- Video Compression up to H.265+
- Triple Stream
- Day/Night(ICR), AWB,AGC,BLC,HLC 2D / 3D-NR, Defog, EIS, WDR (120db)
- Illuminator up to 150 meters .
- Artificial Intelligence: IVS Perimeter Protection - Video Analytics - Active Deterrence - Motion Recognition
- Active deterrence
- 2 alarm inputs and 1 alarm output
- 1 audio input and 1 audio output
- 1 microSD-Card slot (Max 512GB not included)
- IP66 protection; TVS 6000 V
- Dimension: 325.3 mm × Φ202.0 mm (12.81" × Φ7.95") (H × D)
- Weight: 4.6 kg
- Arm included - Power supply NOT included
- 24 month warranty
Technical data sheet
Model | SD6C3825GA-HNR-A-PV1 |
Room | |
Image Sensor | 1/1.8” |
Pixel | 8MP |
Effective Pixel | 3840 (H) × 2160 (V) |
Scanning System | Progressive |
Electronic Shutter Speed | 1/1s~1/30,000s |
Min. Illumination | Color: 0.005 lux@F1.6 B/W: 0.0005 lux@F1.6 0 lux (IR light on) |
ROM | 4 GB |
RAM | 1 GB |
Illumination Distance | 150 m (492.13 ft) (IR) 50 m (164.04 ft) (white light) |
Illuminator On/Off Control | Prio Zoom; Manual; Smart IR; Off |
Illuminator Number | 2 (IR light) 2 (dual light fusion) |
Lens | |
Focal Length | 5.4mm–135mm |
Max Openings | F1.6–F4.0 |
Angle Of View | H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4° |
Optical Zoom | 25x |
Focus Control | Auto/Semi-Auto/Manual |
Iris Control | Auto/Manual |
PTZ | |
Pan/Tilt Range | Pan: 0° to 360° endless Tilt: –20° to +90°, auto flip 180° |
Manual Speed Control | Pan: 0°/s–240°/s Tilt: 0°/s–120°/s |
Preset Speed | Pan: 240°/s Tilt: 120°/s |
Presets | 300 |
Tour | 8 (up to 32 presets per tour) |
Pattern Number | 5 |
Scan Number | 5 |
Power off memory | Yes |
Idle Motion | Pattern;Preset;Scan;Tour |
Intelligence | |
IVS (Perimeter Protection) | Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc. |
Face Detection | Supports face detection, face bounding box, capturing snapshots, uploading face snapshots, enhancing face images, and selecting a preferred image among a group of snapshots. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. The attributes are gender, age, glasses, mask, mustache and expressions. The expressions are angry, sad, hate, scared, surprised, calm, happy and confused. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
SMD | SMD4.0 |
Auto Tracking | Yes |
Patrol Car | It activates the IVS rule when a target is detected and makes the camera link with the PTZ to rotate to the position of the target and patrol based on its presets. |
Active Deterrence | |
Light Warning | Red and blue warning light. They can be configured to flash for 5 to 30 seconds with a high, medium or low frequency. |
Sound Warning | Customizable alarm sound |
Video | |
Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; MJPEG(Sub Stream); Smart H.264+ |
Streaming Capability | 3 Streams |
Resolution | 4K (3840 × 2160); 4M (2560 × 1440); 3M (2304 × 1296); 3M (2048 × 1536); 1080p (1920 × 1080); 960p (1920 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
Frame Rate | Main stream: 8M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) Sub stream 2: D1/VGA/CIF@(1–25/30 fps) Sub stream 2: 1080p/1.3M/720p@(1–25/30 fps) |
Bitrate Control | CBR; VBR |
Bitrate | H264: 128~16384Kbps H265: 51~12288Kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
WDR | 120dB |
HLC | Yes |
White Balance | Car; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
Gain Control | Auto/Manual |
Noise Reduction | 2D NR; 3D NR |
Motion Detection | Yes |
Region of interest | Yes |
Image Stabilization | Electronic (EIS) |
Electronic Defog | Electric |
Digital Zoom | 16x |
Flip | 180° |
Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
Y/N Ratio | ≥55dB |
Audio | |
Compression | PCM; G.711a; G.711Mu; G.726; MPEG2-Layer2; G722.1; G729; G723 |
Network | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | FTP;RTMP;IPv6;Bonjour;IPv4;DNS;RTCP;PPPoE;NTP;RTP;802.1x;HTTPS;SNMP;TCP/IP;DDNS;UPnP;NFS;ICMP;UDP;IGMP;HTTP;SSL;DHCP;SMTP ;Qos;RTSP;ARP |
Interoperability | CGI;SDK;ONVIF (Profile S&G&T) |
Streaming Method | Unicast/Multicast |
User/Host | 20 (total bandwidth: 64M) |
Storage | FTP; Micro SD card (512GB); NAS |
Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
Management Software | DSS; DMSS |
Smart Phone | iOS; Android |
Certifications | |
Certifications | CE-EMC: EN 55032; EN 61000-3-3; EN 61000-3-2; EN 50130-4; EN 55035 CE-LVD: EN 62368-1 FCC: 47 CFR FCC Part15, Subpart B, NSI C63.4 |
Port | |
Audio Input | 1 channel |
Audio Output | 1 channel |
Alarm I/O | 2/1 |
Alarm I/O | 1/1 |
Alarm Linkage | Capture; recording; send email; presets; tours; pattern; alarm digital input; audio; warning light |
Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Power | |
Power Supply | 24 VDC, 2.5 A (± 25%) (included) PoE+ (802.3at) |
Power Consumption | Basic: 13W Max.: 23W (illuminator + red and blue warning light + speaker + PTZ working) |
Environmental | |
Operating Temperature | –40 °C to + 70 °C (–40 °F to + 158 °F) |
Operating Humidity | ≤ 95% |
Ingress Protection | IP66; TVS 6000V lightning proof; surge protection; voltage transient protection |
Structure | |

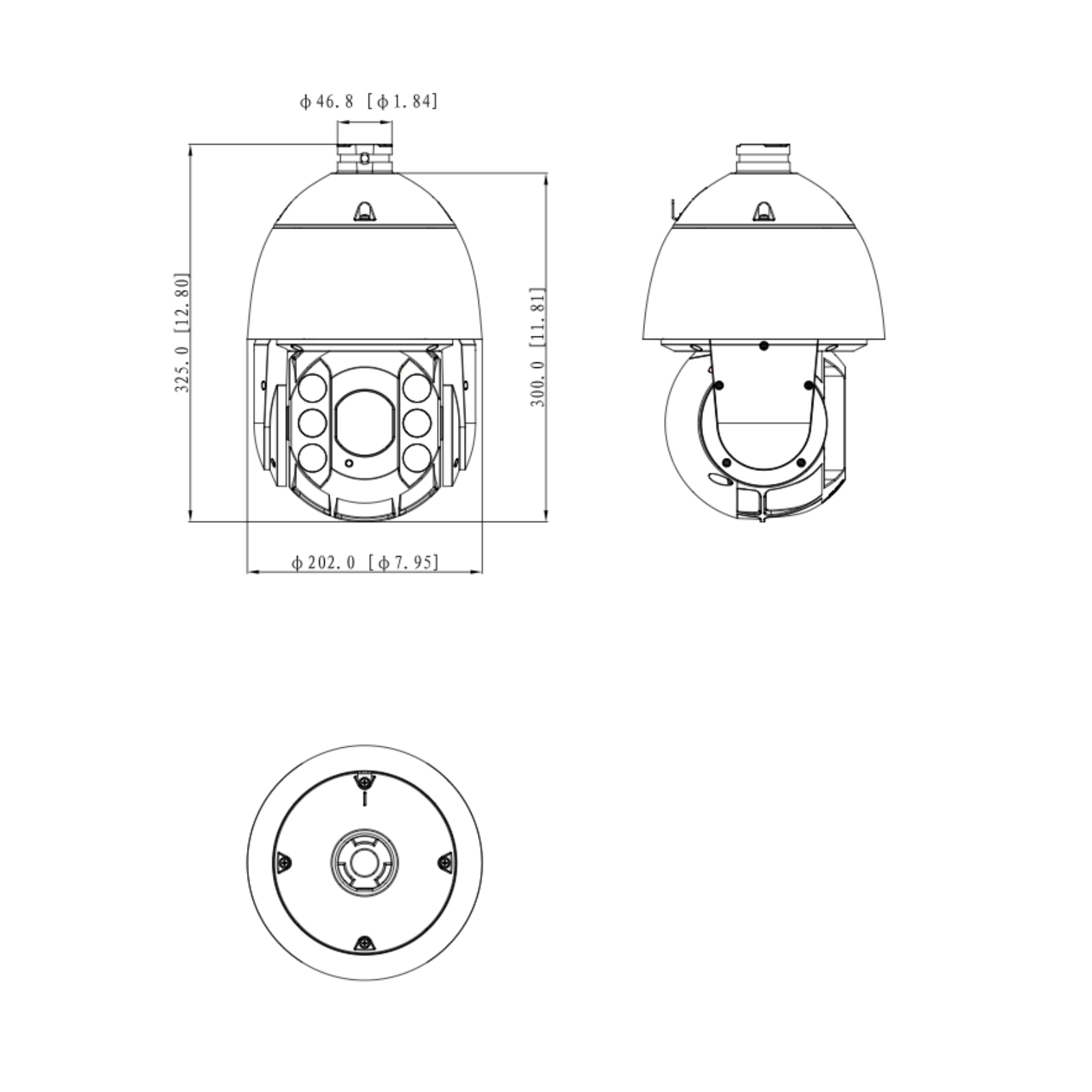

Dimensions | 325.3 mm × Φ202.0 mm (12.81" × Φ7.95") (H × D) |
Net Weight | 4.6 kg (10.14 lb) |
Gross Weight | 9.1 kg (20.06 lb) |
Further details
![]() | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera is ONVIF® compatible |
![]() ![]() | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. PoE is the first generation technology, PoE+ is the latest standard . PoE+ (IEEE 802.3at) (High-PoE) |
AI | Artificial Intelligence - Perimeter protection - Intrusion - Crossing the line - Face recognition - Auto tracking | |
![]() | Active deterrence: Alerts intruders with built-in white light and siren |
![]() | This camera has a resolution of 8Megapixel |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression. | |
![]() | 1/1.8" STARVIS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With the addition of the STARVIS feature we have significant advantages: - Back-illuminated structure with 2.9 µm-square unit pixel - High sensitivity (twice or more times higher than other products on the market) - Increased sensitivity when near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile Interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor, you can get color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. |
![]() | 25x Optical Zoom ( 5.4-135mm) + 16x Digital Zoom |
![]() | Main stream: 8M/4M/3M/1080p/1.3M/720p@(1–25/30 fps) |
![]() | IR LED illuminator with range up to 150 meters! This camera also features SMART IR technology. |
![]() | Generic PTZ Functions: Pan/Tilt Range: Pan: 0°–360° (endless) Tilt: -20°–90° (auto flip 180°) Manual Control Speed: Pan: 0°/s–240°/s Tilt: 0°/s–120°/s Preset Speed: Pan: 240°/s Tilt: 120°/s Presets: 300 Tour: 8 (up to 32 presets per tour) Pattern Number : 5 Scan Number : 5 Speed Adjustment : Support Power-off Memory : Support Idle Motion : Preset/Tour/Pattern/Scanning Protocol : DH-SD Pelco-P/D (auto recognition) |
![]() | This Camera has 2 Inputs and 1 Alarm Output |
![]() | This camera has 1 Audio input + 1 Audio Output |
![]() | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present. ![]() |
![]() | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
![]() | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. ![]() |
![]() | This function allows you to clearly see images taken in particular weather conditions: rain, smoke and fog. ![]() ![]() |
![]() | This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable. ![]() |
![]() | Possibility to insert Micro SD up to a maximum of 512GB (not included) |
![]() | Power supply NOT included in the package ![]() |
![]() | Level of protection from heavy rain and dust in IP parameters. |
![]() | This product is covered by a 24 month warranty. |
