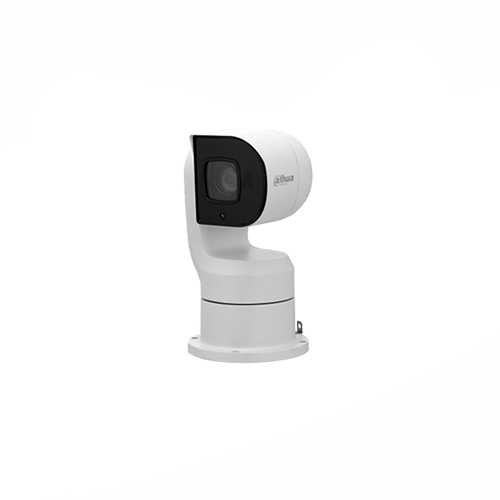

PTZ1A225-HNR-XA Dahua 2 Megapixel ONVIF PoE PTZ outdoor IP camera , varifocal lens with 25X optical zoom , CMOS sensor 1/2.8” with Starlight technology , Compression up to H.265+ , Smart IR up to 150 Meters . Artificial Intelligence, IVS, Motion Detection, Auto-Tracking, Video Metadata , SMD Plus , Quick Pick Day/Night (ICR), WDR 120dB , MicroSD Slot , Audio, Alarm. IP67, TVS
FIND INSTALLER
€943.76
€2,194.78 -57%LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!

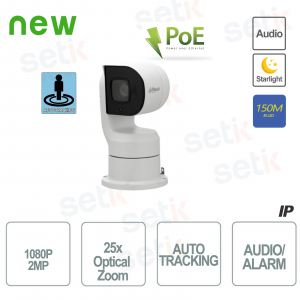

2 MEGAPIXEL PTZ IP CAMERA - 25X OPTICAL ZOOM - VIDEO METADATA - ARTIFICIAL INTELLIGENCE - DAHUA
2Megapixel - CMOS sensor with Starlight technology - H.265+ - 25X optical zoom
IR Illuminator up to 150 meters - IVS - Video Metadata - Motion Detection - Auto Tracking - Audio / Alarm
Micro SD Card Slot (Max. 256GB - Not Included) - IP67 Protection and TVS8000V Lightning Protection - 24 Months Warranty
Product details
- Dahua ONVIF® PTZ PoE outdoor IP camera
- Face Detection
- Artificial Intelligence: Video Metadata - Perimeter Protection - Face Detection
- PTZ: Camera with Pan (horizontal), Tilt (vertical) and Zoom movement
- Resolution 2MP 2 Megapixel
- Image sensor 1/2.8” 2Megapixel CMOS with Starlight technology (Color vision even at night)
- 4.8mm~120mm varifocal lens with 25x optical zoom
- Video Compression up to H.265+
- Triple Stream
- Day/Night(ICR), WDR 120dB
- Motion Detection, ROI, Defog
- PFA Technology: Greater image clarity
- Quality illuminator up to 150 meters .
- IVS (perimeter protection)
- Video Analysis supported (Line Crossing, Intrusion, Abandoned/Lost Objects)
- Smart Functions : Face Detection, Heat Map
- Auto Tracking Function: (Automatic zoom on single, multiple or panoramic scenes)
- Audio: 1 input + 1 output
- Alarm: 2 inputs + 1 output
- 1 microSD-Card slot (Max 256GB)
- IP67 protection (Dust / Immersion) and TVS80000 (Anti-Lightning)
- PoE+ Protocol (802.3at)
- Dimension: 161.0mm × 135.3mm × 291.5mm
- 24 month warranty
Technical data sheet
| Model | PTZ1A225-HNR-GB |
| Room | |
| Image Sensor | 1/2.8" CMOS |
| Pixel | 2MP |
| Effective Pixel | 1920 (H) × 1080 (V) |
| ROM | 4GB EMMC |
| RAM | 1 GB |
| Electronic Shutter Speed | 1/1 s–1/30000 s |
| Scanning System | Progressive |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0.0005 Lux@F1.6 0 Lux (IR light on) |
| Illumination Distance | 150 m (492.13 ft) |
| Illuminator On/Off Control | Zoom Prio/Manual/Off |
| Illuminator Number | 4 IR lights |
| Lens | |
| Focal Length | 4.8mm–120mm |
| Max Openings | F1.6–F3.5 |
| Angle Of View | H: 58.5°–2.8°; V: 33.2°–1.5°; D: 67.3°–3.2° |
| Optical Zoom | 25x |
| Focus Control | Auto/Semi-Auto/Manual |
| Close Focus Distance | 0.1 m–1.5 m (0.33 ft–4.92 ft) |
| Iris Control | Car; manual |
| PTZ | |
| Pan/Tilt Range | Pan: 0°–360° endless Tilt: –90° to +90° auto flip 180° |
| Manual Speed Control | Pan: 0.1°/s–120°/s Tilt: 0.1°/s–75°/s |
| Preset Speed | Pan: 160°/s; |
| Presets | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Pattern | 5 |
| Scan | 5 |
| Power off memory | Yes |
| Idle Motion | Preset/Tour/Pattern/Scanning |
| Artificial Intelligence | |
| Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; optimization; capturing pictures; uploading high-quality snapshots; extracting 12 attributes from vehicles |
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; vehicle/human alarm classification; linkage tracking |
| Face Detection | Supports face detection, face bounding box, optimization, capturing snapshots, enhancing face images, and uploading high-quality face snapshots, and extracts 6 attributes and 8 expressions from face images. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, optimization and quality first. |
| Auto Tracking | Yes |
| SMD | Yes |
| Quick Pick | Yes |
| Video | |
| Video Compression | H.264H; H.264B; Smart H.265+; H.264; H.265; Smart H.264+; MJPEG (Sub Stream) |
| Streaming Capability | 3 Streams |
| Resolution | 1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704 × 576); CIF (352 × 288) |
| Frame Rate | Main stream: 1080P/960P/720P (1–50/60 fps) |
| Bitrate Control | CBR/VBR |
| Bitrate | H.264: 64kbps–10496kbps H.265: 25kbps–6400kbps |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Support |
| WDR | 120dB |
| HLC | Support |
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural light/Street lamp |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D |
| Motion Detection | Support |
| Region of Interest (RoI) | Support |
| Image Stabilization | Electronic (EIS) |
| Defog | Electronic |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; multiple colors available |
| Y/N Ratio | ≥61dB |
| Audio | |
| Compression | G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB2); RTCP; RTMP; ARP |
| Interoperability | CGI;SDK;ONVIF (Profile S&G&T);P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth 64M) |
| Storage | FTP; Micro SD card (512G); NAS |
| Browser | IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions Safari 10 and later versions |
| Management Software | DMS; DSS Pro |
| Smart Phone | iOS; Android |
| Port | |
| Sound In | 1 channel (LINE IN, bare wire) |
| Sound Out | 1 channel (LINE OUT, bare wire) |
| Alarm Linkage | Capture; presets; tours; pattern; SD card records; trigger digital output; electronic map client; send email |
| Alarm Event | Motion/tampering detection; audio detection; network disconnection detection; IP conflict detection; encoder state detection; memory card state detection; memory space detection |
| Alarm I/O | 2/1 |
| Alarm I/O | 1 |
| Power | |
| Power Supply | DC 12V/4A ±10% |
| Power Consumption | Basic: 16W |
| Environment | |
| Operating Temperature | –40°C to +70°C (–40°F to +158°F) |
| Operating Humidity | ≤ 95% |
| Protection | IP67; TVS 8000V lightning proof; surge protection; voltage transient protection |
| Structure | |
| Casing Material | Die cast aluminum: ADC12, spray finishing |

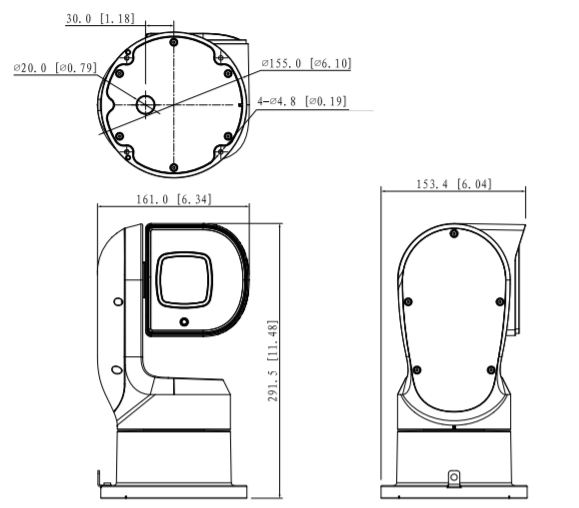

| Dimensions | 161.0 mm × 135.3 mm × 291.5 mm (6.34" × 5.32" × 11.48") |
| Net Weight | 3.6 kg (7.93 lb) |
| Gross Weight | 6.4 kg (14.11 lb) |
Further details
 | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard |
 | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. PoE is the first generation technology, PoE+ is the latest standard . PoE+ (IEEE 802.3at) (High-PoE) |
 | This camera features a resolution of 2Megapixel 1080P |
| Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression.
|
 | 1/2.8" STARVIS sensor with STARLIGHT technology. Low brightness, visibility at 0.0001Lux, color vision even in night mode
With the addition of the STARVIS feature we have significant advantages: - Back-illuminated structure with 2.9 µm-square unit pixel - High sensitivity (twice or more times higher than other products on the market) - Increased sensitivity when near an area covered by infrared light - Supports WDR (multiple exposure WDR, DOL-WDR) - Versatile Interface (CMOS parallel, low voltage LVDS serial, MIPI CSI-2) With the Sony CMOS sensor, you can get color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color |
 | 25x Optical Zoom (4.8mm~120mm) + 16x Digital Zoom |
 | IR LED illuminator with maximum range up to 150 meters! |
 | This camera features AUTO TRACKING function. |
 |
This camera provides VIDEO ANALYSIS:
|
 | This camera also features ADVANCED INTELLIGENT FUNCTIONS: - Face Detection Example image: |
 | It is extremely useful to have Inputs/Outputs in a CCTV system to be able to control relays or activate recording following an event. This 2 Input 1 Output Camera |
 | This camera has 1 input + 1 Audio Output |
 | Remote visibility on mobile via Dahua DMSS application. Compatible with all mobile devices (Symbian OS, Android, Windows Phone, Black Berry, Iphone)
|
 | Day/Night: allows you to adapt the lens to night/day vision, and the relative automatic management of the IR Illuminator, when present.  |
 | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions, filtering the typical infrared frequencies, thus improving image quality. In night conditions the filter is removed as it is necessary to capture the typical IR frequencies. |
 | ULTRA WDR up to 120dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.  |
 | This function allows you to clearly see images taken in particular weather conditions: rain, smoke and fog.   |
 |
This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.  |
 | This camera features the Motion function by connecting it to a recording device with alarm inputs. |
 | Possibility to insert Micro SD up to a maximum of 256Gb |
 | Protection level IP67 (Dust / Immersion) |
 | This product is covered by a 24 month warranty. |
