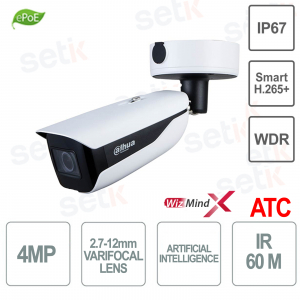

4MP Bullet IP Camera 2.7-12mm Varifocal Lens with ATC Video Analysis - Dahua

-57%

Dahua Bullet Camera IPC-HFW7442H-Z-ATC-X WizMindX ONVIF PoE 4 Megapixel 4MP 2688(H) × 1520(V) Outdoor IP Camera with Artificial Intelligence , 2.7-12mm motorized varifocal lens, 1/1.8" CMOS sensor, 5 streams , compression up to H.265+ . 4 LED 60MT IR illumination, Day/Night(ICR), WDR 140dB, Video Analysis, Perimeter Protection, Face Detection, ANPR, People Counting, Metadata, Smart Search, Audio, Alarm, Micro SD Slot, RS485, Cloud P2P, IP67/IK10 Protection

345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H)

Reference: IPC-HFW7442H-Z-ATC-X

Brand: Dahua

EAN: 6923172591555

FIND INSTALLER

https://www.setik.biz/en/cameras/10542-dahua-ipc-hfw7442h-z-atc-x-ip-bullet-camera-4mp-27-12mm-varifocal-lens-with-dahua-atc-video-analysis.html

€933.79

€2,171.60 -57%

taxes included

ARE YOU A PROFESSIONAL OF THE SECTOR?
REGISTER TO ACCESS YOUR LIST

Quantity

Available in 5 days

PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%

LO HAI TROVATO A MENO?

Scrivici dove e ti sconteremo la differenza fino a fine mese!

Description Product Details Technical Sheet Further Details Download

ONVIF® POE OUTDOOR IP CAMERA - 4 MEGAPIXEL - MOTORIZED - 5 STREAM - ARTIFICIAL INTELLIGENCE - ATC - DAHUA

ONVIF® PoE Outdoor IP Camera - AI Series - Dahua
4 Megapixel Resolution - 2.7 ~ 12mm Motorized Lens - 1/1.8" CMOS - 5 Streams - Up to H.265+
4 LED IR Illuminator 60MT - Day/Night(ICR) - Video Analysis - Artificial Intelligence - MicroSD Slot - Audio/Alarm - WDR 140dB
Artificial Intelligence: Perimeter Protection, Face Detection, People Counting, Metadata, Intelligent Search
Video Analysis : Abandoned / Lost Objects, Object Movement

Tecnologia WizMindX

WIZMIND X TECHNOLOGY:
Dahua WizMind X Series network cameras, equipped with advanced deep learning algorithms, offer a wide range of intelligent functions, ideal for different surveillance needs. These cameras accurately recognize people and vehicles, support facial recognition, DPI detection and intelligent sound, as well as ensure privacy protection and parking management. AI-Powered Image technology and Deeplight night vision effect ensure high-quality images, even with ultra-low flow. The cameras are IP67 and IK10 certified, ensuring resistance to dust, water and vandalism.

Tecnologia Intelligenza Artificiale

AI TECHNOLOGY | ARTIFICIAL INTELLIGENCE:
Artificial intelligence (AI) refers to the branch of science and engineering that produces intelligent machines, especially intelligent computer programs. In the security sector, however, the AI used is that which allows the creation of advanced devices, for environmental analysis.

Product details

Dahua AI Series ONVIF® PoE Outdoor IP Camera
Resolution 4 Megapixel 4MP
2.7~12mm motorized varifocal lens
Image Sensor 1/1.8” CMOS
Video Compression up to H.265+
5 Ultra Low Streams:
Artificial Intelligence: Perimeter protection, face detection, people counting, metadata, intelligent search, parking management.
General Video Analysis: Abandoned/Lost Objects, Object Movement
Functions: Day/Night(ICR), WDR 140dB , BLC, 3D DNR, Motion Detection, ROI, EIS, Defog
Smart IR Illuminator 4 LED 60 Meters
Remote Monitoring: Multiple via web browser Smart PSS, DSS PRO, NVR, IVSS, DMSS
1 audio input / 1 audio output
3 alarm inputs / 2 alarm outputs
IP67 Protection (Dust / Immersion)
IK10 protection (Vandalism) with ATC anti-corrosion
ePoE Protocol
MicroSD Slot (Max 512GB - Not Included)
12V DC power supply (not included)
Dimensions: 345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H)
5 Year Warranty

Technical data sheet

Room

Image Sensor

1/1.8" CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

8 GB

RAM

4 GB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100,000 s

Min. Illumination

0.0005 lux@F1.2 (Color, 30 IRE)
0.0002 lux@F1.2 (B/W, 30 IRE)
0 lux (Illuminator on)

Y/N Ratio

>56dB

Illumination Distance

Up to 60 m (196.85 ft) (IR LED)

Illuminator On/Off Control

Car

Illuminator Number

4 (IR LEDs)

Angle Adjustment

Pan: 0-360°
Tilt: 0-90°
Rotation: 0-360°

Lens

Lens Type

Motorized vari-focal

Lens Mount

φ16

Focal Length

2.7mm–12mm

Max. Openings

F1.2

Field of View

H: 107°–48°; V: 55°–27°; D: 130°–56°

Iris Control

Car

Iris Control Type

P-Iris

Close Focus Distance

1.8 m (5.91 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

60.4 m

(198.16 ft)

24.2 m

(79.39 ft)

12.1 m

(39.70 ft)

6.0 m

(19.69 ft)

128.7 m

(422.24 ft)

51.5 m

(168.96 ft)

25.7 m

(84.32 ft)

12.9 m

(42.32 ft)

DORI (Detect, Observe, Recognize, Identify) is a standard system (EN-62676-4) for defining the ability of a person viewing the video to distinguish persons or objects within a covered area. The numbers in this table do not reflect intelligent function distances. For intelligent function distances, refer to installation and commissioning manual/project design tool.

Smart Event

IVS

Abandoned object; missing object

Intelligence

IVS (Perimeter Protection)

Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection, privacy protection

Face Detection

Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting; privacy protection

Face Recognition

There are two modes: General mode and counting mode.

General mode:

Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting.

privacy protection

Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures.

Counting mode:

Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces.

PPE Detection

Triggers alarms when the detected object matches or does not match all of the configured attributes (workwear, hat, face mask, apron, gloves, shoe covers, boots, seatbelt, safety vest); privacy protection

People Counting

Tripwire people counting, generating and exporting reports (day/week/month/year); people counting in area and queue management, generating and exporting reports (day/week/month); 4 rules can be set for tripwire people counting, people counting in area and queue management; privacy protection

Heat Map

Yes

ANPR

ANPR: ANPR, track, priority, snapshot.

Vehicle attributes: License plate, vehicle type, vehicle color.

Other attributes: Seat belt, smoking, calling.

Support up to 10,000 blocklist records and 10,000 allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h.

Parking Space Management

Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles.

Video Metadata

Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload.
Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling.
Generates flow statistics for people, motor vehicles and non-motor vehicles based on the direction, and exports reports.
Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat.
Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella.
privacy protection.

SmartSearch

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)

Smart Codec

Smart H.265+; Smart H.264+

Video Frame Rate

Main Stream: 2688 × 1520@(1–50/60 fps)
Sub stream: 1920×1080@(1–25/30 fps)

Third stream: 1920 × 1080@(1–25/30 fps)
Fourth stream: 1920 × 1080@(1–25/30 fps)
Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

Stream Capability

5 streams

Resolution

4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)

Bitrate Control

CBR/VBR

Video Bitrate

H.264: 32kbps–10240kbps; H.264: 12kbps–10240kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

140dB

Scene Self-adaptation (SSA)

Yes

White Balance

Car; natural; street lamp; outdoor; manual; regional custom

Gain Control

Car

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (RoI)

Yes (4 areas)

Image Stabilization

Electronic Image Stabilization (EIS)

Smart Lighting

Yes

Defog

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)

Mirror

Yes

Privacy Masking

8 areas

LDC

Yes

Time Division Exposure

Yes

Audio

Audio Compression

G.711a; G.711Mu; PCM; G.726; G.723

Alarm

Alarm Event

No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; fast moving; abandoned object; missingobject; loitering detection; people gathering; parking detection; parking space management; scene changing; audio detection; defocus detection; external alarm; face detection; face recognition; video metadata; ANPR; people counting in area; stay alarm; people counting; people number error detection; people stay detection; security exception; PPE detection

Network

Network Port

RJ-45 (10/100/1000 Base-T)

SDK and API

Yes

Network Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI

User/Host

20 (Total bandwidth: 340M)

Storage

FTP;SFTP; Micro SD card (support max. 512GB); NAS

Browser

IE: IE11 and later; Chrome: Chrome 88.0.4324.190 and later; Firefox: Firefox 47.0.2 and later;

Management Software

SmartPSS Lite; DSS; DMSS

Mobile Client

iOS; Android

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Certification

Certifications

CE-LVD: EN62368-1;
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU;
FCC: 47 CFR FCC Part 15, Subpart B;
UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14;
UL 50E NEMA Type 4X

Port

RS-485

1 (baud rate range:1200 bps–115200 bps)

Audio Input

1 channel (RCA port)

Audio Output

1 channel (RCA port)

Alarm Input

3 channels in: wet contact, 5 mA 3–5 VDC

AlarmOutput

2 channels out: dry contact, 1,000 mA 30 VDC/500 mA 50 VAC

Analog Output

1 channel (CVBS output: BNC)

Power Output

12 VDC power output, max. current 165 mA, peak current 700 mA

Power

Power Supply

12 VDC/24 VAC/PoE+ (802.3at)/ePoE

Power Consumption

Basic: 7.3W (12VDC); 10.2W (24VAC); 10.6W (PoE)
Max. (ICR switch + IR intensity): 18.2 W (12 VDC); 24.2W (24VAC); 24.3W (PoE)
Heating: 3W (12VDC); 4.6W (24VAC); 5.47W (PoE)

Environment

Operating Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Operating Humidity

≤95%

Storage Temperature

–40 °C to +65 °C (–40 °F to +149 °F)

Storage Humidity

10–95%

Protection

IP67; IK10; Anti-Corrosion Protection (optional)

Structure

Casing Material

Metal + plastic

Product Dimensions

345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H)

Net Weight

1.65 kg (3.64 lb)

Gross Weight

2.73 kg (6.02 lb)

Further details

	All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera complies with the ONVIF® standard
	Dahua's self-designed ePoE technology adopts advanced 2D-PAM3 modulation from physical layer and realizes full duplex transmission over 800 meters at the speed of 10Mbps, or 300 meters at the speed of 100Mbps via Cat 5 or coaxial cable. Dahua ePoE technology provides a new way to realize long-distance transmission between IP camera and network switch. It enables more flexible surveillance system design, improves reliability, and saves construction and wiring costs.
	Dahua ANPR cameras offer a full range of license plate recognition functions. They integrate an algorithm that detects and captures license plate numbers and stores the details in a database Clear registration of license plate numbers Database registration Trigger events inc. barrier control Integration with Dahua NVR Snapshot support on SD Card PoE Easy installation and use How and where can it be used? A Dahua ANPR camera is suitable for various types of areas, including parking lot entrances, barrier-controlled areas or lane monitoring. The camera can acquire license plates up to a speed of 25 miles per hour ( 40km/h ) Entrances with gates or barriers Parking management Safety Bus lane monitoring Oil stations
	AI \| Artificial Intelligence This camera features Artificial Intelligence on board This means that it has a wide range of advanced features such as: - Perimeter protection : Line crossing, intrusion, fast movement (3 functions support classification and accurate detection of vehicles and humans), parking detection, loitering, wandering - Face detection Face detection, tracking, priority, snapshot, face emphasis, face exposure, face attribute extraction, 6 attributes and 8 expressions: gender, age, glasses, expressions (anger, sadness, disgust, fear, surprise, calm, happiness, confusion), mask, beard. Face Matting setting: face, single thumb photo. 2 snapshot strategies: snapshot priority, recognition. Face angle filter, priority time setting. Up to 5 groups of face libraries management. Single person registration and batch person registration. Face detection and similarity settings. Support maximum contrast in face libraries with 200,000 faces - People counting : Counts the number of people entering and exiting and transmits the number, displays and outputs daily/monthly annual statistics, No. in area. - Video Metadata: Support human body, human face, motor and non-motor vehicle capture and attribute extraction - Smart Search: Work with NVR Smart to perfect the performance of smart search, event extraction and event video fusion
	Video Stream - 5 Streams! This camera supports H.265/H.264 video compression with 5 video streams!
	This camera features a 2.7-12mm varifocal lens with motorized zoom. Optics Demo Video:
	1/1.8" CMOS sensor
	Infrared illuminator with 4 LEDs and approximate maximum range of 60m This camera also features SMART IR technology. Through this technology, the light emitted by the LEDs is adapted depending on the object being framed.
	Remote visibility on mobile using Dahua DMSS application.
	Cloud function with Easy4IP
	This camera features VIDEO ANALYSIS (SMART DETECTION): - Recognition of lost and abandoned objects - Movement of Objects
	ULTRA WDR up to 140dB WDR (Wide Dynamic Range): This is the professional solution when you need to work in high light/shadow contrast conditions. It is essential when shooting from inside to outside, license plates, shadowed areas or any situation where there is no homogeneity of light. The higher the value in db, the greater the camera's ability to handle the strong difference in backlighting present. Common WDRs usually reach 80db, the human eye is able to recognize a difference of up to 100db. This model reaches up to 120db, managing very strong levels of contrast.
	This camera has ROI function. Images from IP cameras are “compressed”, so the quality is set during recording. Especially on cameras with very high resolution, it is often necessary to reduce the quality in order to ensure a reduced bandwidth occupation and record a greater number of days or cameras. The ROI allows you to define areas where you can set a higher quality (for example a door, the area where the license plate usually passes, an exit, etc.). In that area I can set a higher quality , thus ensuring a higher definition of the image.
	This camera features EIS function. The EIS (Image Stabilizer) is especially useful when the camera is not positioned in a fixed place (ships, vehicles, etc.) or outdoors on poles where atmospheric conditions can make the image unstable.
	DEFOG It allows you to clearly see images taken in particular weather conditions: rain, smoke and fog
	It allows you to adapt the lens to night/day vision and the consequent automatic management of the IR illuminator.
	The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies.
	BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations.
	3D-NR is the most advanced version of NOIS REDUCTION management. It allows still images in low light and in motion. It is currently the most powerful solution to obtain maximum results in low light.
	This camera has 1 audio input + 1 audio output
	This camera has 3 inputs + 2 alarm outputs
	1x RS485
	Possibility to Record what happens on MicroSD. (Max 512GB - Not included)
	Protection level IP67 (Dust / Immersion)
	IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there are risks of vandalism with anti-corrosion
	To operate this camera you need a 12V DC power supply (not included)
	This product is covered by a 5 Year Warranty
