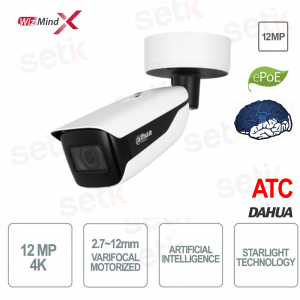

Wizmind X Dahua IPC-HFW71242H-Z-ATC-X Bullet 12 Megapixel 12 MP PoE ONVIF Outdoor IP Camera 1/1.7" CMOS with Starlight Technology and 2.7-12mm motorized lens. H.265+ , 4 LED 60M Smart IR illuminator , Day/Night (ICR), WDR - Digital , Artificial Intelligence, Video Analysis , People Counting, Face Detection, Perimeter Protection, ANPR, Intelligent Search , Audio, Alarm, MicroSD Slot, IP67, IK10 with ATC Anti-Corrosion.
PRODUCT NOT AVAILABLE, DISCOUNT NOW 3%
LO HAI TROVATO A MENO?
Scrivici dove e ti sconteremo la differenza fino a fine mese!
![meno](https://cdn.setik.biz/storage/images/site/Dahua_Logo.png)
![wizzmindx-bunner.jpg](https://cdn.setik.biz/storage/images/Articoli/wizzmindx%20bunner.jpg)
DAHUA 12 MEGAPIXEL MOTORIZED ONVIF POE OUTDOOR IP CAMERA - WIZMIND X - STARLIGHT - VIDEO ANALYSIS - ARTIFICIAL INTELLIGENCE - ATC
![Dahua Prodotto Dahua](https://www.setik.biz/img/m/13-prod_large.jpg)
12Megapixel Resolution - 2.7-12mm Motorized Lens - 1/1.7" Starlight CMOS - H.265+ - Artificial Intelligence and Video Analysis
4 LED IR Illuminator 60M - Day/Night(ICR) - DWDR - Audio/Alarm - MicroSD Slot (512 GB ~ Not Included)
WIZMIND X TECHNOLOGY: |
Product details
![IPC-HFW71242H-Z Telecamera IP Dahua 12MP IVS WDR Audio Allarme Slot microsd ePOE](/storage/images/Articoli/IPC-HFW71242H-Z_SMALL.jpg)
- Outdoor ONVIF® ePoE IP camera - Dahua
- Resolution 12Megapixel 12 MP
- Wizmind X
- 2.7-12mm lens with motorized zoom
- 1/1.7” progressive CMOS image sensor with Starlight Technology
- Starlight Technology: Color Night Vision
- Video Compression up to H.265+
- Quadruple stream
- Digital WDR , Day/Night(ICR), 3DNR,AWB,AGC,BLC
- Video Analysis Abandoned Object, Moving Object
- Advanced Intelligent Functions : People counting, face detection, perimeter protection, ANPR, smart search
- Smart IR illuminator 4 LEDs 60M
- Remote viewing with Dahua DMSS application
- Cloud P2P with Lechange application (formerly Easy4ip)
- Alarm : 3 input + 2 output
- Audio : 1 input + 1 output
- MicroSD slot (Max 512GB - not included )
- IP67 Protection (Dust/Immersion) - Indoor/Outdoor
- IK10 protection (Vandalism) with ATC anti-corrosion
- Dimensions: 345.6mm × 134.2mm × 135.1mm
- Power supply 12V DC ( Power supply NOT included )
- Metal + Plastic
- 24 month warranty
Technical data sheet
Model | IPC-HFW71242H-Z-ATC-X |
Room | |
Image Sensor | 1/1.7" CMOS |
Max. Resolution | 4000 (H) × 3000 (V) |
ROM | 8 GB |
RAM | 4 GB |
Scanning System | Progressive |
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
Min. Illumination | 0.0009 lux@F1.6 (Color, 30 IRE) 0.0005 lux@F1.6 (B/W,30 IRE) 0 lux (Illuminator on) |
Y/N Ratio | >56dB |
Illumination Distance | 60 m (196.85 ft) (IR) |
Illuminator On/Off Against | Car |
Illuminator Number | 4 (IR LEDs) |
Angle Adjustment | Pan: 0-355° Tilt: 0-90° Rotation: 0-360° |
Lens | |
Lens Type | Motorized Vari-focal |
Mount Type | φ14 |
Focal Length | 2.7mm–12mm |
Max Openings | F1.6 |
Field Of view | H: 106°–45°; V: 77°–34°; D: 140°–56° |
Iris Type | Car |
Iris Control Type | P-Iris |
Close Focus Distance | 1.8 m (5.91 ft) |
Smart event | |
General IVS Analytics | Abandoned object; missing object |
Intelligent | |
IVS (Perimeter Protection) | Intrusion, tripwire, fast moving (the three functions support the classification and accurate detection of vehicle and human); loitering detection, people gathering, and parking detection |
Face Detection | Face detection; track; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot); face angle filter; optimization time setting. |
Face Recognition | There are two modes: General mode and counting mode. General mode: Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face exposure; face extraction attributes including 6 attributes and 8 expressions; face snapshot set as face or one inch photo; snapshot strategies (recognition priority and optimization snapshot); face angle filter; optimization time setting. Supports adding 5 group face databases; registering person one by one or in batches; setting face similarity; and supports face comparison with the face database containing up to 200,000 face pictures. Counting mode: Offers advanced customer counter, filters out specified faces from the face database, and exports reports both before and after removing duplicate faces. |
People Counting | Tripwire people counting and people counting in area, generating and exporting reports (day/month/year); queue management, generating and exporting reports (day/month); 4 rules can be set for tripwire, people counting in area and queue management |
PPE Detection | Triggers alarms when the detected object matches or does not match all of the configured attributes (helmets, hats, uniforms, masks, gloves, shoe covers, shoes, safety vests, seatbelts) |
ANPR | ANPR: ANPR, track, priority, snapshot. Vehicle attributes: License plate, vehicle type, vehicle color. Other attributes: Seat belt, smoking, calling. Support up to 10,000 blocklist and allowlist records. The camera can recognize plate numbers of vehicles moving at speeds of up to 60km/h. |
Parking Space Management | Parking Space Management: Manage outdoor and planned parking lots; manage parking spaces in multiple areas; display the total number of parking spaces and parking spaces that are available; trigger alarms based on a predefined number of vehicles. |
Video Metadata | Motor vehicle, non-motor vehicle, face, and human body detection; snapshot; snapshot optimization; optimal face snapshot upload. Motor vehicle attributes: License plate, vehicle type, vehicle color, vehicle logo, seatbelt, smoking, and calling. Generates flow statistics for people, motor vehicles and non-motor vehicles based on the direction, and exports reports. Non-motor vehicle attributes: Type, vehicle color, number of people, top type and color, and hat. Human body attributes: Top and bottom type and color, bag, hat, gender and umbrella |
Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Video | |
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
Smart Codec | Smart H.265+; Smart H.264+ |
Video Frame Rate | Main stream: 4000 × 3000@(1–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) Fourth stream: 1920 × 1080@(1–25/30 fps) Fifth stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity. |
Stream Capability | 5 streams |
Resolution | 12M (4000×3000); 8M (3840 × 2160); 6M (3072 × 2048); 5M (3072 × 1728); 5M (2592 × 1944); 4M (2688 × 1520); 3M (2048 × 1536); 3M (2304 × 1296) 1080p (1920 × 1080); 1.3M (1280×960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
Bitrate Control | CBR/VBR |
Video Bitrate | H.264: 32kbps–16384kbps |
Day/Night | Auto(ICR)/Color/B/W |
BLC | Yes |
HLC | Yes |
WDR | DWDR |
Scene Self-adaptation (SSA) | Yes |
White Balance | Car; natural; street lamp; outdoor; manual; regional custom |
Gain Control | Car |
Noise Reduction | 3D DNR |
Motion Detection | OFF/ON (4 areas, rectangular) |
Region of Interest (RoI) | Yes (4 areas) |
Electronic Image Stabilization(EIS) | Electronic Image Stabilization (EIS) |
Smart IR | Yes |
Defog | Yes |
Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower) |
Mirror | Yes |
Privacy Masking | 8 areas |
Audio | |
Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
Network | |
Network Port | RJ-45 (10/100/1000 Base-T) |
SDK and API | Yes |
Network Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP; P2P |
Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI |
User/Host | 20 (Total bandwidth: 340M) |
Storage | FTP; SFTP; Micro SD card (support max. 512GB); NAS |
Browser | IE: IE11 and later Chrome: Chrome 88.0.4324.190 and later Firefox: Firefox 47.0.2 and later |
Management Software | SmartPSS Lite; DSS; DMSS |
Mobile Client | iOS; Android |
Cyber Security | Video encryption; firmware encryption; configuration encryption; Digests; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
Certifications | |
Certifications | CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 UL 50E NEMA Type 4X (optional) |
Port | |
RS-485 | 1 (baud rate range:1200 bps–115200 bps) |
Audio IN/OUT | 1/1 (RCA Port) |
Alarm IN/OUT | 3 channel In: 5mA 5V DC 2 channel |
Analog Output | 1 channel (CVBS output: BNC) |
Power | |
Power Supply | 12 VDC/24 VAC/PoE+ (802.3at)/ePoE |
Power Consumption | Basic: 7.3W (12VDC); 10.2W (24VAC); 10.6 W (PoE) Max. (ICR switch + IR intensity): 18.2 W (12 VDC); 24.2W (24VAC); 24.3 W (PoE) Heating: 3 W (12 VDC); 4.6W (24VAC); 5.47W (PoE) |
Environment | |
Operating Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
Storage Temperature | ≤95% |
Storage Temperature | –40 °C to +65 °C (–40 °F to +149 °F) |
Ingress Protection | IP67; IK10; Anti-Corrosion Protection (optional) |
Structure | |
Casing | Metal + plastic |
Dimensions | 345.6 mm × 134.2 mm × 135.1 mm (13.61" × 5.28" × 5.32") (L × W × H) |
Net Weight | 1.65 kg |
Gross Weight | 2.73 kg |
Further details
![]() | All Onvif , the absolute standard for IP cameras, being Onvif guarantees compatibility with any modern recording system. NOT being Onvif, means having a camera that is an end in itself that can never be used together with recording systems This camera supports ONVIF standard |
![]() | The advantage of a PoE camera is clear, it can be powered with the same cable with which it communicates without carrying additional power cables and without having to install a separate power system, a PoE camera guarantees constant voltages and simple installation. |
![]() | This camera has a resolution of up to 12 Megapixels |
![]() | New ULTRA HD 4K Technology! Resolution even higher than FULL-HD! More detail available, greater sense of depth and realism. |
1/1.7" CMOS sensor with STARLIGHT technology. Low brightness, color vision even in night mode With this CMOS sensor, it is possible to have color shots even in night mode. Normally, when entering night mode, the color vision changes to black/white. With the SENSOR present, night shots will be clear and in color | |
Smart H.265+ Smart H.265+ is the optimized implementation of H.265 codec that uses scene-adaptive coding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ greatly reduces bit rate and storage requirements compared to standard H.265 compression. | |
![]() | This camera features a 2.7-12mm varifocal lens with motorized zoom. Video Example: |
![]() | Infrared illuminator with approximate maximum range of 60m |
![]() | Remote visibility on mobile using Dahua DMSS application. |
![]() | Cloud function with Lechange (formerly Easy4IP) |
![]() | This camera features VIDEO ANALYSIS (SMART DETECTION): - Abandoned / Lost objects |
![]() | This camera also features ADVANCED INTELLIGENT FUNCTIONS: - Face Detection Example image: |
![]() | D-WDR (Digital Wide Dynamic Range) is the software solution of the most powerful WDR integrated in the DSP, exactly as happens for the digital zoom compared to the Optical Zoom, it is a software simulation of emulation of the WDR technology, however extremely useful in circumstances of strong contrast. ![]() |
![]() | This camera has 1 Audio Input + 1 Audio Output |
![]() | This camera has 3 Alarm Input + 2 Alarm Output |
![]() | It allows you to adapt the lens to night/day vision and the consequent automatic management of the IR illuminator. |
![]() | The IR CUT FILTER is a mechanical filter that allows correct viewing of images in daytime viewing conditions. It filters the typical infrared frequencies, thus improving image quality. In nighttime conditions, the filter is removed as it is necessary to capture the typical IR frequencies. ![]() |
![]() | The AGC is an integrated signal amplifier that allows vision even in critical conditions. It is automatic and does not require specific settings. |
![]() | BLC (Back Light Compensation): is one of the 3 possible steps in the management of images with contrast, typical situations are: entrances or exits from parking lots, license plates, particular lights, entrances with shots from the inside towards the outside, etc. Light compensation is one of the most complex operations possible, the BLC function allows a fair adaptation to these situations. ![]() |
![]() | Protection level IP67 (Dust / Immersion) |
![]() | IK 10 is the highest level of protection from direct damage. This allows the camera to be used even if there are risks of vandalism with ATC anti-corrosion |
![]() | 24 AC power supply not included ![]() |
![]() | Possibility to insert Micro SD up to a maximum of 512Gb - not included |
![]() | This product is covered by a 24 month warranty. |
